Hubbell Building & Automation
HUBBELL HBL21415B H/LOCK PLUG 3P4W 30A 600V
SKU: #141956
Part: #HBL21415B
UPC: 783585017273
Hubbell Building & Automation
HUBBELL HBL21415B H/LOCK PLUG 3P4W 30A 600V
SKU: #141956
Part: #HBL21415B
UPC: 783585017273
Description

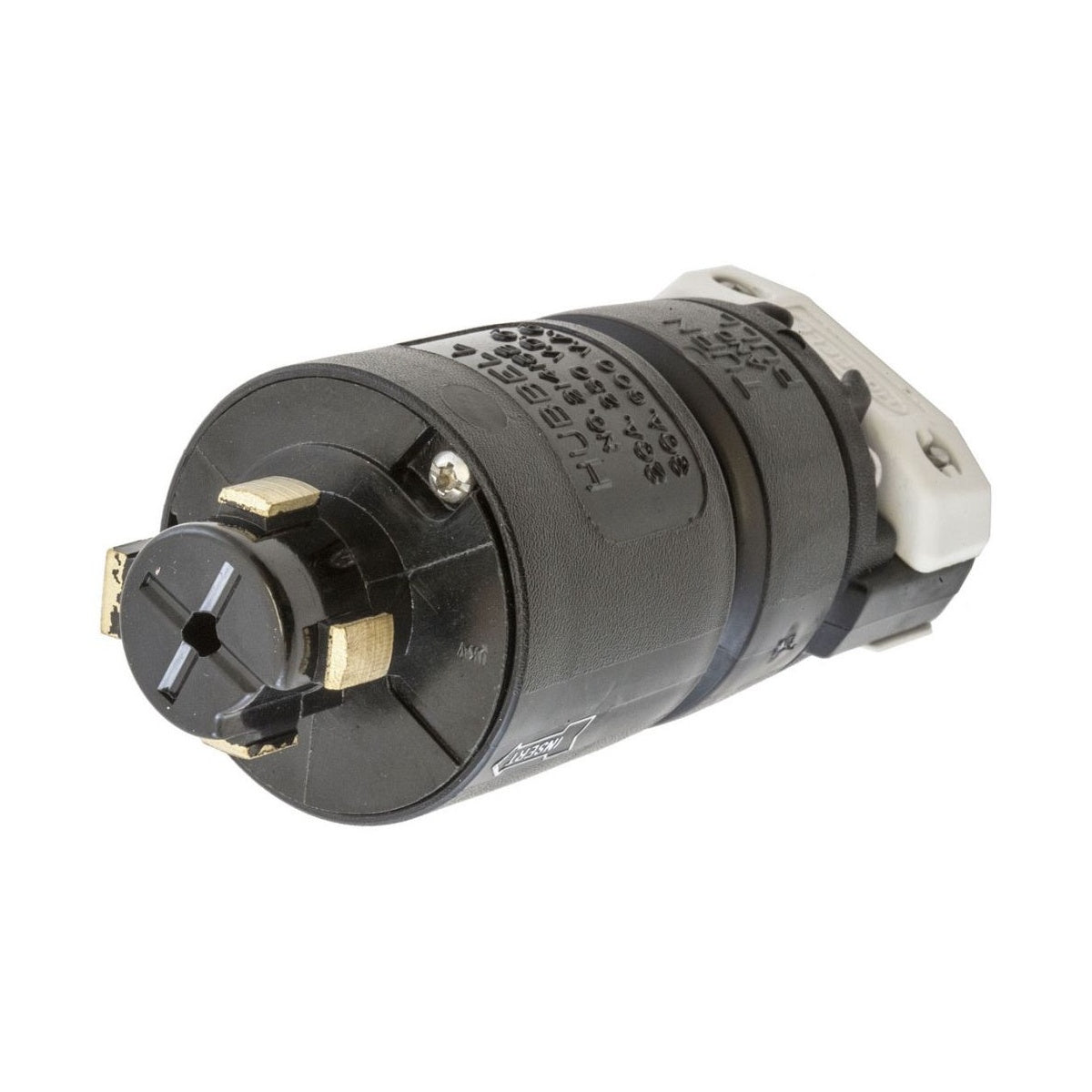

HUBBELL HBL21415B H/LOCK PLUG 3P4W 30A 600V - Industrial Electrical Connector
The HUBBELL HBL21415B is a heavy-duty industrial-grade twist-lock plug designed for secure and reliable electrical connections in demanding environments. It is suitable for use by electrical distributors and switchgear suppliers requiring robust wiring solutions. The plug supports 3-pole, 4-wire configurations with an amperage rating of 20/30 amps and voltage rating of 600 volts AC, making it ideal for indoor dry applications unless additional protection is provided.
Specifications
- Application: Heavy Duty Industrial
- Amperage Rating: 20/30 A
- Voltage Rating: 600 V AC
- Number of Poles: 3-Pole
- Number of Wires: 4-Wire
- Material: Nylon
- Mounting: Cord Mounted
- Cord Type: All Portable
- Connection: Pressure Terminal Screws
- NEMA Rating: Non-NEMA
- Environmental Conditions: Indoor Dry unless protected by additional means
- Product Weight: 0.8 lbs
- Manufacturer Part #: HBL21415B
- UPC: 783585017273
Features
- Black nylon housing with thermoplastic interior for durability and electrical insulation
- Cord diameter compatibility: 0.700" to 1.200" (17.78 mm to 30.5 mm)
- Designed for use with stranded copper conductors, #10 AWG to #6 AWG
- Pressure terminal screws ensure secure conductor connections
- Twist-lock design for secure mating and vibration resistance
- Installation by qualified electricians recommended following national and local electrical codes
