Description

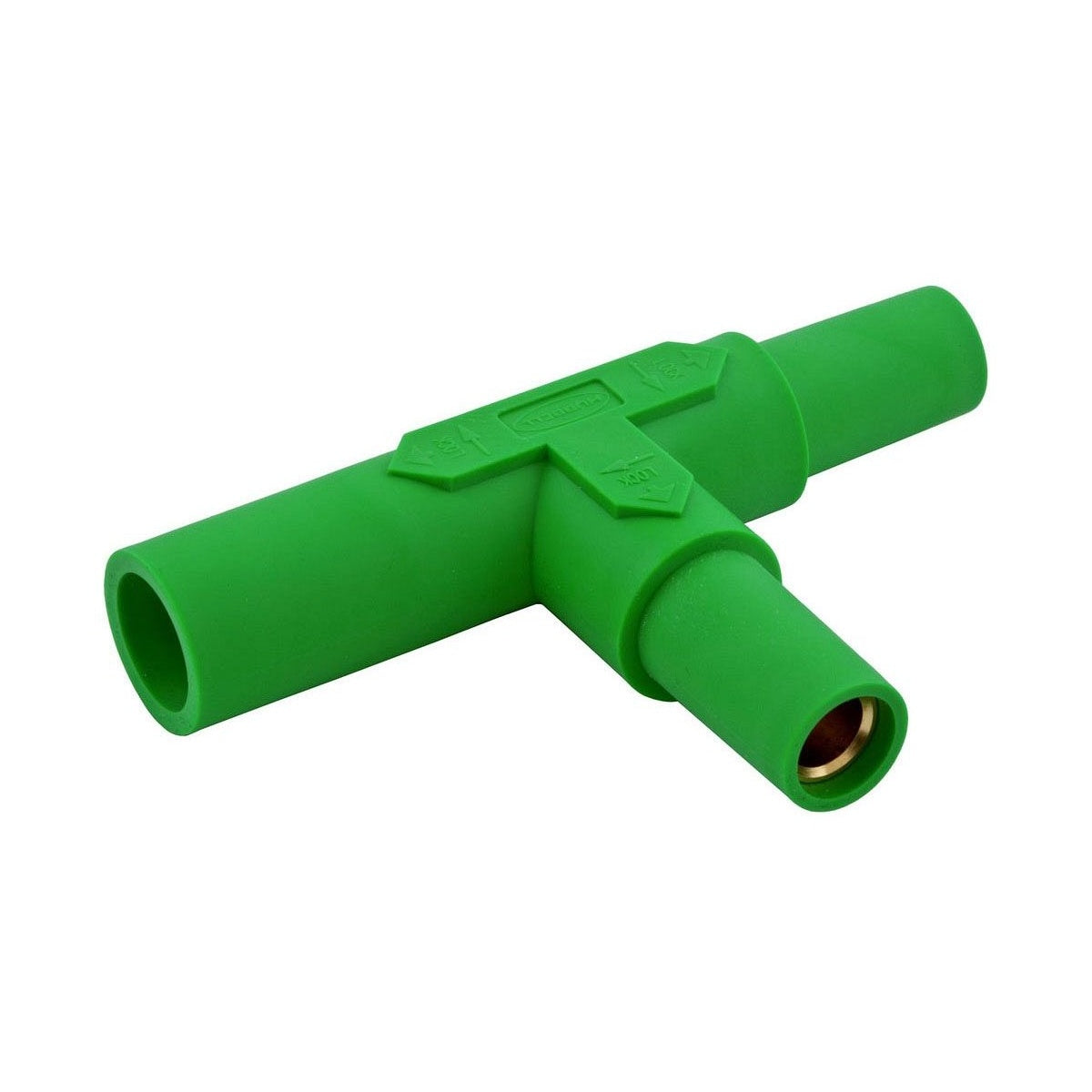

HUBBELL HBL15TGN SINGLE POLE SER 15 TAPPING TEE GN Electrical Connector
The HUBBELL HBL15TGN Single Pole Series 15 Tapping Tee is designed for temporary electrical power applications. This cord-mounted tapping tee provides a reliable plug-in connection for 1-pole, 150 amp circuits, suitable for indoor dry environments unless additional protection is applied. It is ideal for electrical distributors and lighting solutions requiring durable wire and cable accessories with robust insulation and connection features.
Specifications
- Application: Temporary Electrical Power
- Amperage Rating: 150 A
- Number of Poles: 1-Pole
- Number of Conductors: 1 Conductor
- Material: Brass and Non-Metallic
- Color: Green
- Mounting: Cord Mounted
- Connection: Plug In
- Insulation: Insulated Body
- NEMA Rating: Non-NEMA
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Product Weight: 9.2 lbs
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: HBL15TGN
Features
- Single pole design supports 150 amp circuits for high-capacity temporary power use.
- Plug-in connection ensures quick and secure electrical contacts.
- Cord-mounted configuration facilitates easy installation and flexible deployment.
- Durable brass and non-metallic construction provides mechanical strength and electrical insulation.
- Insulated body enhances safety by reducing risk of accidental contact.
- Green color coding complies with grounding conductor identification standards.
- Suitable for indoor dry environments with optional additional protection for harsher conditions.
