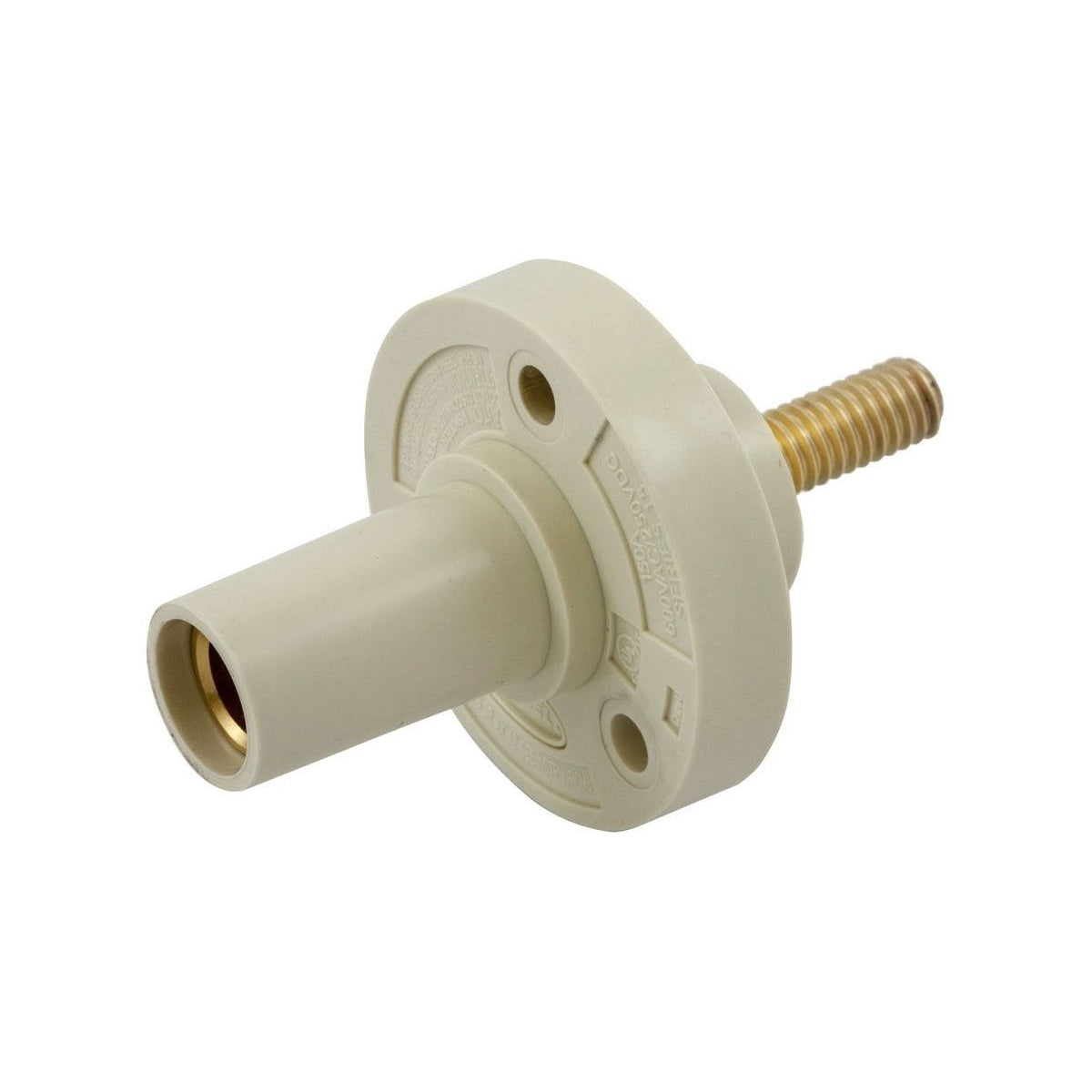

HUBBELL HBL15FRSW Single Pole 150A Receptacle Stud - Industrial Electrical Distributor Solution

The HUBBELL HBL15FRSW is a single pole, 150 amp female receptacle designed for extra heavy duty industrial applications. Manufactured with brass and thermoplastic materials, this stud-type receptacle provides a reliable connection for wiring systems. Suitable for indoor dry environments unless protected by additional means, it is ideal for use in electrical distribution and lighting solutions where robust wire and cable connections are required. This product supports screw mounting and features a threaded stud connection, making it a practical component for switchgear suppliers and electrical distributors managing high-amperage circuits.

Specifications

• Name: HUBBELL HBL15FRSW SINGLE POLE SER 15 RECEP STUD 150A WH
• Application: Extra Heavy Duty Industrial
• Amperage Rating: 150 A
• Number of Poles: 1-Pole
• Material: Brass/Thermoplastic
• Mounting: Screw Mount
• Connection: Threaded Stud
• NEMA Rating: Non-NEMA
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 4.85 lbs
• Manufacturer Part #: HBL15FRSW
• UPC: 783585458281

Features

• Designed for 150 amp capacity with reliable threaded stud connection
• Constructed with durable brass and thermoplastic for long-lasting performance
• Screw mount installation facilitates secure enclosure attachment
• Compatible with copper conductors rated for 90¬∞C power cable types
• Suitable for enclosure types 3, 3S, 3R, 4, 4X, and 12 when properly installed
• Meets industrial standards for heavy-duty electrical distribution systems
