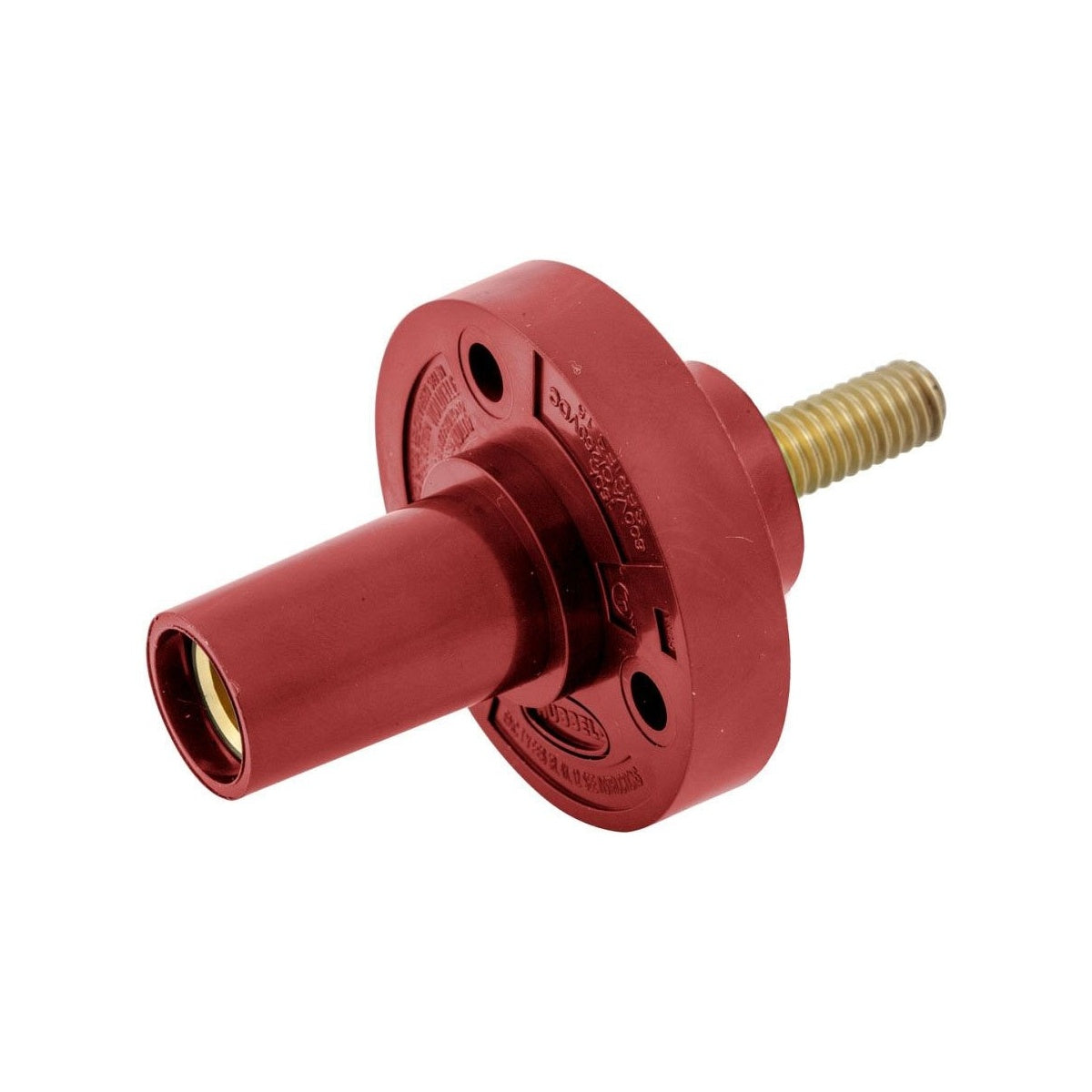

HUBBELL HBL15FRSR Single Pole 150A Stud Receptacle - Industrial Electrical Distributor Solution

The HUBBELL HBL15FRSR is a single pole, 150 amp female receptacle designed for extra heavy duty industrial applications. This stud-type receptacle provides reliable electrical connections in indoor dry environments unless protected by additional means. It is suitable for use by electrical distributors and switchgear suppliers requiring robust and durable components for wire and cable systems in lighting solutions and industrial power distribution.

Specifications

• Application: Extra Heavy Duty Industrial
• Amperage Rating: 150 A
• Number of Poles: 1-Pole
• Material: Brass/Thermoplastic
• Mounting: Screw Mount
• Connection: Threaded Stud
• NEMA Rating: Non-NEMA
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 6.25 lbs
• Manufacturer Part #: HBL15FRSR

Features

• Stud type receptacle with threaded stud connection for secure attachment to terminal lugs or bus bars
• Thermoplastic elastomer construction ensures durability and electrical insulation
• Designed for cable sizes #8 to #2 AWG copper conductors
• Suitable for panel mount applications with screw mounting for stable installation
• Rated for 600 VAC / 250 VDC operation in enclosure types 3, 3S, 3R, 4, 4X, and 12 when properly installed
• Compatible with Hubbell single pole devices for reliable mating and connection
• Installation requires torque control: 5/16”-18 nut tightened to 107 in-lbs max
• Use copper conductors only, rated for 90°C power cable types
