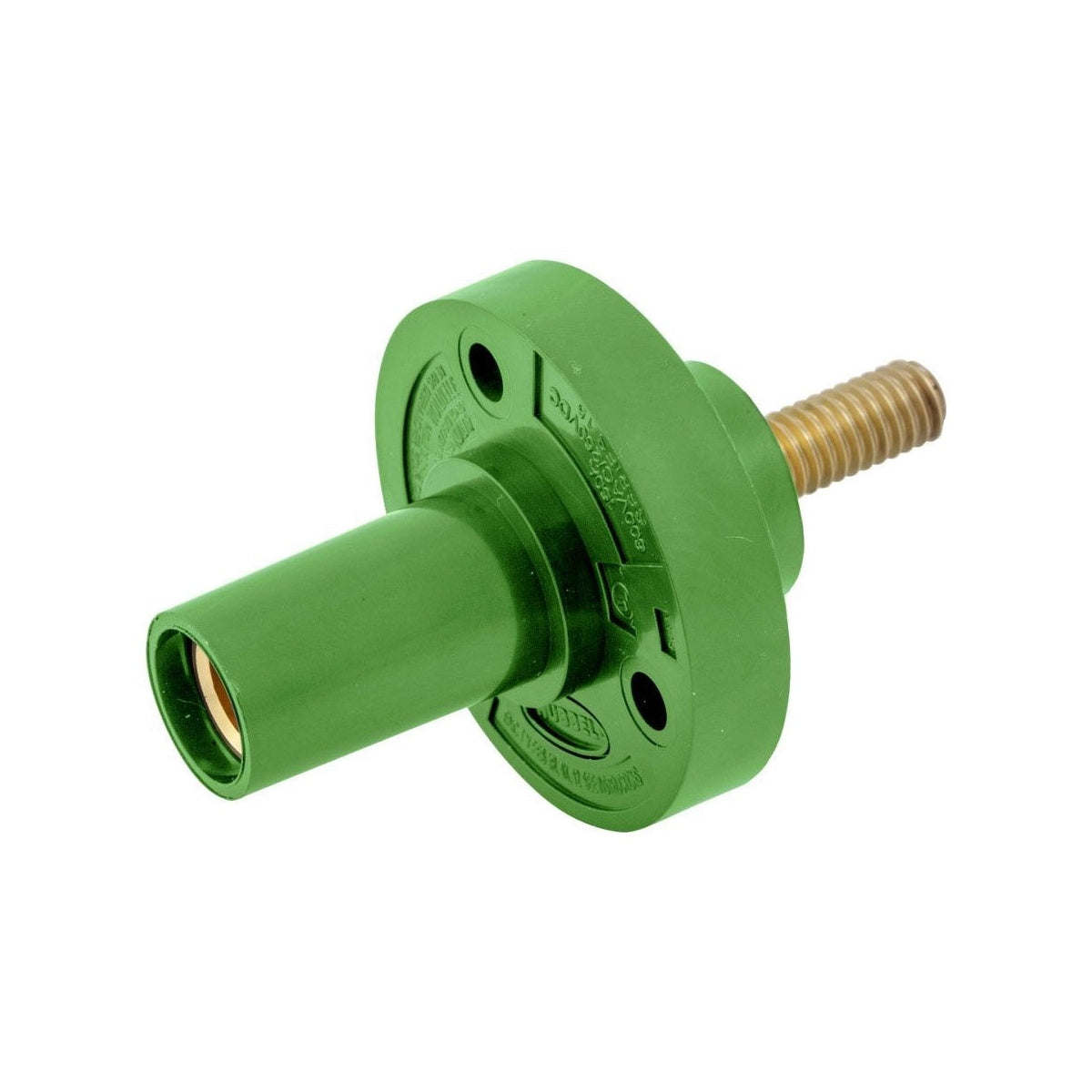

HUBBELL HBL15FRSGN Single Pole 150A Receptacle Stud Type - Industrial Electrical Connector

The HUBBELL HBL15FRSGN is a single pole, 150 amp female receptacle with a threaded stud connection designed for extra heavy duty industrial applications. This product is suitable for indoor dry environments unless additional protection is provided. It is constructed with brass and thermoplastic materials, ensuring durability and reliable electrical performance. Ideal for electrical distributors and lighting solutions requiring robust wire and cable connections, this device supports panel mounting with screw mount installation.

Specifications

• Amperage Rating: 150 A
• Number of Poles: 1-Pole
• Material: Brass/Thermoplastic
• Connection: Threaded Stud
• Mounting: Screw Mount
• NEMA Rating: Non-NEMA
• Application: Extra Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 4.7 lbs

Features

• Designed for 150 amp capacity with cable sizes from #8 to #2 AWG
• Panel mount receptacle with through-hole mounting for secure installation
• Threaded stud connection provides reliable electrical contact and mechanical strength
• Thermoplastic elastomer body offers resistance to industrial wear and tear
• Compatible with Hubbell single pole devices and suitable for enclosure types 3, 3S, 3R, 4, 4X, and 12 when installed properly
• Use with copper conductors rated for 90°C power cable types
• Installation requires standard #8-32 fasteners and torque specifications to ensure safety and performance
