Description

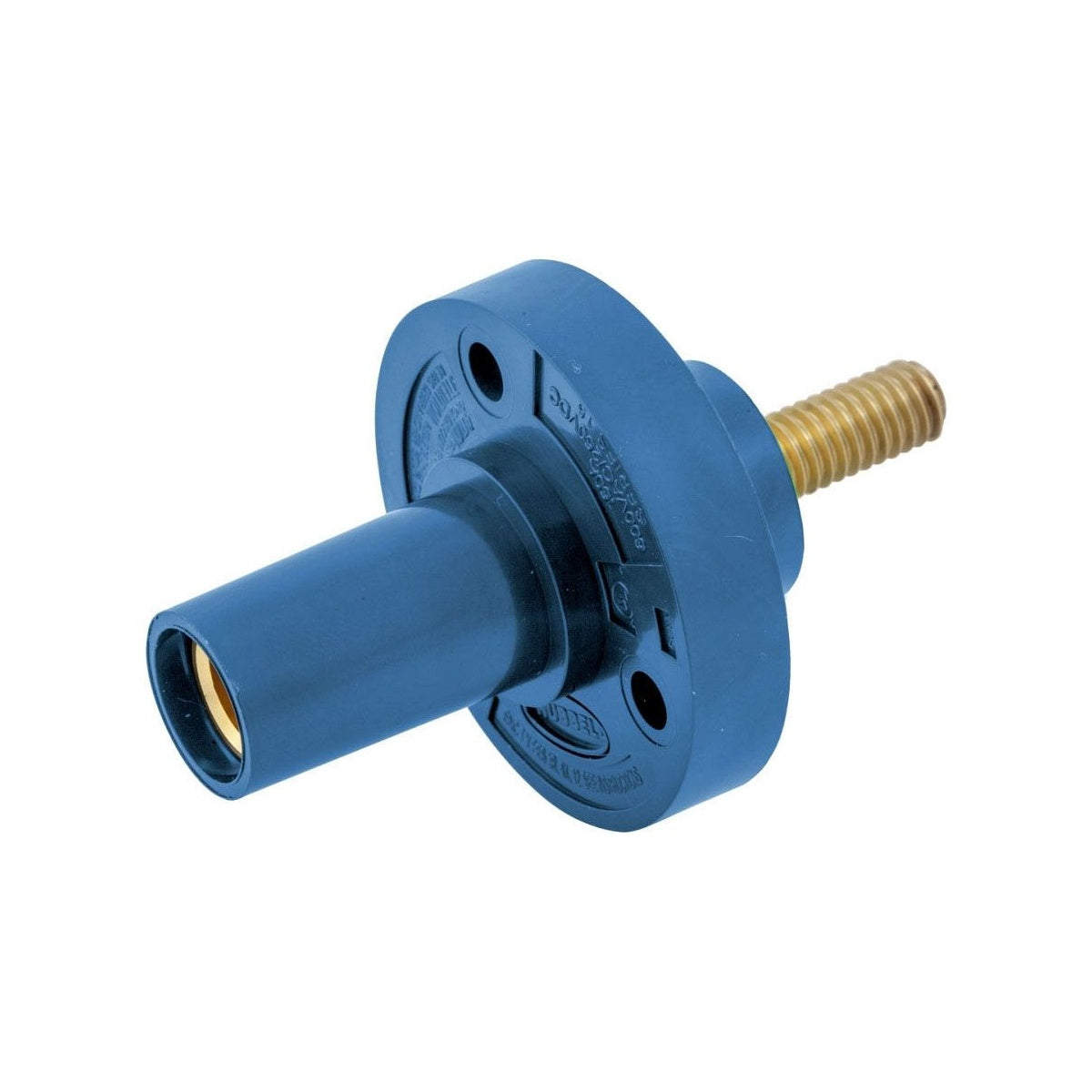

HUBBELL HBL15FRSBL Single Pole 150 Amp Receptacle Stud Type
The HUBBELL HBL15FRSBL is a single pole, 150 amp female receptacle designed for extra heavy duty industrial applications. This stud type receptacle is constructed with brass and thermoplastic materials, offering reliable performance for indoor dry environments unless additional protection is provided. It is suitable for use by electrical distributors and switchgear suppliers requiring robust and durable components for wire and cable connections in lighting solutions and industrial power distribution.
Specifications
- Application: Extra Heavy Duty Industrial
- Amperage Rating: 150 A
- Number of Poles: 1-Pole
- Material: Brass/Thermoplastic
- Mounting: Screw Mount
- Connection: Threaded Stud
- NEMA Rating: Non-NEMA
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Product Weight: 4.2 lbs
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: HBL15FRSBL
Features
- Stud type female receptacle designed for panel mount installation
- Compatible with copper conductors rated for 90°C power cable types
- Secure connection via 5/16”-18 nut and washer torque to 107 in-lbs (12.1 N-m)
- Suitable for cable sizes #8 to #2 AWG
- Constructed with thermoplastic elastomer housing for durability
- Designed for use in enclosure types 3, 3S, 3R, 4, 4X, and 12 when properly installed
- Includes locking pin for secure contact engagement
