HUBBELL HBL15FRSBK Single Pole 150A Receptacle – Industrial Electrical Distributor

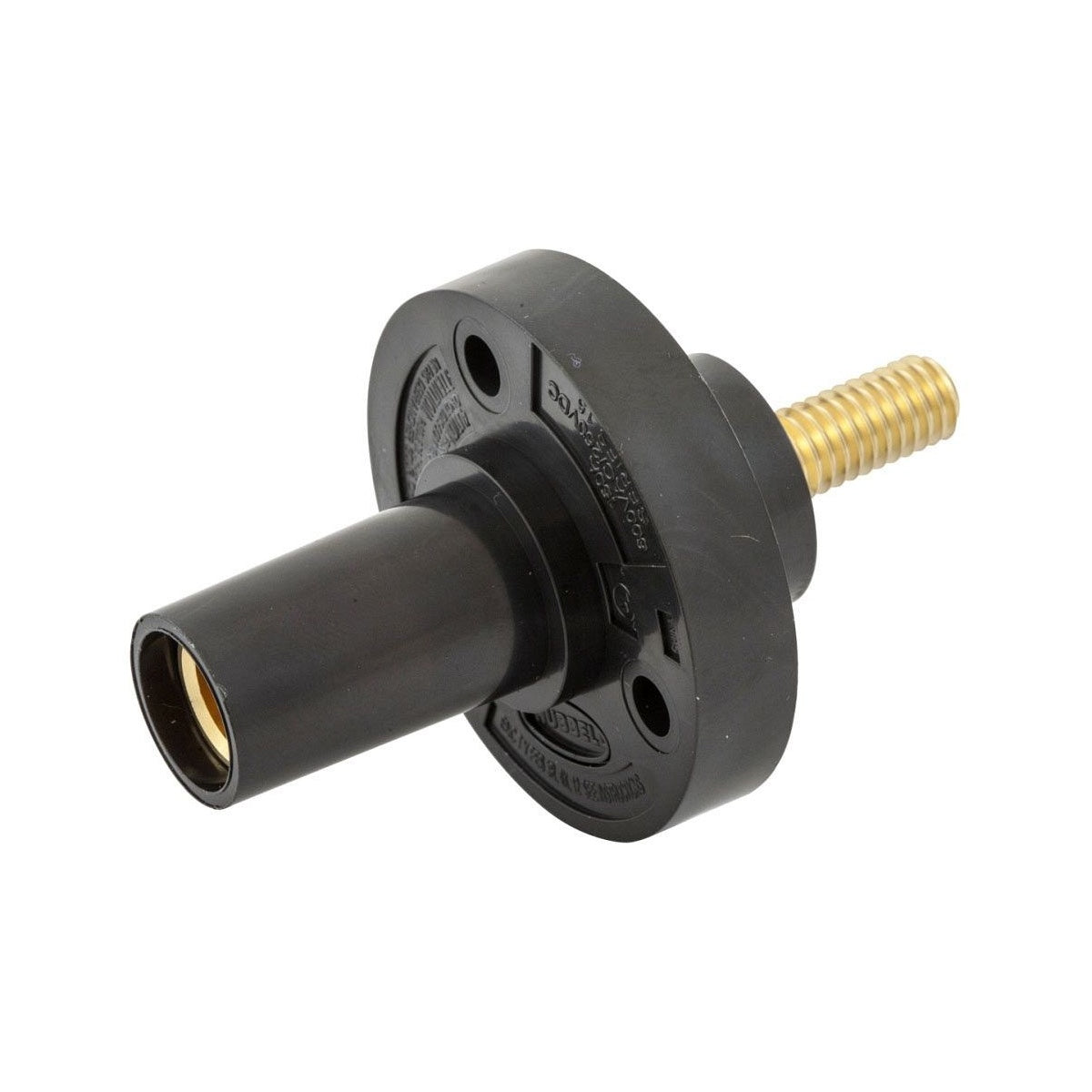

The HUBBELL HBL15FRSBK is a single pole, 150 amp female receptacle designed for extra heavy duty industrial applications. It is suitable for panel mount installations and is constructed from durable brass and thermoplastic materials. This product is ideal for electrical distributors and switchgear suppliers looking for reliable, high-capacity connectors compatible with wire and cable sizes ranging from #8 to #2 AWG. It is rated for indoor dry environments unless additional protection is provided.

Specifications

• Amperage Rating: 150 A
• Number of Poles: 1-Pole
• Material: Brass/Thermoplastic
• Mounting: Screw Mount
• Connection: Threaded Stud
• NEMA Rating: Non-NEMA
• Application: Extra Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 9.0000 lbs
• Manufacturer Part #: HBL15FRSBK

Features

• Panel mount receptacle designed for secure and reliable connections
• Threaded stud connection ensures firm attachment to terminal lugs or bus bars
• Constructed with brass contacts for excellent conductivity and thermoplastic housing for durability
• Rated for use with copper conductors, supporting cable sizes #8 to #2 AWG
• Suitable for use in electrical distribution and lighting solutions requiring high amperage capacity
• Installation requires user-supplied fasteners; designed for easy mounting on 1/8‚Äù thick enclosure surfaces
