Description

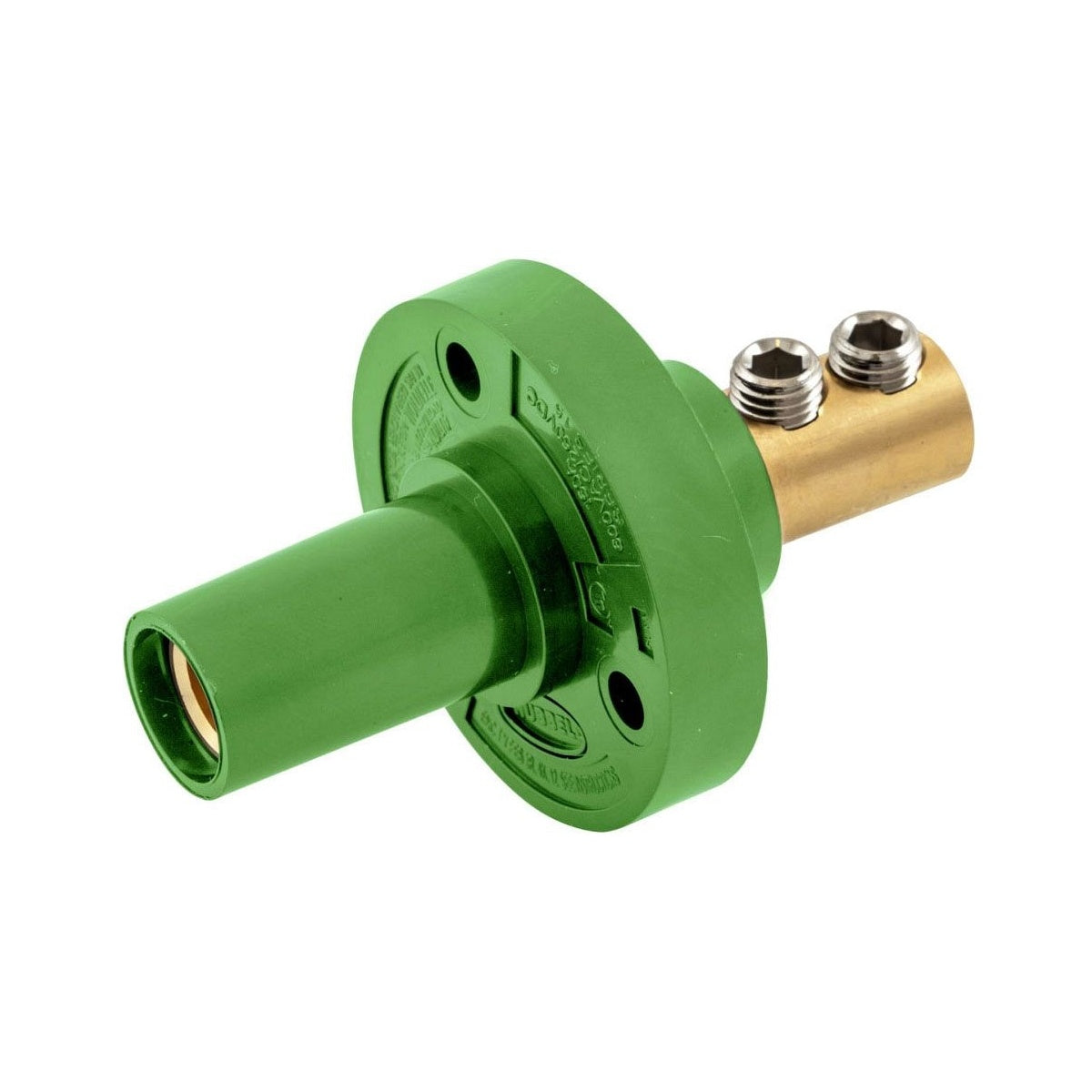

HUBBELL HBL15FRGN Single Pole 150 Amp Receptacle - Industrial Electrical Connector
The HUBBELL HBL15FRGN is a single pole, 150 amp female receptacle designed for extra heavy duty industrial applications. It is suitable for panel mounting in indoor dry environments unless additional protection is applied. This component is ideal for electrical distributors and switchgear suppliers requiring reliable, high-amperage wire and cable connections in lighting solutions and industrial power systems.
Specifications
- Application: Extra Heavy Duty Industrial
- Amperage Rating: 150 A
- Number of Poles: 1-Pole
- Material: Brass/Thermoplastic
- Mounting: Screw Mount
- Connection: Double Set Screw
- NEMA Rating: Non-NEMA
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Product Weight: 5.7 lbs
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: HBL15FRGN
Features
- Thermoplastic elastomer construction for durability and safety
- Double set screw connection ensures secure wire termination
- Screw mount design for reliable panel installation
- Compatible with copper conductors, rated for use with 90º C power cable types SC, SCE, SCT, G, PPE, PPC, or W
- Suitable for cable sizes #8 to #2 AWG
- Designed to meet enclosure types 3, 3S, 3R, 4, 4X, and 12 when properly installed
- Complies with Hubbell's single pole device standards for industrial electrical applications
