Hubbell Building & Automation
HUBBELL HBL15DFGN SINGLE POLE SER 15 DOUBLE FEM GN
SKU: #141696
Part: #HBL15DFGN
UPC: 783585458694
Hubbell Building & Automation
HUBBELL HBL15DFGN SINGLE POLE SER 15 DOUBLE FEM GN
SKU: #141696
Part: #HBL15DFGN
UPC: 783585458694
Description

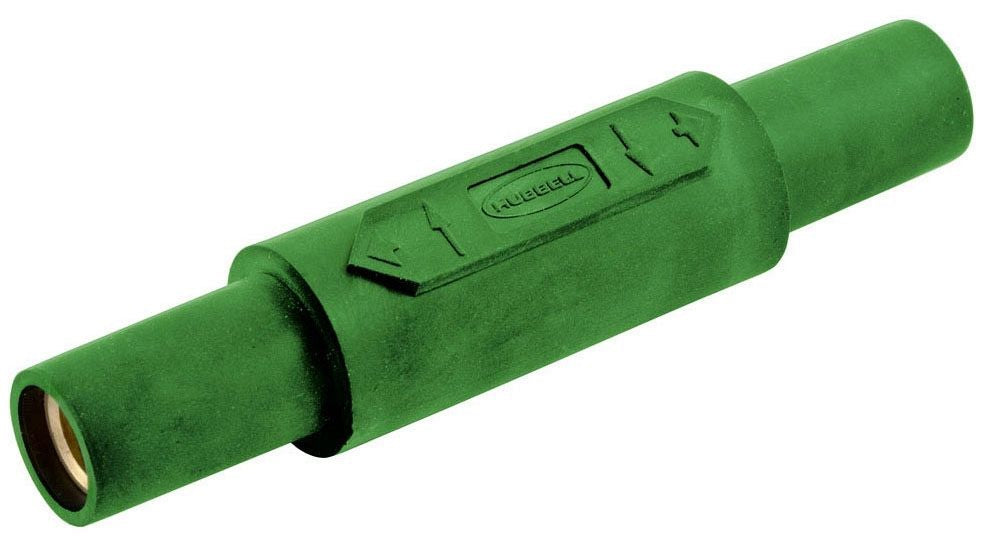

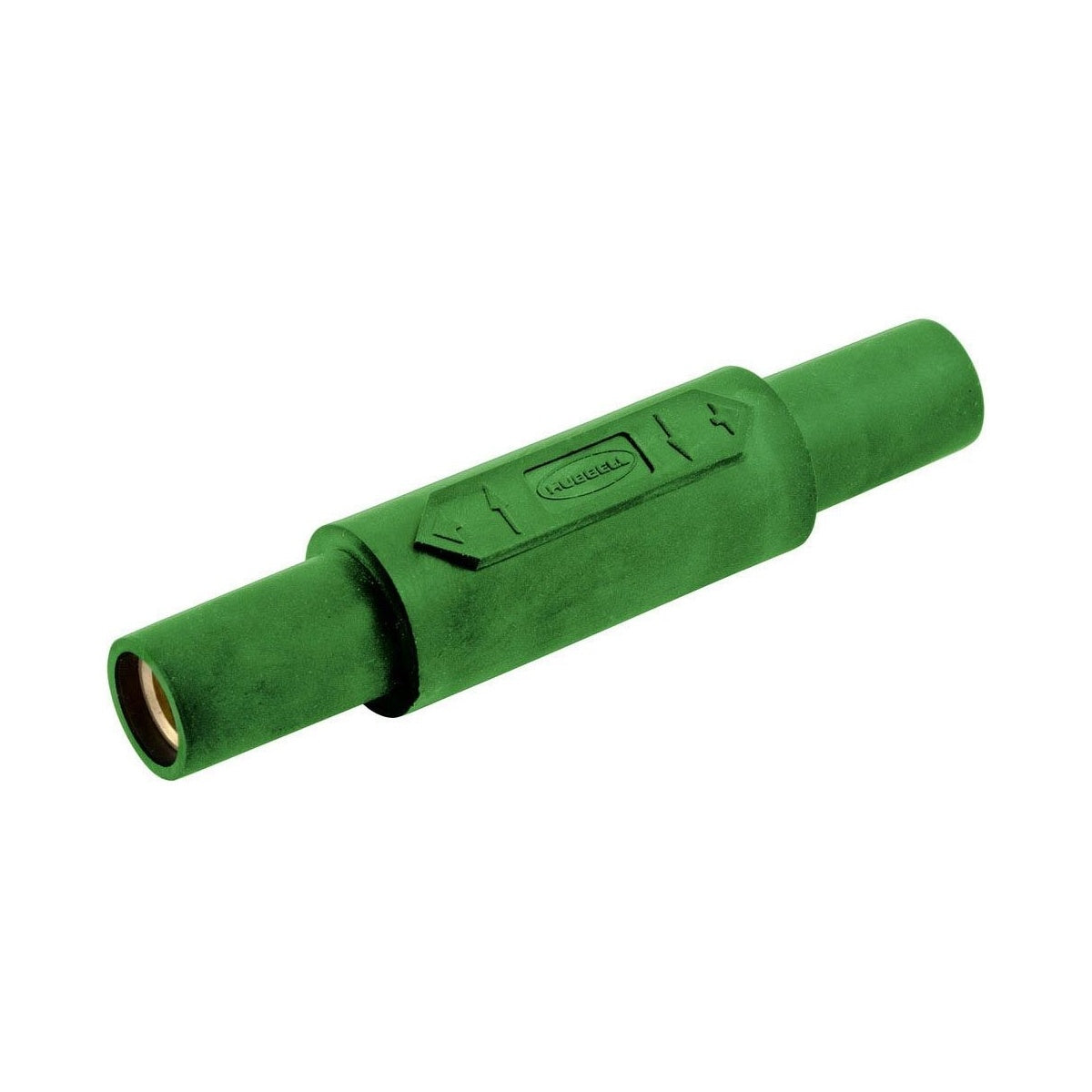

HUBBELL HBL15DFGN SINGLE POLE SER 15 DOUBLE FEM GN - Electrical Connector
The HUBBELL HBL15DFGN is a single pole, 150 amp electrical connector designed for temporary electrical power applications. This cord-mounted plug-in device is suitable for use in indoor dry environments unless additional protection is provided. It is constructed with brass and non-metallic materials and features an insulated body for safety. The green color identifies its grounding function, compliant with industry standards for wire and cable connections. This product is ideal for electrical distributors and switchgear suppliers requiring reliable and durable connectors for lighting solutions and power distribution.
Specifications
- Application: Temporary Electrical Power
- Amperage Rating: 150 A
- Number of Poles: 1-Pole
- Number of Conductors: 1 Conductor
- Material: Brass and Non-Metallic
- Color: Green
- Mounting: Cord Mounted
- Connection: Plug In
- Insulation: Insulated Body
- NEMA Rating: Non-NEMA
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Product Weight: 5.35 lbs
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part Number: HBL15DFGN
Features
- Designed for 150 amp, 600 volts applications
- Single pole configuration for grounding conductor use
- Cord-mounted design for easy installation and replacement
- Plug-in connection type ensures secure and reliable contact
- Insulated body enhances safety by reducing electrical shock risk
- Constructed from durable brass and non-metallic materials for longevity
- Suitable for use in indoor dry environments with optional additional protection
