Description

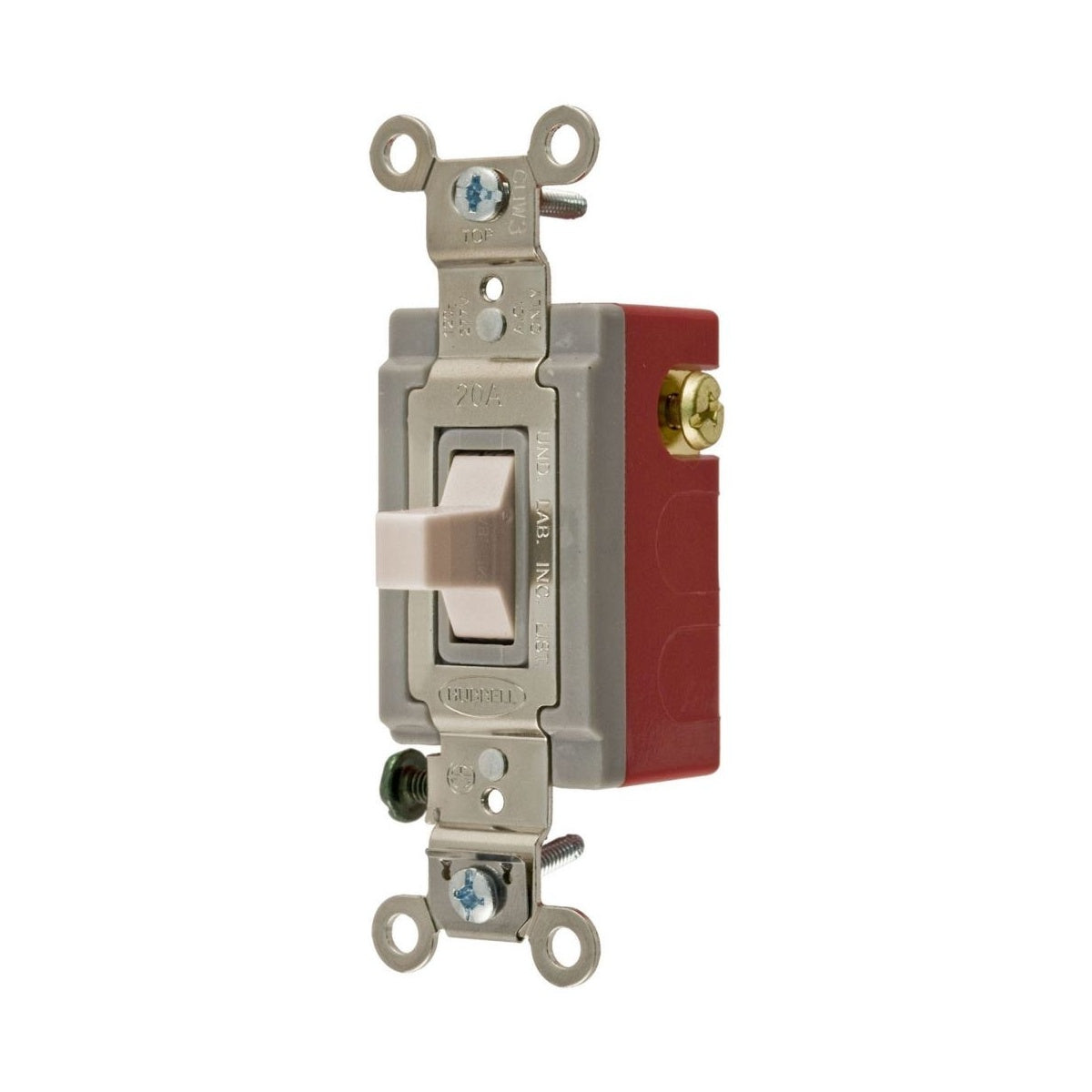

HUBBELL HBL1557LA MOM TOG 20A 120/277V SPDT LA Toggle Switch
The HUBBELL HBL1557LA is a momentary contact toggle switch designed for industrial and commercial electrical applications. It features a single pole double throw (SPDT) configuration with back and side wiring capabilities, suitable for use in lighting solutions, wire and cable systems, and as part of a switchgear supplier’s product offering. This switch is intended for indoor dry environments unless additional protection is provided.
Specifications
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: HBL1557LA
- Amperage Rating: 20 A
- Voltage Rating: 120/277V AC
- Contact Configuration: Momentary
- Number of Poles: Single Pole
- Action: SPDT (Single Pole Double Throw)
- Connection: Back and Side Wired
- Mounting: Screw Mount
- Contact Rating: Per UL 20
- Operating Cycles: 50,000 Cycles
- Product Weight: 2.2 lbs
- Environmental Conditions: Indoor Dry unless protected by additional means
Features
- Nylon toggle for durability
- Back and side wired for versatile installation
- Momentary contact switch ideal for control circuits
- Specification grade quality for reliable operation
- Designed to meet UL standards
