Hubbell Building & Automation
HUBBELL HBL1223PLC 3 WAY TOG IND GRD 20A 120/277V PL CLR
SKU: #141340
Part: #HBL1223PLC
UPC: 783585431925
Hubbell Building & Automation
HUBBELL HBL1223PLC 3 WAY TOG IND GRD 20A 120/277V PL CLR
SKU: #141340
Part: #HBL1223PLC
UPC: 783585431925
Description

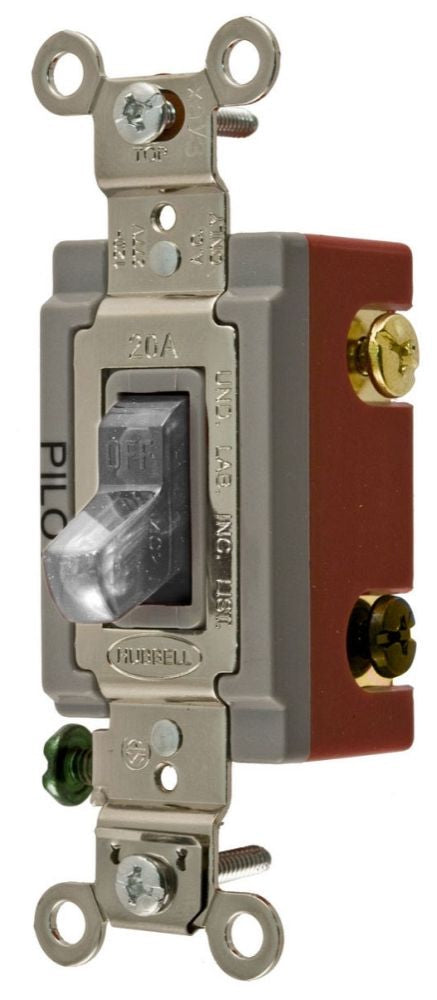

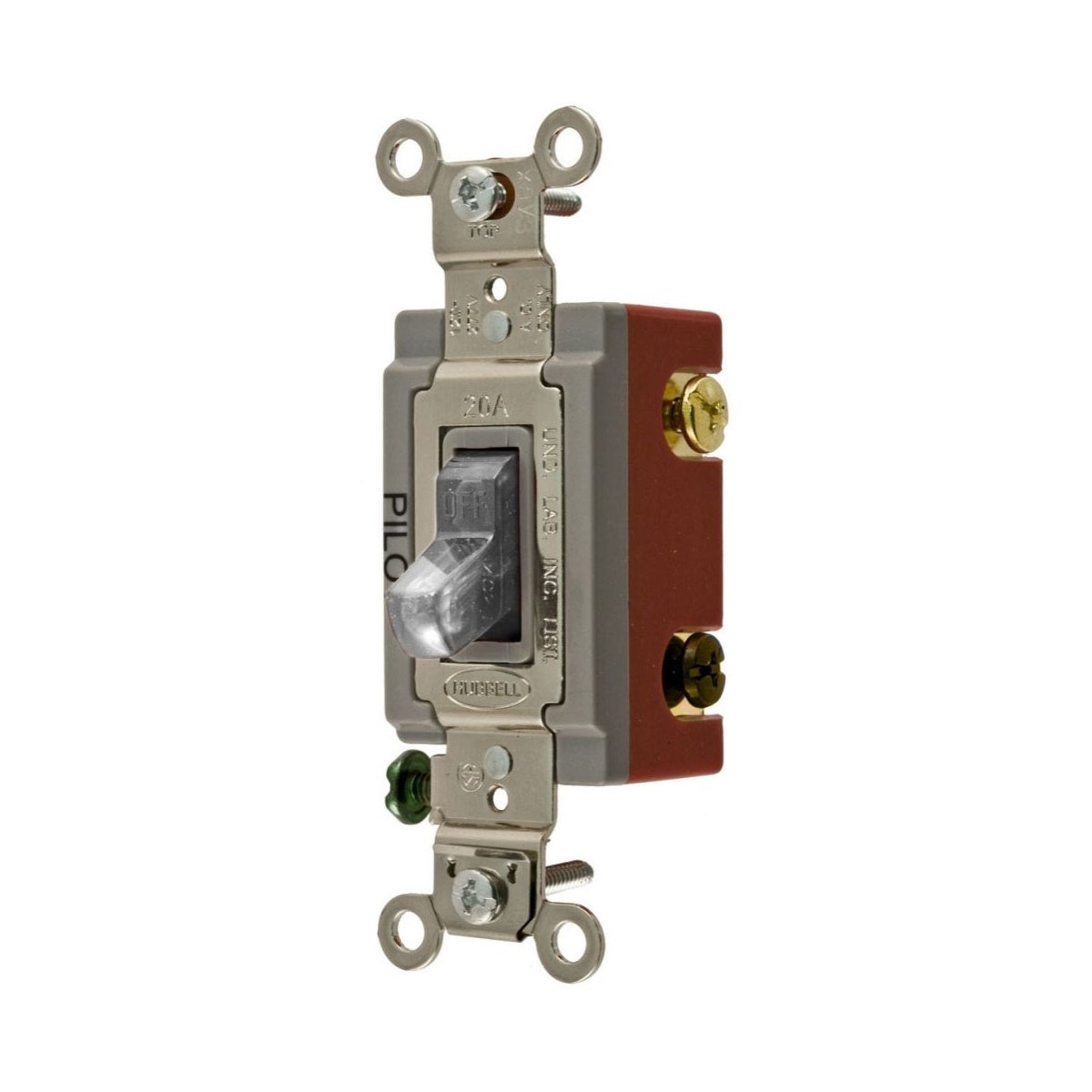

HUBBELL HBL1223PLC Pilot Light Switch 20A 120/277V
The HUBBELL HBL1223PLC is a 3-way pilot light toggle switch designed for industrial and commercial electrical applications. It features a single pole, double throw (SPDT) action with a two-position contact configuration. This switch is suitable for back and side wiring installations and is rated for 20 amps at 120/277 volts AC. Ideal for electrical distributors and lighting solutions providers, it offers reliable switching with illumination indicating load ON status. It is commonly used in wire and cable setups and by switchgear suppliers for indoor dry environments unless additional protection is applied.
Specifications
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: HBL1223PLC
- Amperage Rating: 20 A
- Voltage Rating: 120/277 V AC
- Number of Poles: Single Pole
- Contact Rating: Per UL 20
- Contact Configuration: Two Position
- Action: SPDT
- Mounting: Screw Mount
- Connection: Back and Side Wired
- Operating Cycles: 50,000 Cycles
- Environmental Conditions: Indoor Dry unless protected by additional means
- Product Weight: 0.2000 lbs
- Enclosure: None
- Insulation: None
- UPC: 783585431925
Features
- Illuminated toggle indicates when load is ON
- Durable nylon toggle suitable for heavy-duty industrial use
- Back and side wiring options for flexible installation
- Designed for 3-way circuit applications
- Complies with UL standards for safety and performance
