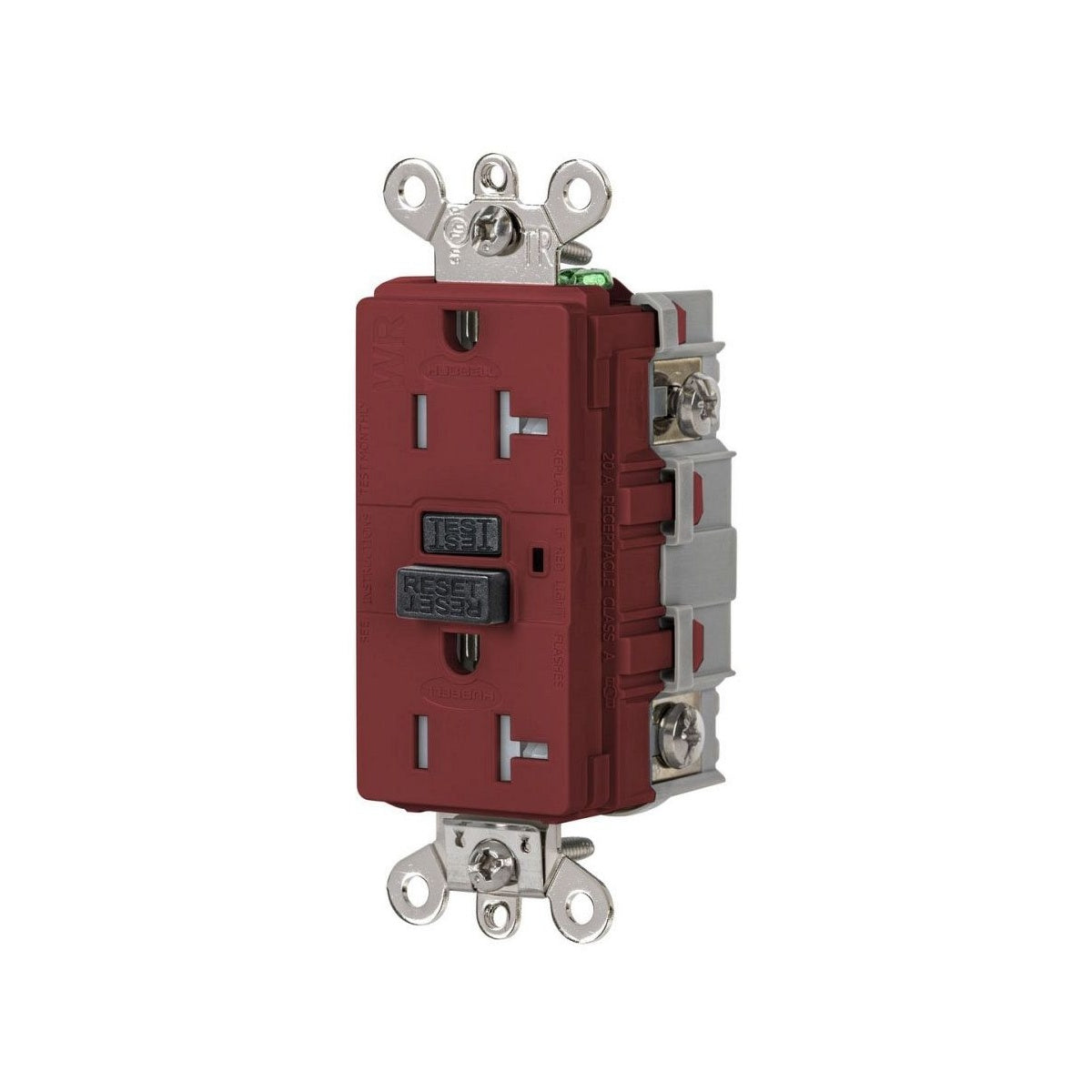

HUBBELL GFSG5362R 20A 125VAC Industrial Grade GFCI Receptacle

The HUBBELL GFSG5362R is a 20 amp, 125 volt AC ground fault circuit interrupter (GFCI) receptacle designed for industrial grade applications. It provides reliable electrical protection by quickly interrupting power in the event of a ground fault to enhance safety in industrial environments. This device is suitable for use by electrical distributors and switchgear suppliers looking to offer high-quality wiring devices that meet stringent safety standards. Its red color and tamper-resistant design make it ideal for industrial lighting solutions and wire and cable applications requiring durable, heavy-duty receptacles.

Specifications

• Manufacturer: Hubbell Building & Automation
• Manufacturer Part #: GFSG5362R
• Material: PC/PBT thermoplastic housing with high thermal conductivity copper alloy contacts
• Rating: 20A, 125VAC, 60Hz
• NEMA Rating: 5-20R
• Product Weight: 4.9 lbs
• Application: Industrial Grade
• UL Listings: UL498 for receptacles, UL943 Class A for GFCIs
• CSA Certified
• Trip Level: 4 to 6 mA, trip time approximately 0.025 seconds
• Operating Temperature: -30¬∞F to 150¬∞F (-35¬∞C to 66¬∞C)
• Maximum Interrupting Capacity: 10,000A
• FCC Part 15 Class B Certified for electromagnetic compatibility
• Dust and Corrosion Resistant per UL 943 sections 6.20 and 6.21

Features

• Extra heavy-duty industrial and hospital grade GFCI receptacle
• Tamper-resistant and weather-resistant design suitable for damp or wet locations
• Corrosion resistant nickel-plated brass mounting strap, terminals, and screws
• Selective double-layer conformal coating on printed circuit board and critical components
• Polyester ‚ÄúV0‚Äù thermoplastic UV-resistant housing
• 7025 high thermal conductivity copper alloy contacts for superior electrical performance
• Automatic self-test GFCI (AUTOGUARD¬Æ) with multi-color LED status indicators
• Manual monthly test recommended via test and reset buttons to ensure proper operation
• 20 amp feed-through capability for downstream receptacle protection
