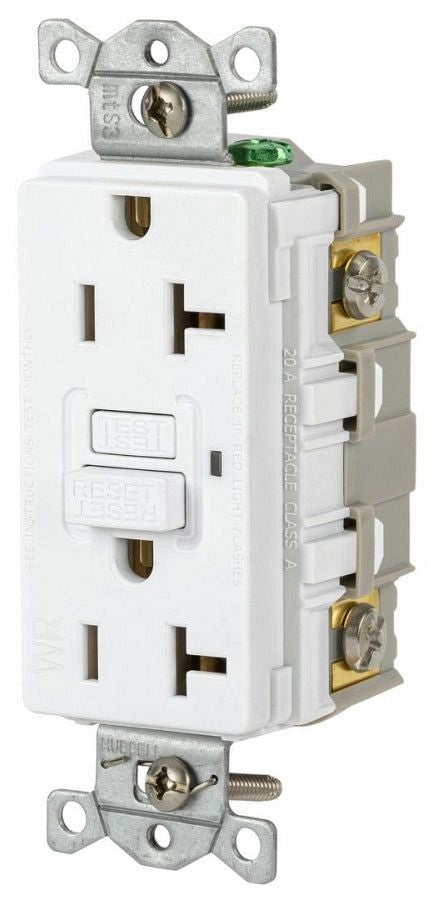

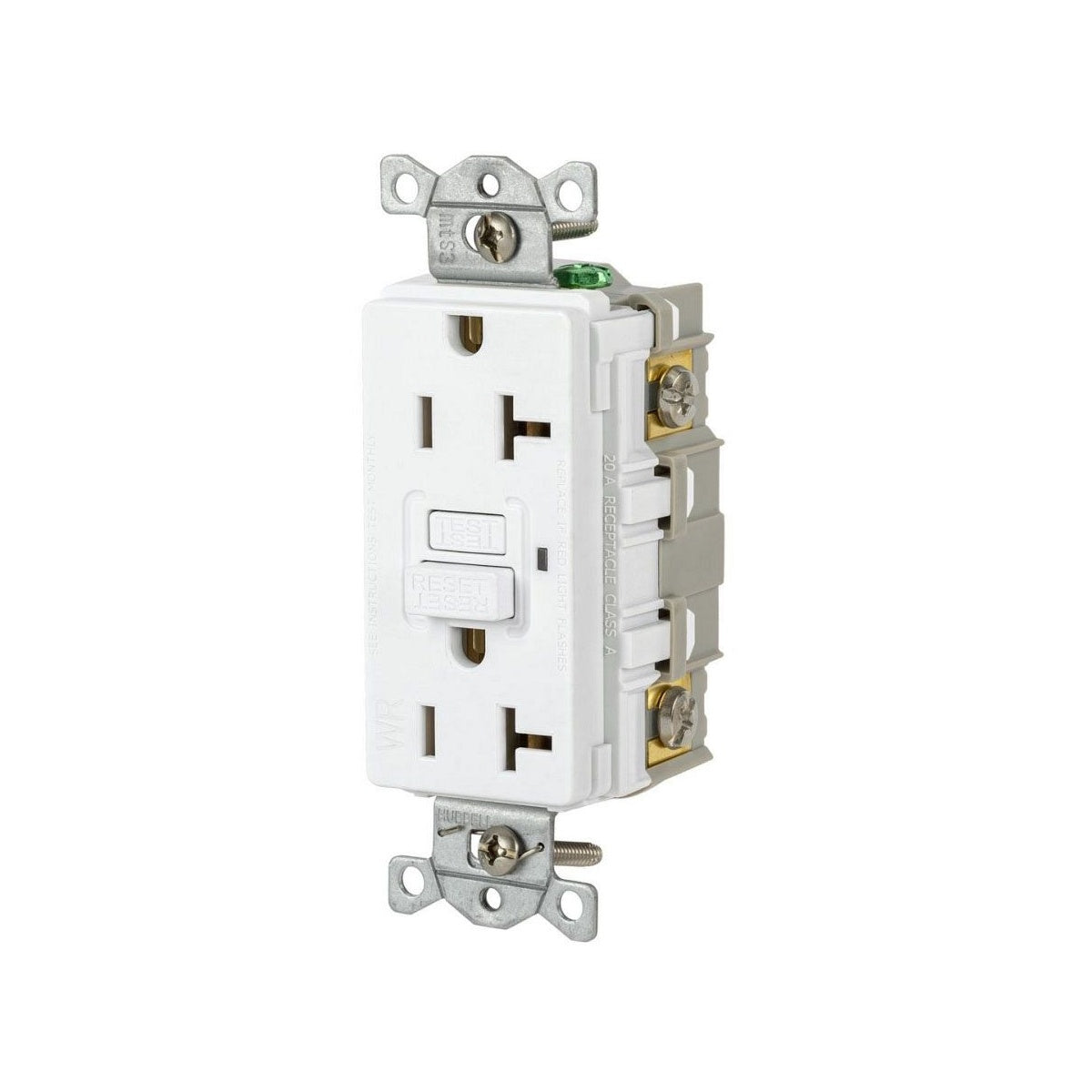

HUBBELL GFRWR20W 20A 125VAC COMM WR GFR WHITE GFCI Receptacle

The HUBBELL GFRWR20W is a 20 Amp, 125 Volt AC Ground Fault Circuit Interrupter (GFCI) receptacle designed for commercial applications requiring enhanced electrical safety. This device is suitable for use by electrical distributors and switchgear suppliers providing reliable protection against ground faults in wiring systems. It is weather resistant (WR) for installation in damp or wet locations when paired with appropriate weatherproof covers. The GFCI receptacle is intended for use with copper or copper-clad wire and complies with applicable national and local electrical codes.

Specifications

• Manufacturer: Hubbell Building & Automation
• Manufacturer Part Number: GFRWR20W
• NEMA Rating: 5-20R
• Electrical Rating: 20A, 125VAC, 60Hz
• Product Weight: 0.35 lbs
• Color: White
• Material: Nylon 66 (Face and Base), Brass (Contacts and Terminals), Steel (Mounting Screws)
• Dimensions: 4.12 in (H) x 1.75 in (W) x 1.48 in (D)
• UPC: 883778999833

Features

• Ground Fault Protection: Trips quickly to stop electrical flow in the event of a ground fault, preventing serious injury
• Weather Resistant (WR) rating for use in damp or wet locations
• Multi-color LED indicator: Green = device powered, Red = device tripped, Flashing Red = end of life
• Test and Reset buttons for manual testing and resetting of the device
• Compatible with copper or copper-clad wiring (not for aluminum wire)
• Automatic self-test feature with monthly manual test recommended
• Mounting yoke with stainless steel screws for secure installation
• Complies with FCC Part 15 rules for interference
