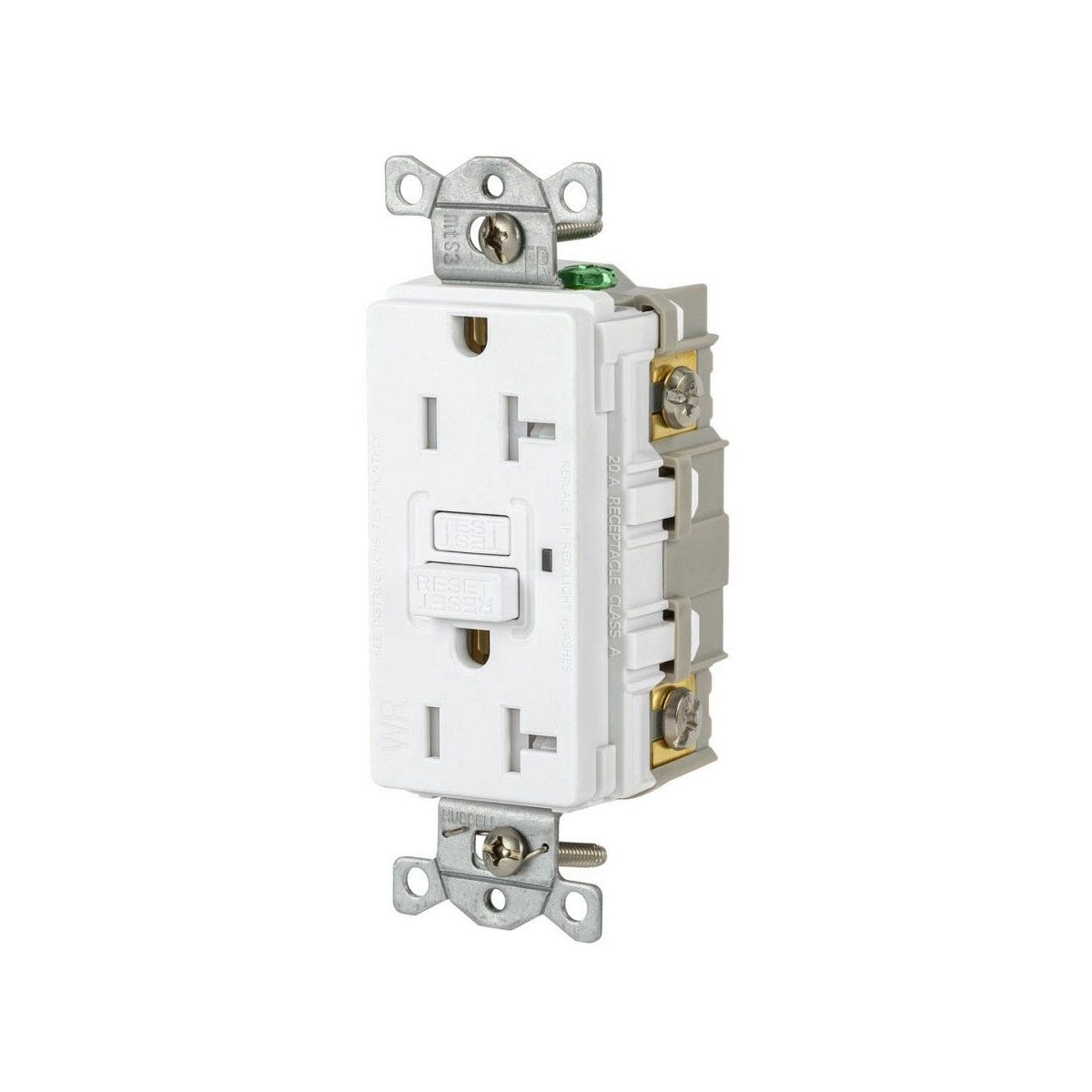

HUBBELL GFRTW20W 20A 125VAC COMM TRWR GFR WHITE GFCI Receptacle

The HUBBELL GFRTW20W is a 20 Amp, 125 Volt AC commercial-grade ground fault circuit interrupter (GFCI) receptacle designed for electrical distributors and lighting solutions suppliers. This device provides enhanced safety by quickly interrupting electrical flow in the event of a ground fault, protecting users from electrical shock. It is suitable for use with copper or copper-clad wire and is rated for damp or wet locations with its weather-resistant (WR) design. The receptacle complies with national and local electrical codes and is ideal for commercial and industrial wiring applications requiring reliable ground fault protection.

Specifications

• Manufacturer: Hubbell Building & Automation
• Manufacturer Part Number: GFRTW20W
• NEMA Rating: 5-20R
• Voltage Rating: 125VAC
• Current Rating: 20A
• Frequency: 60Hz
• Product Weight: 0.35 lbs
• Material: Nylon 66 (Face and Base), Brass Terminals with Tin Plating, Steel Mounting Screws
• Dimensions: 4.12 in (H) x 1.75 in (W) x 1.48 in (D)
• Color: White
• Weather Resistant: Yes (WR Marked)

Features

• Ground fault protection trips the device to stop electrical flow and prevent shock hazards
• Test and Reset buttons for manual verification and restoration of power
• Multi-color LED status indicator: Green (powered), Red (tripped), Flashing Red (end of life)
• Compatible with copper or copper-clad wiring; not for use with aluminum wiring
• Automatic self-test feature performs electronic checks every minute to ensure functionality
• Mounting yoke designed for standard electrical boxes
• Complies with FCC Part 15 rules for interference
• Suitable for commercial wiring and lighting applications requiring reliable GFCI protection
