Hubbell Building & Automation
HUBBELL FB2537 ROUND CAST IRON SHALLOW 1-G
SKU: #403320
Part: #FB2537
UPC: 783585696010
Hubbell Building & Automation
HUBBELL FB2537 ROUND CAST IRON SHALLOW 1-G
SKU: #403320
Part: #FB2537
UPC: 783585696010
Description

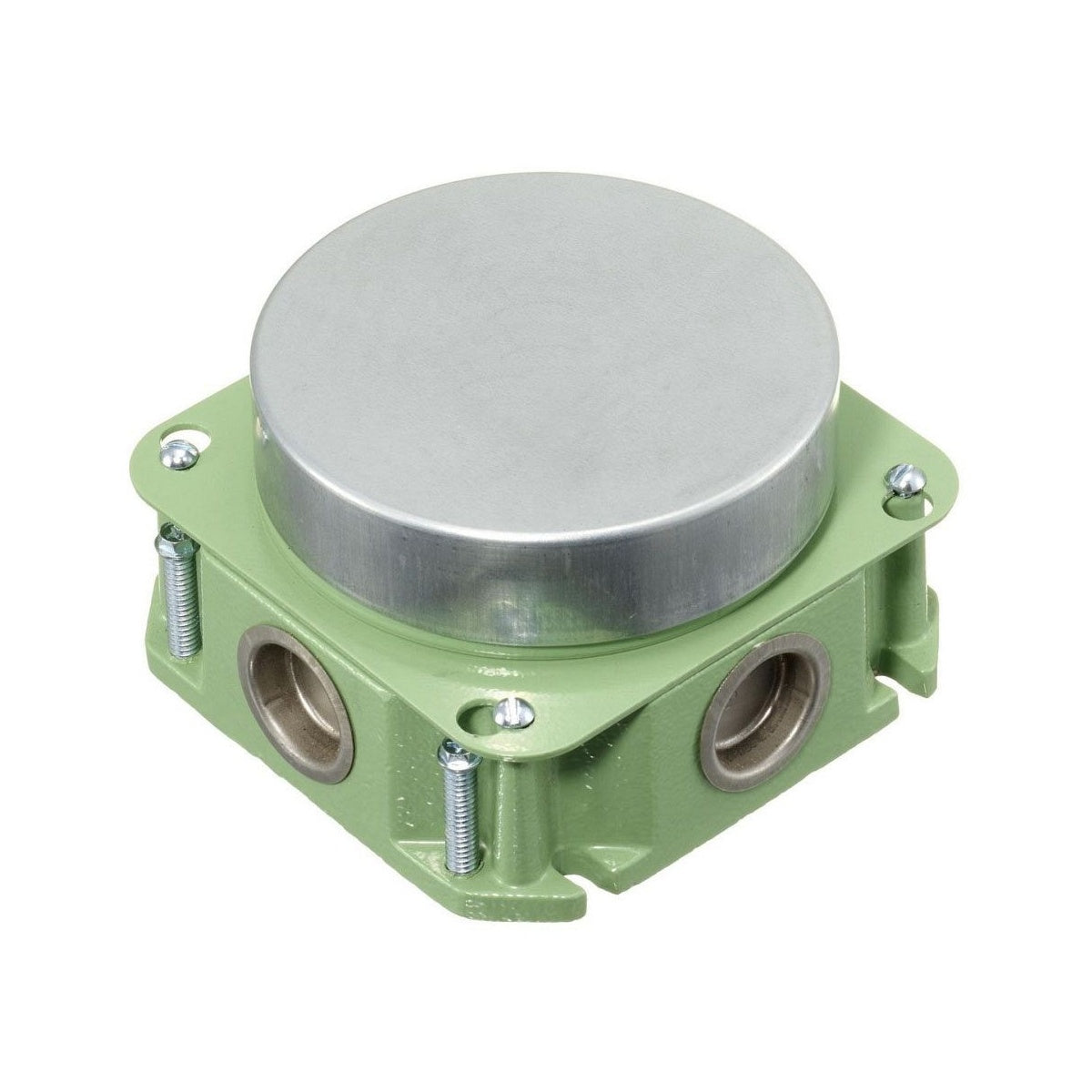

HUBBELL FB2537 Round Cast Iron Shallow Floor Box – Electrical Floor Box
The HUBBELL FB2537 is a round, shallow floor box designed for use in concrete floors, providing a durable solution for electrical wiring installations. Ideal for electrical distributors and switchgear suppliers, this floor box supports single service applications and is suitable for embedding in concrete floors where robust protection and accessibility are required.
Specifications
- Application: For Use in Concrete Floors
- Material: Cast Iron Base Box, Pregalvanized Steel Top, PVC Spacer
- Color: Green
- Dimensions (Width x Length x Height): 4.85 in x 4.85 in x 2.87 in
- Product Weight: 15.7 lbs
- Knockouts: 4
- Construction: Fabricated
- Mounting: Field Installed
Features
- Fully adjustable before and after concrete pour to ensure proper alignment and depth
- Durable cast iron base with pregalvanized steel cover for corrosion resistance
- Designed to accommodate single service electrical wiring in concrete floor installations
- Includes four ¾" threaded hubs for conduit connections
- Closure plugs and concrete cover included to prevent debris ingress during installation
