Hubbell Building & Automation
HUBBELL DR20LATR TAMP RES DECO FACE 20A 125V LA
SKU: #410476
Part: #DR20LATR
UPC: 783585144450
Hubbell Building & Automation
HUBBELL DR20LATR TAMP RES DECO FACE 20A 125V LA
SKU: #410476
Part: #DR20LATR
UPC: 783585144450
Description

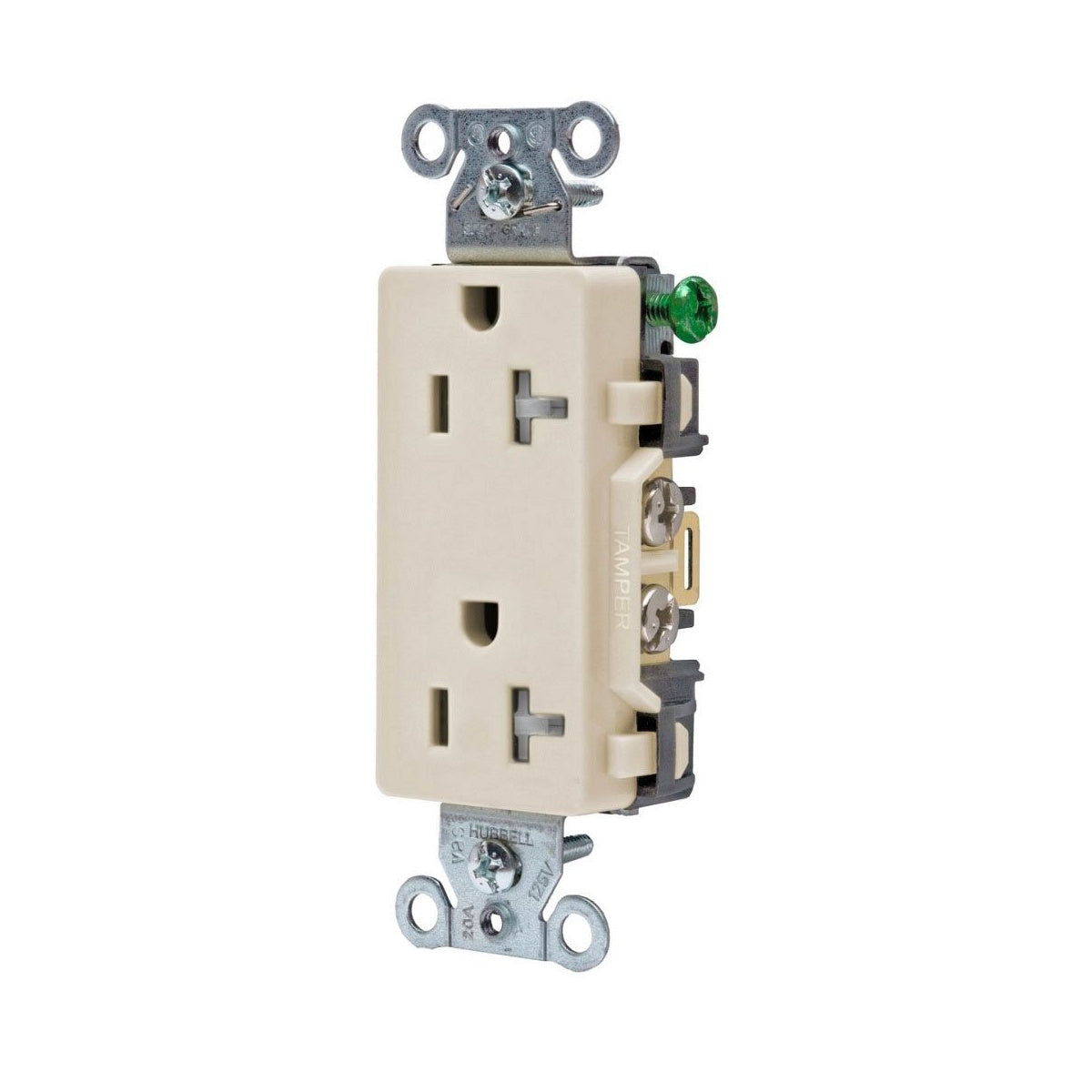

HUBBELL DR20LATR Tamper Resistant Decorator Receptacle 20A 125V
This Hubbell DR20LATR tamper-resistant decorator receptacle is designed for commercial specification grade applications. It provides reliable electrical connections suitable for indoor dry environments, making it ideal for electrical distributors and lighting solutions providers requiring durable and secure wiring devices. The device supports back and side wiring, accommodating 3-wire, 2-pole configurations at 20 amps and 125 volts, meeting NEMA 5-20R standards.
Specifications
- Application: Commercial Specification Grade
- Amperage Rating: 20 A
- NEMA Rating: 5-20R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Connection: Back and Side Wired
- Material: Nylon
- Mounting: Screw Mount
- Dielectric Strength: Withstands 2,000V minimum
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Product Weight: 2.0000 lbs
- Manufacturer Part #: DR20LATR
Features
- Tamper-resistant design enhances safety by preventing unauthorized access
- Style Line® decorator smooth face for aesthetic integration in commercial environments
- Back and side wiring options for flexible installation
- Constructed from durable nylon for long-lasting performance
- Complies with UL and CSA standards for safety and reliability
