Description
HUBBELL CR20ITRP3 CR20ITRP2 W/ RED WH GRN WIRES - Commercial Grade Electrical Receptacle

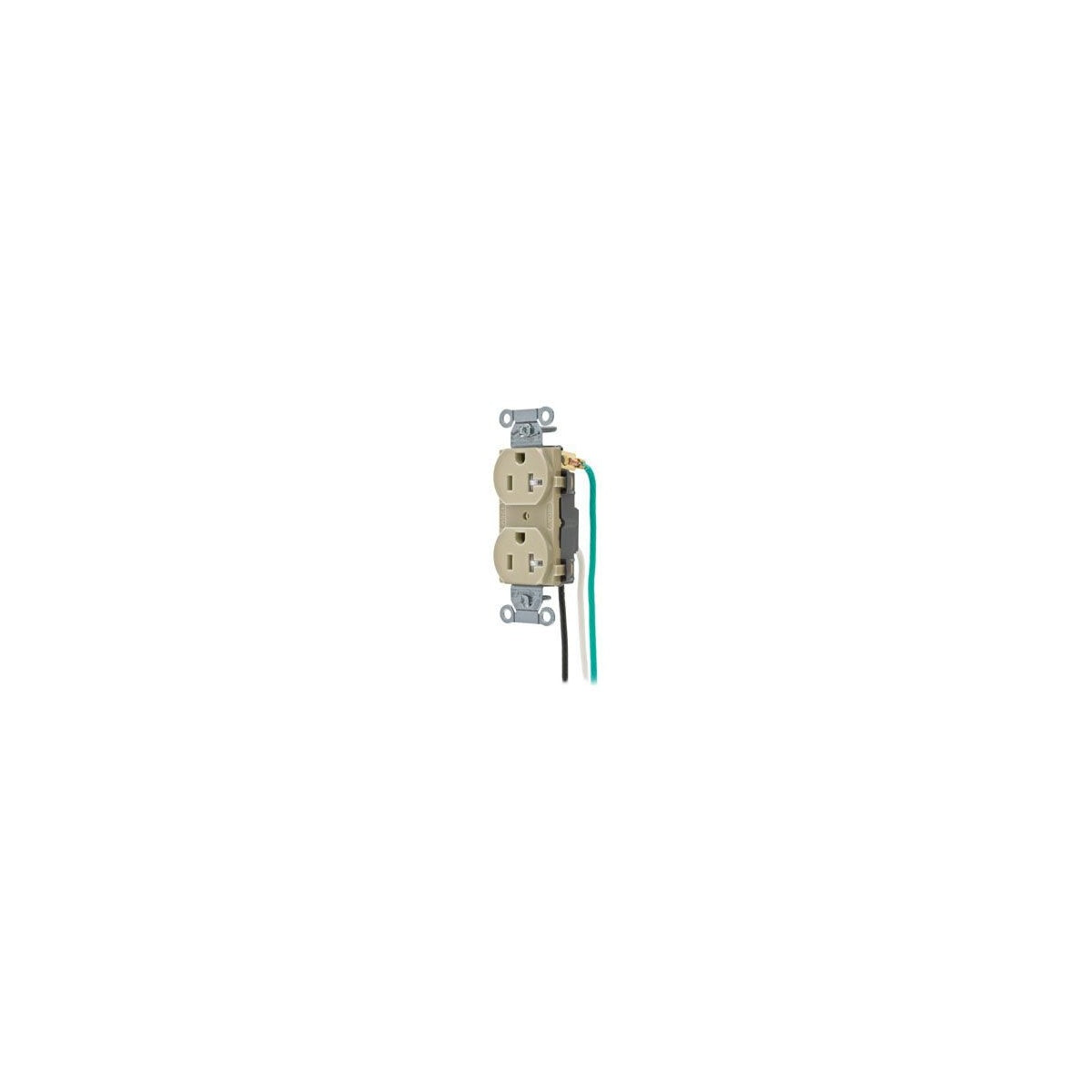

The HUBBELL CR20ITRP3 is a commercial grade, tamper-resistant duplex receptacle designed for reliable electrical distribution in indoor dry environments. It features a smooth thermoplastic face and is pre-wired with stranded wire leads, making it suitable for use by electrical distributors and switchgear suppliers requiring durable and safe wiring solutions. This receptacle complies with NEMA 5-20R standards and is rated for 20 amps at 125 volts.
Specifications
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: CR20ITRP3
- Application: Commercial Grade
- Material: Thermoplastic
- Mounting: Screw Mount
- Connection: Stranded Wire Leads
- NEMA Rating: 5-20R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire Grounding
- Amperage Rating: 20 A
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Product Weight: 0.25 lbs
- UPC: 783585197999
Features
- Tamper-Resistant design for enhanced safety
- Pre-wired with 8" stranded wire leads for straightforward installation
- Self-grounding duplex receptacle
- Smooth thermoplastic face for durability and easy cleaning
- Side wired only configuration
