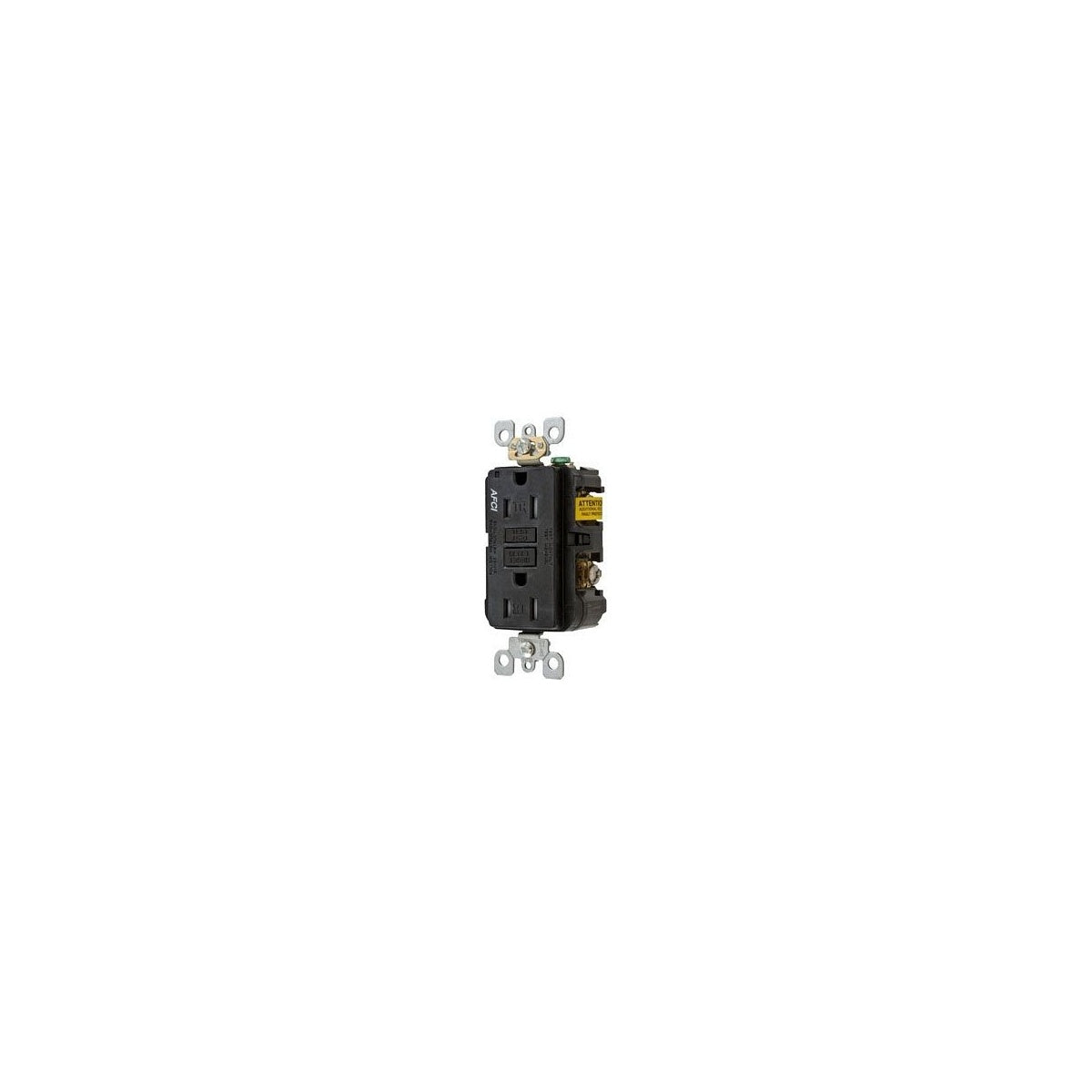

HUBBELL AFR15TRBK 15A Arc Fault Circuit Interrupter Receptacle

The HUBBELL AFR15TRBK is a 15 Amp, 125 Volt Arc Fault Circuit Interrupter (AFCI) receptacle designed to provide branch circuit wiring protection against electrical arc faults. This device is suitable for use by electrical distributors and lighting solutions providers looking for reliable wire and cable protection components or switchgear supplier applications. It meets the 2017 National Electric Code requirements for AFCI protection and is qualified to Federal Specification Listing WC596, ensuring compliance with safety and performance standards.

Specifications

• Amperage: 15 Amp
• Voltage: 120V AC (+10% to 15%) (102V to 132V)
• Rating: 15A 125V, NEMA 5-15R
• Horsepower: 0.5 HP @ Rated Voltage
• Flammability Rating: V2 per UL 94
• Operating Temperature: -35¬∞C to 66¬∞C (-30¬∞F to 150¬∞F)
• Termination: Back and Side Terminal, #14-10 AWG
• Grounding: Self-Grounding Clip
• Configuration: 2 Pole, 3 Wire
• Dimensions: 3.81" (H) x 1.68" (W) x 1.29" (D)
• Product Weight: 2.5 lbs

Features

• Meets or exceeds UL requirements for tripping time on series and parallel arcs
• Tamper-Resistant and self-grounding construction
• Green power ON LED indicator for status monitoring
• Automatic AFCI self-test each time the reset button is pressed
• Lockout feature prevents reset if AFCI functionality is compromised or miswired
• Compatible with copper or copper-clad wire only; not for aluminum wire
• UL1699A, UL498, CSA C22.2 No. 42, and Federal Specification WC-596 certified
