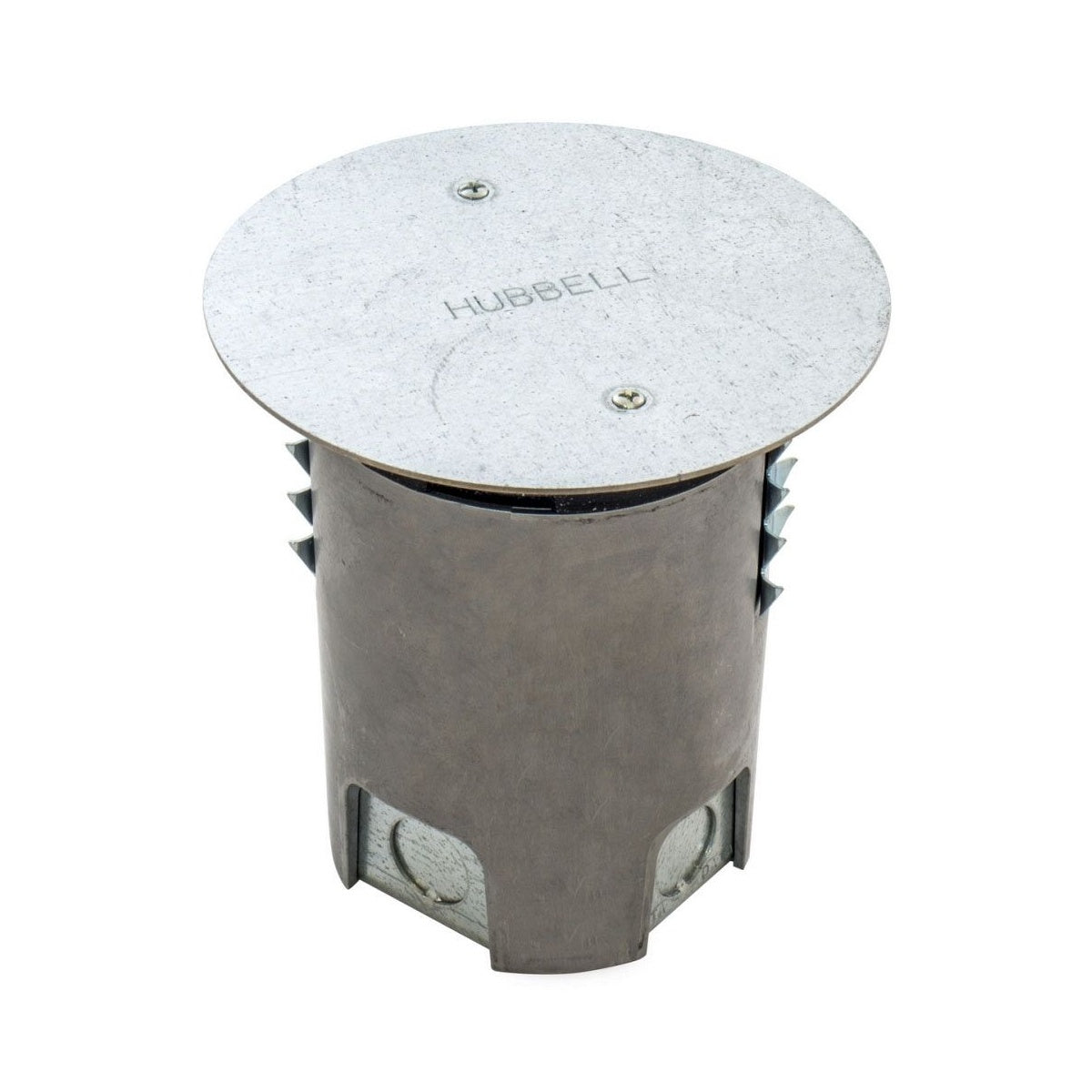

HUBBELL AFBS1R4BASE 4 IN AFB S1R4 with Temporary Cover Floor Box for Raised Access Floor Applications

The HUBBELL AFBS1R4BASE is a recessed 4-inch floor box designed for use with raised access and wood floors in commercial and residential buildings. It provides a secure and recessed enclosure for electrical and data wiring, helping to reduce tripping hazards and protect electrical devices. This product is suitable for electrical distributors and lighting solutions providers needing reliable wire and cable management in floor installations, and is compatible with a variety of S1R4 series device mounting plates for flexible configurations.

Specifications

• Application: For Use with Raised Access Floor Boxes
• Material: Composite
• Construction: Case Iron
• Color: Gray
• Height: 5.65 in
• Mounting: Mechanical Mount
• Knockouts: 4) 1/2", 1) 1/2" - 1"
• Cable Entry: Through Top
• Product Weight: 2.55 lbs
• Manufacturer: Hubbell Building & Automation
• Manufacturer Part #: AFBS1R4BASE

Features

• Designed for installation in a 4-inch diameter hole in raised access or wood floors
• Retained by two sets of retaining barbs for secure placement
• Electrical connections recessed below walking surface to enhance safety and reduce tripping hazards
• Multiple side and bottom knockouts to accommodate various conduit sizes
• Compatible with a range of S1R4 series sub-plates and device mounting plates (sold separately)
• Temporary installation cover included for protection during construction
• Meets ADA requirements for low profile flange thickness
• UL listed and scrubwater compliant
• Plenum rated box assembly suitable for commercial wiring applications
