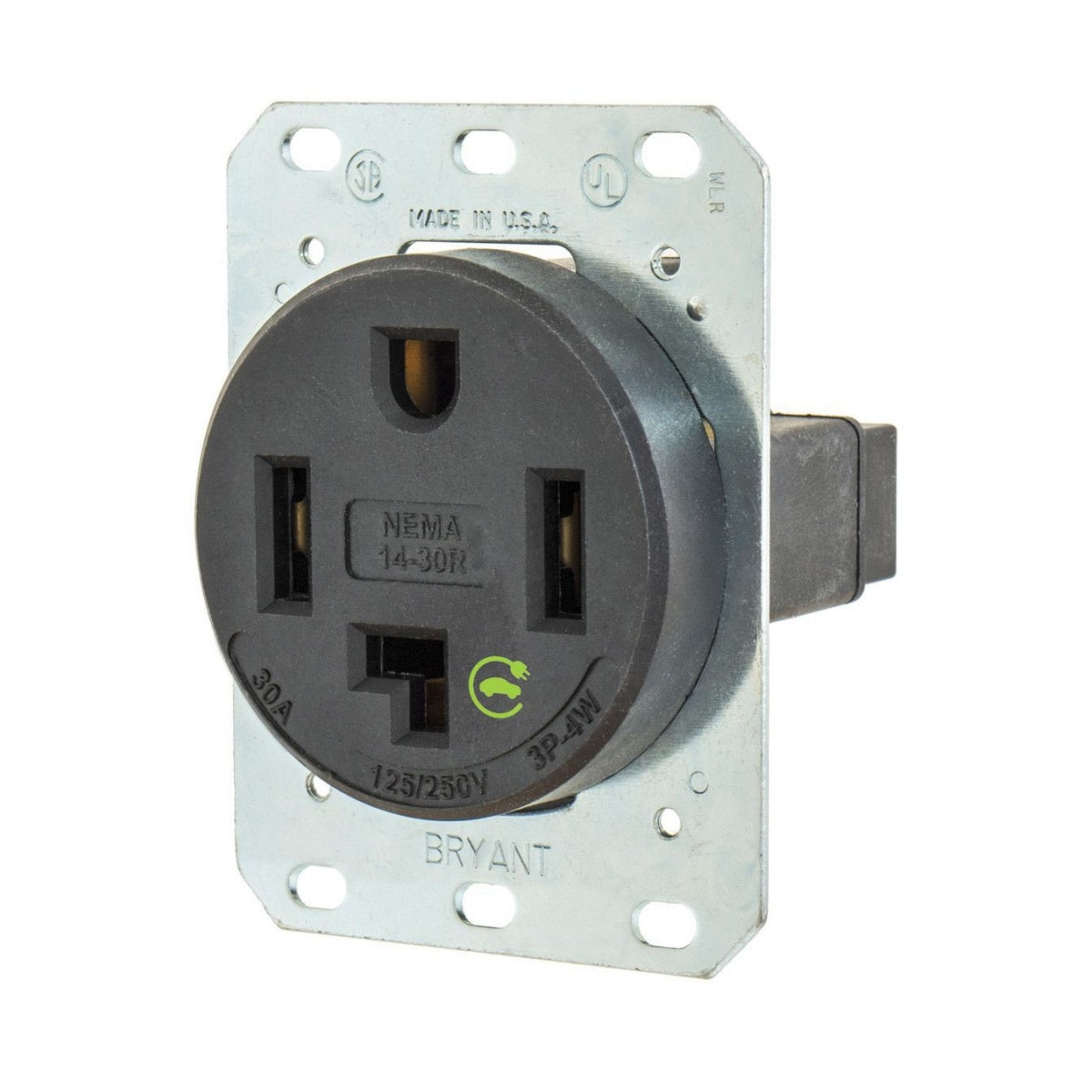

HUBBELL 9430FR RCPT, 30A 125/250V, 14-30R Industrial Grade Receptacle

The HUBBELL 9430FR is a heavy-duty industrial grade receptacle designed for demanding electrical applications. It is a 3-pole, 4-wire device rated for 30 amps and 125/250 volts, suitable for use in indoor dry environments unless additional protection is provided. This product is ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable connections and switchgear components for industrial installations.

Specifications

• Manufacturer: Hubbell Building & Automation
• Manufacturer Part Number: 9430FR
• Application: Industrial Grade
• Amperage Rating: 30 A
• NEMA Rating: 14-30R
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 6.75 lbs
• UPC: 781786675933

Features

• Reinforced thermoplastic polyester face and base for terminal insulation, impact, and heat resistance
• One-piece double wipe power and ground contacts for low resistance and excellent conductivity
• “Lug Type” terminals bundle conductor strands for secure terminations
• Captive Allen head terminal screws permit high clamping pressure and ease of wiring
• Zinc plated mounting strap resists corrosion
• UL Listed and CSA Certified for safety and reliability
• NEMA line numbers and ratings molded into the face for easy identification
• Terminals are backed out and ready for wiring, with strip gauge for accurate wiring
