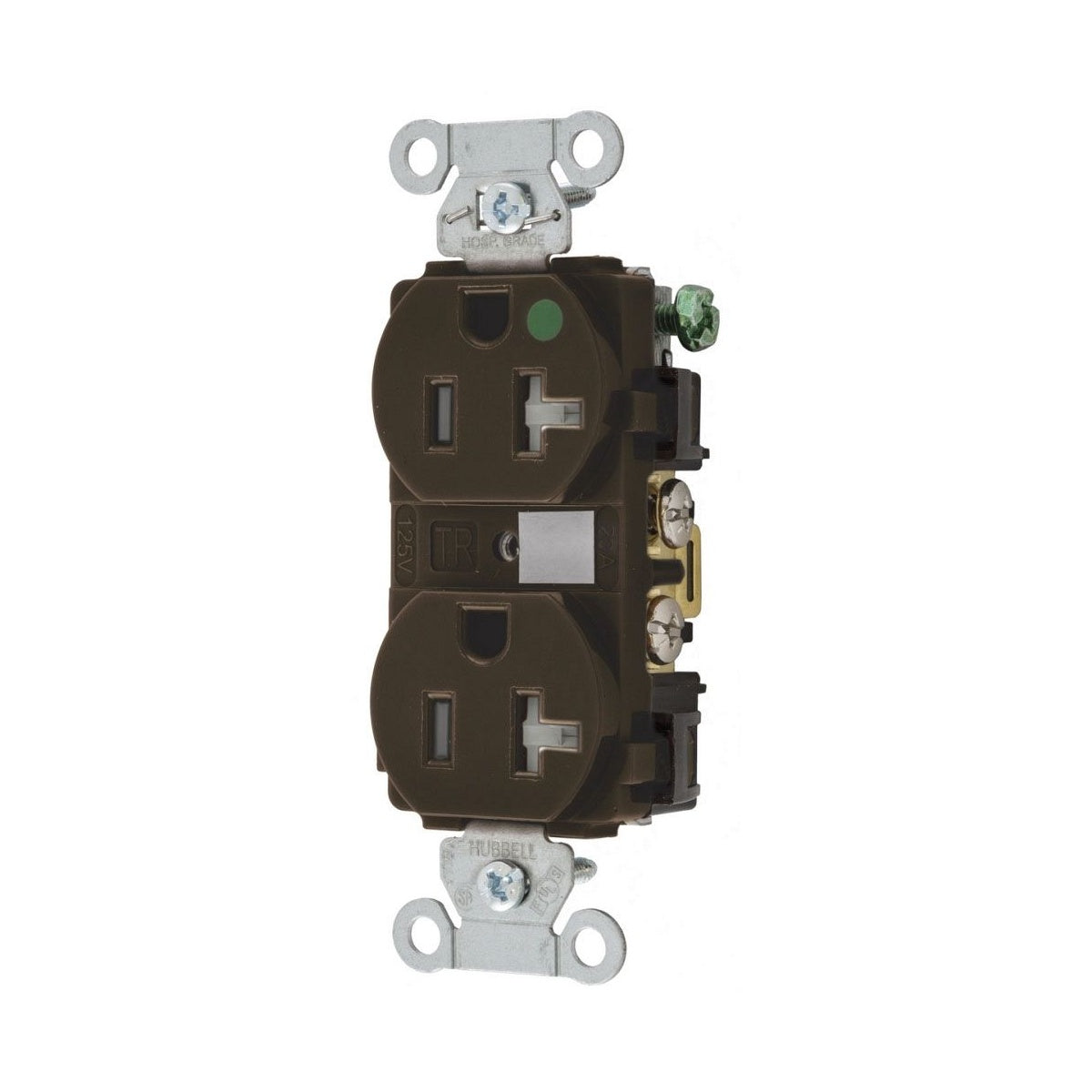

HUBBELL 8300TRA HUBBELL-PRO HG DPLX 20A/125V TR BR Electrical Receptacle

The HUBBELL 8300TRA is a Hubbell-Pro heavy duty hospital grade duplex receptacle designed for reliable electrical distribution in healthcare and commercial environments. This tamper-resistant device is suitable for indoor dry locations and is built to meet the demanding requirements of lighting solutions, wire and cable installations, and switchgear supplier applications.

Specifications

• Application: Hubbell-Pro Heavy Duty Hospital Grade
• Amperage Rating: 20 A
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Nylon
• Mounting: Mounting Screws
• Connection: Terminal Screws
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry unless protected by additional means
• Product Weight: 2.35 lbs
• Manufacturer: Hubbell Building & Automation
• Manufacturer Part #: 8300TRA

Features

• Hospital grade tamper-resistant receptacle for enhanced safety
• Smooth nylon face for durability and easy cleaning
• Back and side wiring capability for flexible installation
• Galvanized steel mounting strap with automatic self-grounding staple (per catalog details)
• Assembled in the USA ensuring quality and compliance

Downloads & Links

• Spec Sheet
