Hubbell Building & Automation
HUBBELL 5352AB RCPT DUP SB HUBPRO 20A 125V SF BR
SKU: #136640
Part: #5352AB
UPC: 783585109756
Description

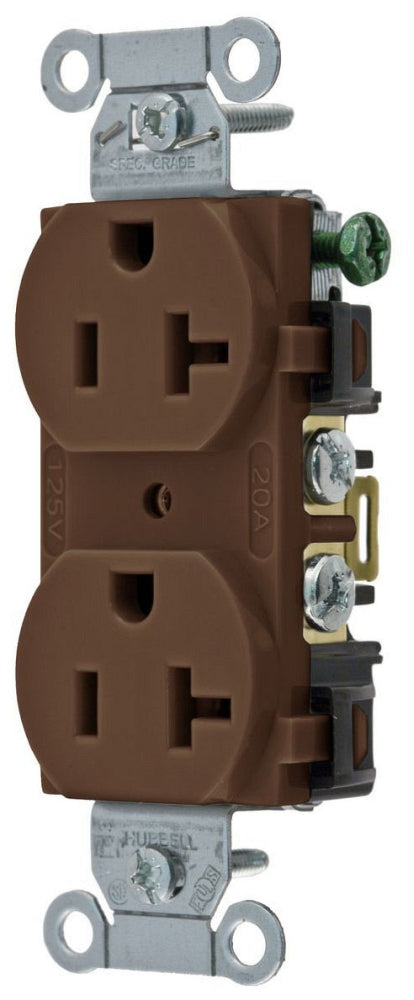

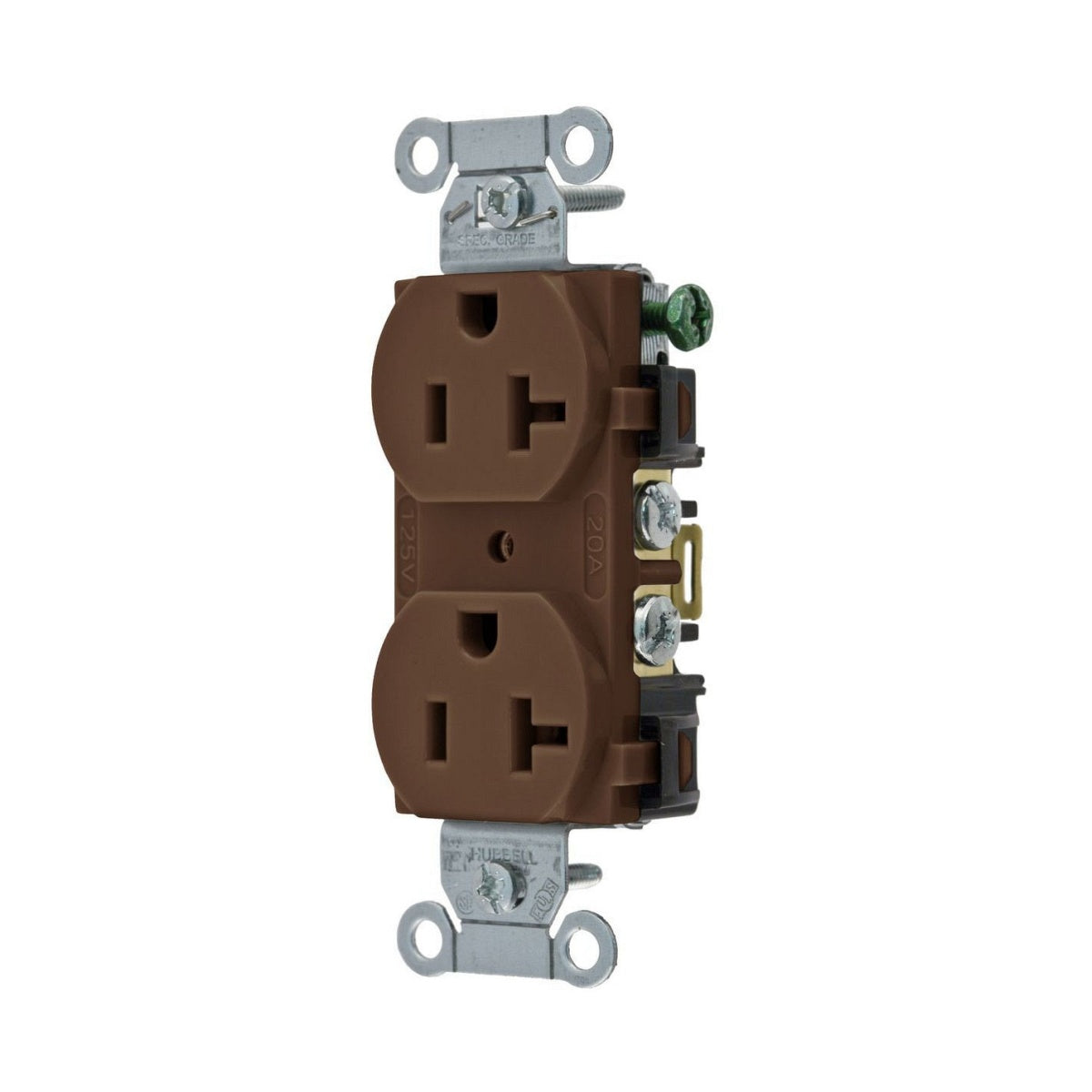

HUBBELL 5352AB RCPT DUP SB HUBPRO 20A 125V SF BR Electrical Receptacle
The HUBBELL 5352AB is a heavy duty, specification grade duplex receptacle designed for electrical distributors and lighting solutions requiring reliable wire and cable connections. It is suitable for indoor dry environments and supports 20 ampere, 125 volt applications, commonly used in commercial and industrial switchgear installations.
Specifications
- Application: Hubbell-Pro Heavy Duty
- Amperage Rating: 20 A
- NEMA Rating: 5-20R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Material: Thermoplastic/Composite
- Mounting: Screw Mount
- Connection: Back and Side Wired
- Dielectric Strength: Withstands 2,000V minimum
- Environmental Conditions: Indoor Dry unless protected by additional means
- Product Weight: 0.4830 lbs
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: 5352AB
Features
- Specification grade receptacle for durable, heavy duty use
- Back and side wired for flexible installation options
- Thermoplastic/composite construction for electrical safety and durability
- Screw mounting for secure attachment in electrical boxes
- Meets UL, CSA, and Federal Specifications for quality and safety
- Compatible with #14 - #10 AWG copper wire
