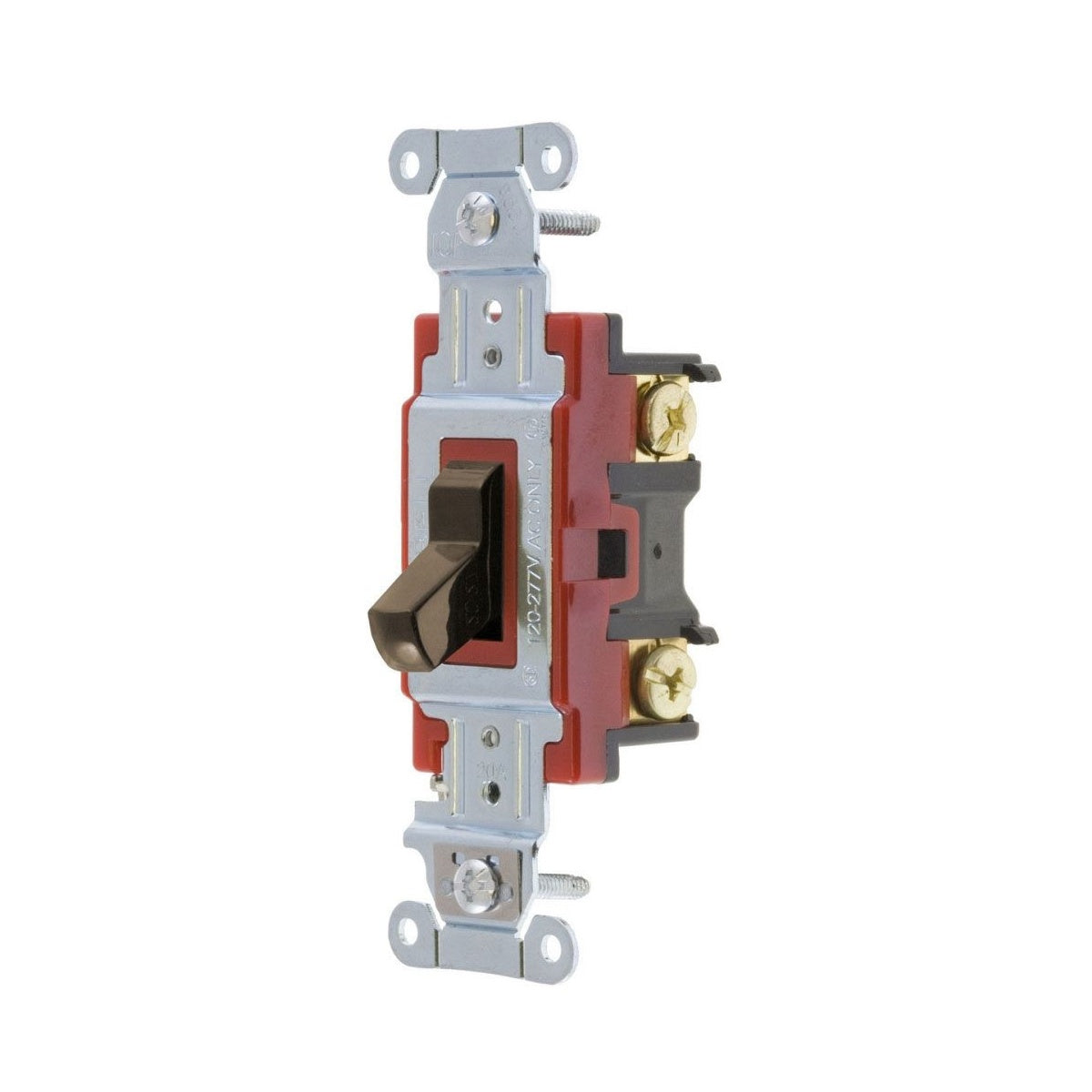

HUBBELL 1224B SWITCH HUBPRO 4-WAY 20A 120/277V BR Electrical Switch

The HUBBELL 1224B Switch Hubpro is a heavy-duty electrical switch designed for industrial and commercial applications. It supports 20 ampere current at 120/277 volts AC and is suitable for back and side wired connections. This switch is ideal for use by electrical distributors and switchgear suppliers requiring reliable and durable switching solutions in indoor dry environments.

Specifications

• Manufacturer: Hubbell Building & Automation
• Manufacturer Part #: 1224B
• Amperage Rating: 20 A
• Voltage Rating: 120/277 V AC
• Contact Rating: Per UL 20
• Number of Poles: Double Pole
• Contact Configuration: Two Position
• Operating Cycles: 50,000 Cycles
• Connection Type: Back and Side Wired
• Mounting: Screw Mount
• Environmental Conditions: Indoor Dry unless protected by additional means
• Dimensions (L x W x H): 4.2 in x 1.9 in x 1.6 in
• Product Weight: 0.1500 lbs
• Action: DPDT (Double Pole Double Throw)
• Enclosure: None
• Insulation: None

Features

• Heavy-duty industrial grade switch designed for 20A, 120/277V AC applications
• Double pole configuration with two-position contact for versatile switching
• Back and side wired terminals for flexible installation
• Screw mount design for secure and stable mounting
• Durable construction rated for 50,000 operating cycles to ensure long service life
• Suitable for indoor dry environments, with no enclosure or insulation included
