Hubbell Building & Automation
HUBBELL 1223B SWITCH HUBPRO 3-WAY 20A 120/277V BR
SKU: #136108
Part: #1223B
UPC: 783585835303
Hubbell Building & Automation
HUBBELL 1223B SWITCH HUBPRO 3-WAY 20A 120/277V BR
SKU: #136108
Part: #1223B
UPC: 783585835303
Description

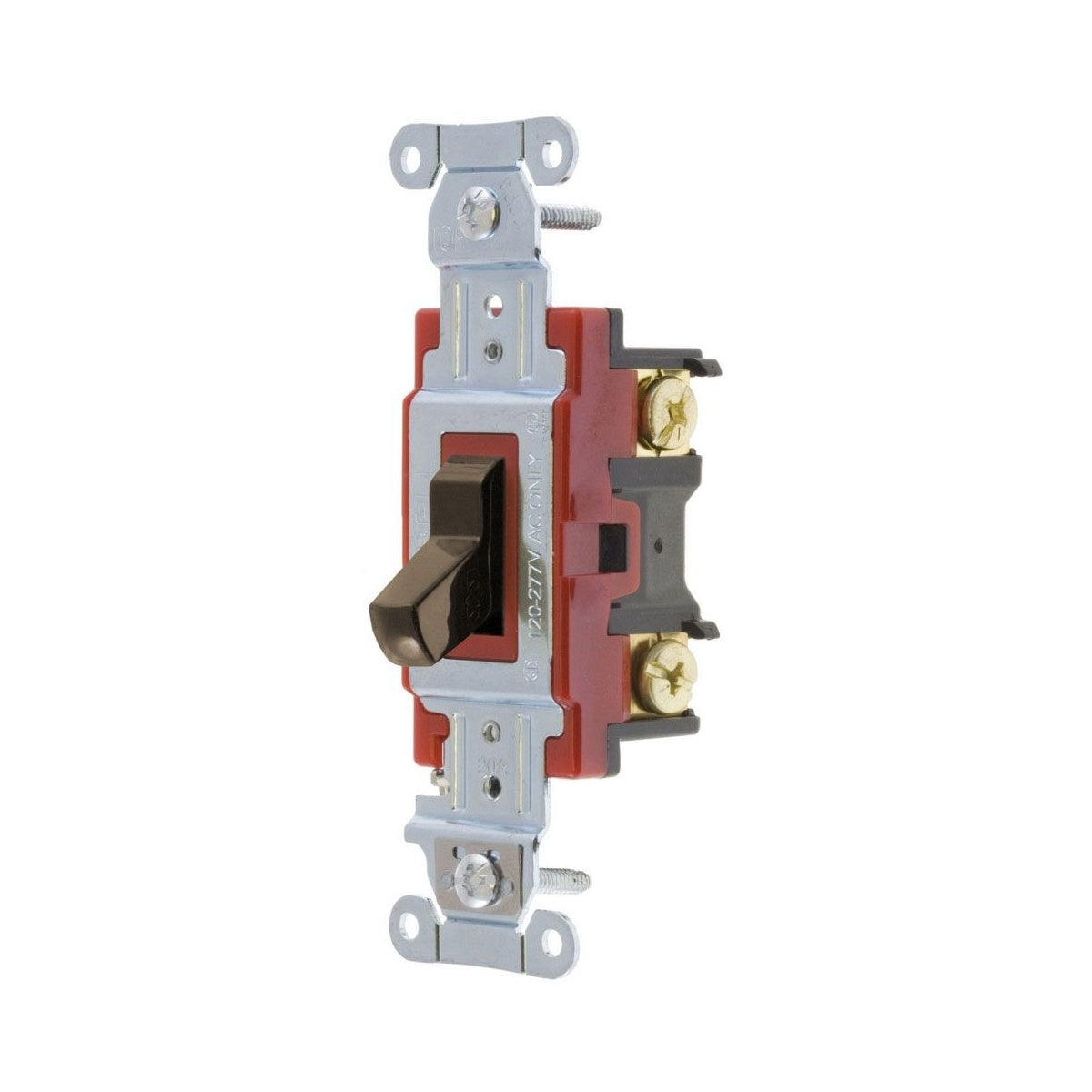

HUBBELL 1223B Switch HubPro 3-Way 20A 120/277V BR Electrical Switch
The HUBBELL 1223B Switch HubPro is a heavy-duty industrial-grade toggle switch designed for 3-way electrical switching applications. It supports 20 ampere current at 120/277 volts AC, suitable for indoor dry environments unless additional protection is provided. This switch is engineered for reliable operation with a robust SPDT (Single Pole Double Throw) contact configuration, ideal for electrical distributors and lighting solutions requiring durable wire and cable connections. The device features back and side wiring for flexible installation and screw mounting for secure attachment in switchgear assemblies.
Specifications
- Manufacturer: Hubbell Building & Automation
- Manufacturer Part #: 1223B
- Amperage Rating: 20 A
- Voltage Rating: 120/277 V AC
- Contact Configuration: Two Position SPDT
- Number of Poles: Single Pole
- Contact Rating: Per UL 20
- Operating Cycles: 50,000 Cycles
- Mounting: Screw Mount
- Connection: Back and Side Wired
- Enclosure: None
- Insulation: None
- Environmental Conditions: Indoor Dry unless protected by additional means
- Product Weight: 0.2 lb
- UPC: 783585835303
Features
- Heavy-duty toggle mechanism suitable for industrial use
- Back and side wired terminals for versatile installation options
- Designed for 3-way switching applications with SPDT action
- Durable construction supporting 50,000 operating cycles
- Compatible with standard screw mount switchgear panels
