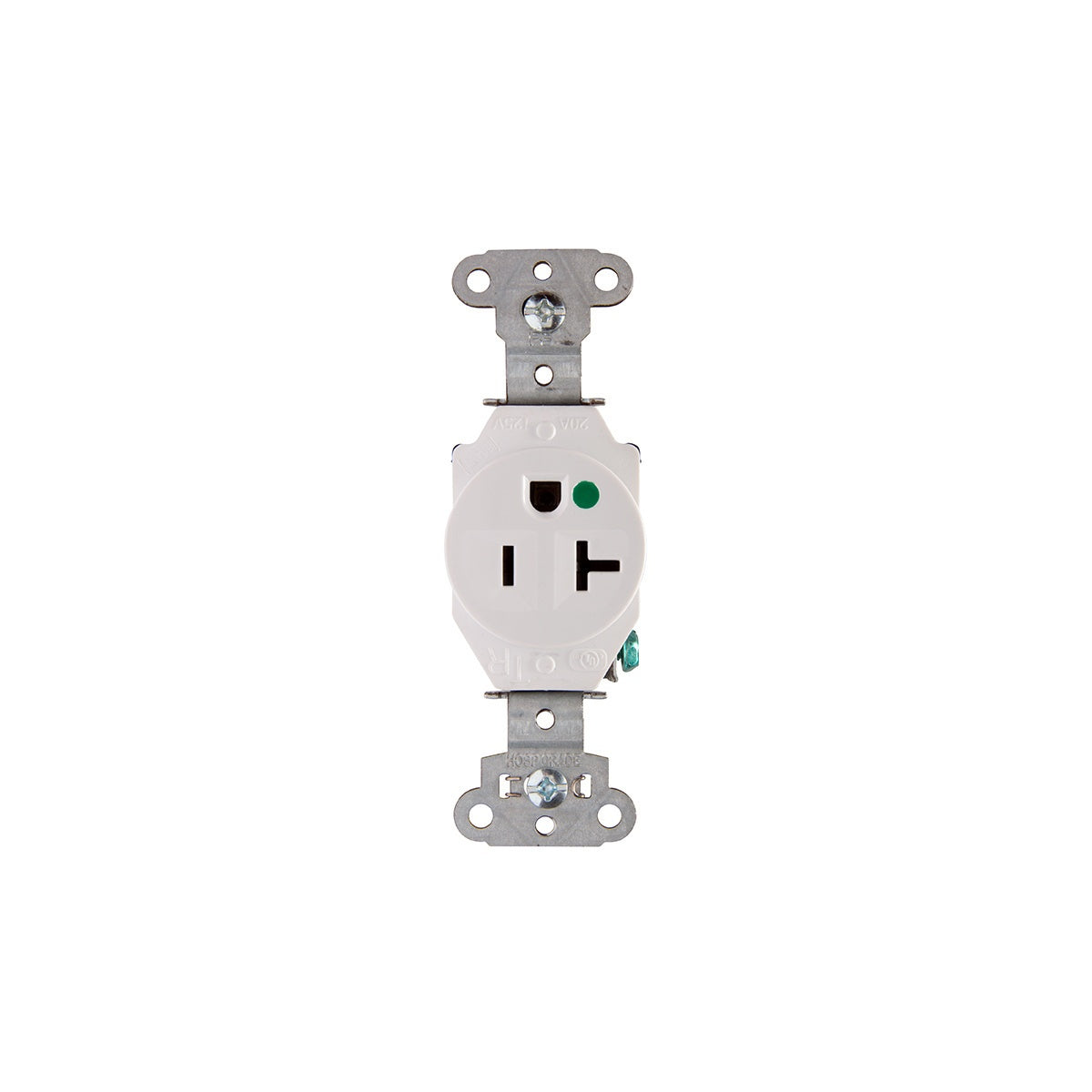

Hospital Grade Single Receptacles Tamper Resistant, Back and Side Wire, 20A, 125V, White

This Pass & Seymour hospital grade single receptacle is designed for reliable electrical distribution in healthcare, education, and institutional settings. It features tamper-resistant construction with a dual mechanical shutter system to prevent foreign object insertion, supporting safety standards for sensitive environments. Suitable for back and side wiring, this 20 amp, 125 volt receptacle offers durable performance and ease of installation, making it an ideal choice for electrical distributors and switchgear suppliers focusing on lighting solutions and wire and cable systems.

Specifications

• Manufacturer: Pass & Seymour
• Manufacturer Part #: TR8301W
• Voltage Rating: 125V
• Current Rating: 20A
• Color: White
• Dimensions: 1.32 in (Width) x 1.68 in (Height) x 1.9375 in (Length)
• Material: Nylon face, PVC back body, brass line contacts, zinc-plated steel mounting strap
• UL Listed (File Number E140596, UL498)
• CSA Certified (File Number LR16063, CSA-C22.2 No. 42)
• Federal Specification WC596, Hospital Grade
• Operating Temperature: -40¬∞C to +60¬∞C
• Flammability Rating: UL94 V2
• Terminal Accommodation: #14 AWG to #10 AWG copper conductor only
• Warranty: 1 Year
• Country of Origin: Mexico

Features

• Durable, .032 inch thick, brass triple-wipe power contacts for lasting retention
• Heavy-duty, zinc-plated steel strap for enhanced strength and corrosion resistance
• Tri-drive steel terminal screws with internal screw-pressure-plate for back and side wiring flexibility
• Two drive screws anchor strap to back body and face for maximum removal torque resistance
• Strap tabs wrap around face to prevent separation of strap from face and back body
• Auto-ground clip eliminates the need to terminate grounding conductor to device
• Dual mechanical shutter system to prevent insertion of foreign objects, enhancing tamper resistance
• Ratings permanently marked on device for easy identification
