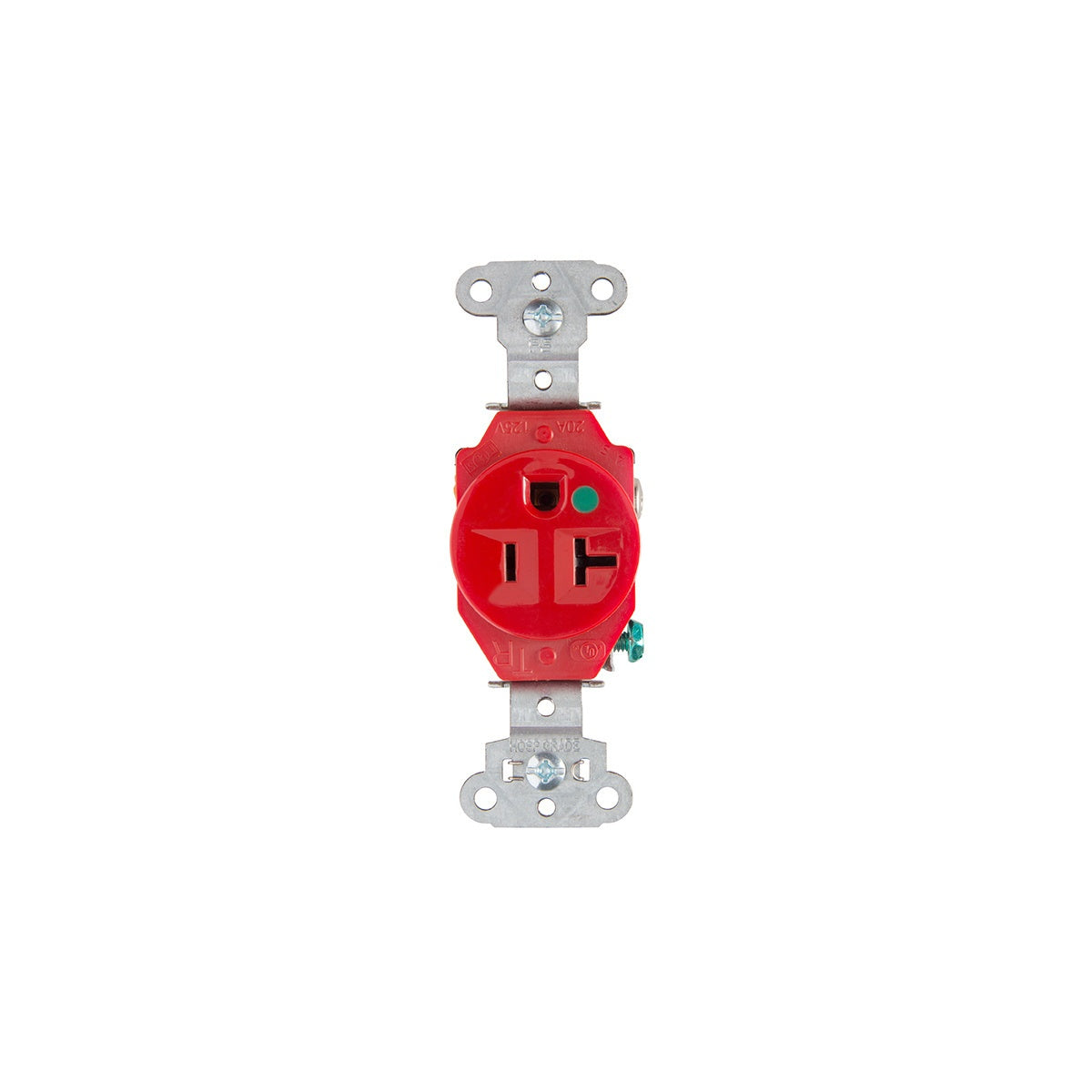

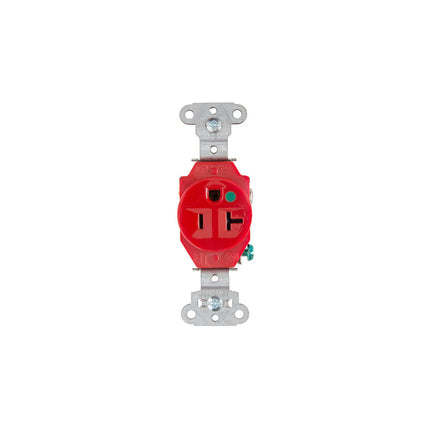

Hospital Grade Single Receptacles Tamper Resistant, Back and Side Wire, 20A, 125V, Red
SKU: #320872
Part: #TR8301RED
UPC: 785007030877
Hospital Grade Single Receptacles Tamper Resistant, Back and Side Wire, 20A, 125V, Red
SKU: #320872
Part: #TR8301RED
UPC: 785007030877
Total Price: $35.82 per each Sold in increments of 1 each
Description
Hospital Grade Single Receptacles Tamper Resistant, Back and Side Wire, 20A, 125V, Red
This Pass & Seymour hospital grade single receptacle is designed for reliable electrical connections in healthcare, education, and institutional settings. It features tamper-resistant construction with a dual mechanical shutter system to prevent foreign object insertion, meeting the safety needs of sensitive environments. Suitable for use by electrical distributors and switchgear suppliers, this receptacle supports back and side wiring to facilitate installation and wiring flexibility.
Specifications
- Manufacturer: Pass & Seymour
- Manufacturer Part #: TR8301RED
- Voltage Rating: 125V
- Current Rating: 20A
- Color: Red
- Dimensions: 1.32 in (W) x 1.68 in (H) x 1.9375 in (L)
- Country of Origin: Mexico
- Material: Nylon face, PVC back body, brass line contacts (.032 inch thick), zinc-plated steel mounting strap
- UL Listed (File Number E140596), CSA Certified (File Number LR16063)
- Dielectric Voltage Withstands 2000V minimum
- Operating Temperature: -40°C to +60°C continuous
- Terminal Accommodation: #14 AWG – #10 AWG copper conductors
- Warranty: 1 Year
Features
- Durable triple-wipe brass power contacts for lasting retention
- Tri-drive steel terminal screws with internal screw-pressure-plate for back and side wiring
- Two back wire holes for enhanced wiring flexibility
- Heavy-duty zinc-plated steel mounting strap for added strength
- Strap tabs wrap around face to prevent separation of strap from body
- Two drive screws anchor strap to back body and face to resist removal torque
- Auto-ground clip eliminates need to terminate grounding conductor separately
- Dual mechanical shutter system enhances tamper resistance
- Certified for current interrupting at full rated current
- Ratings permanently marked on device for easy identification
