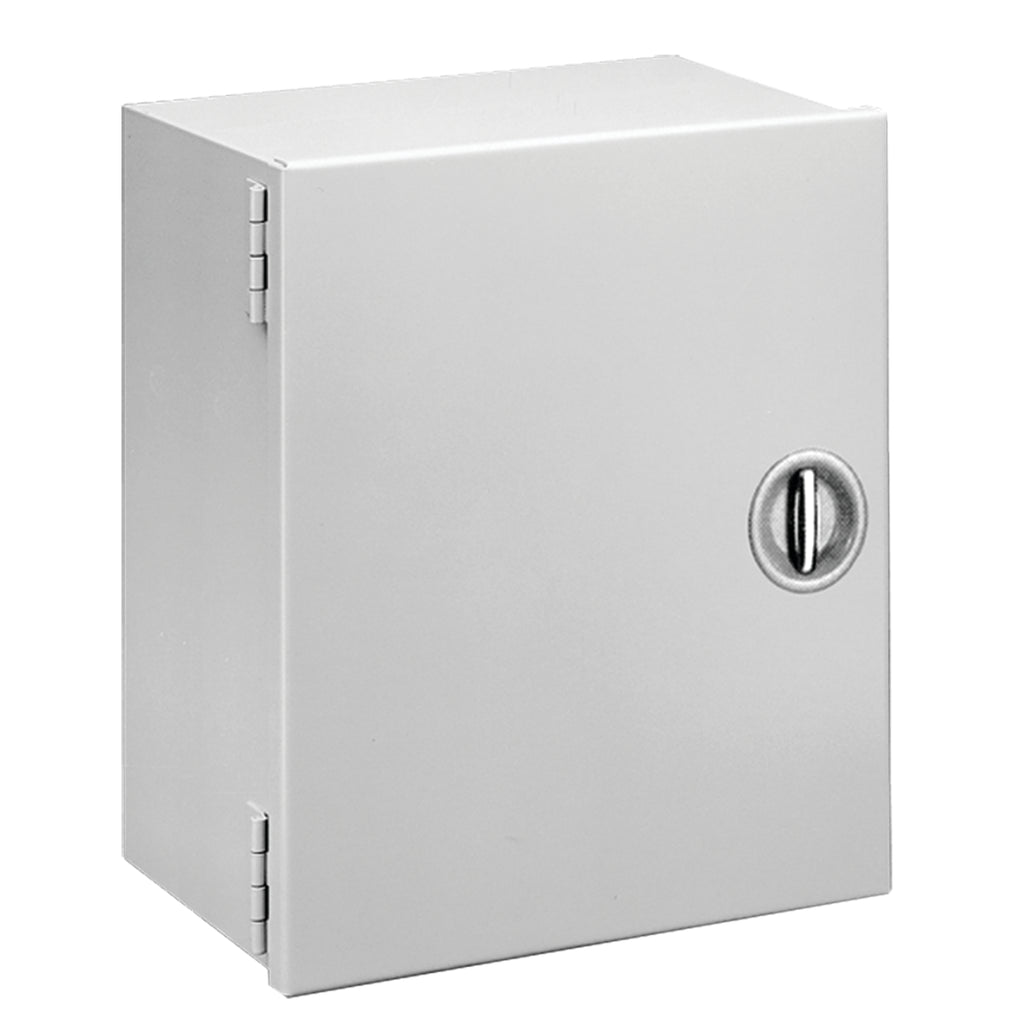

Features

• Butt hinges on door
• Mounting holes on back of enclosure
• Flush cover and offset body
• Recessed T-handle latch is flush with door

Specifications

• Length: 35.00 inch
• Width: 25.25 inch
• Height: 10.00 inch
• Weight: 55.00 pound
• Height (H) (inch): 30
• Height (H) (millimetre): 762
• Width (W) (inch): 24
• Width (W) (millimetre): 610
• Depth (D) (inch): 8.62
• Depth (D) (millimetre): 219
• Protection Rating: NEMA Type 1
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness (T) (gauge): 14
• Thickness (T) (millimetre): 1.9
• Gauge (gauge): 14
• Panel: A30N24MP
• Panel Gauge: 12
• Stud Quantity: 6
• Panel Size (D x E) (inch): 26.00 x 22.50
• Panel Size (D x E) (millimetre): 660 x 572
• Mounting (G x H) (inch): 27.50 x 16.75
• Mounting (G x H) (millimetre): 699 x 425
• NEMA Rating: 1 Indoor, electrical protection
• Modification Services: Yes
• Type Number: Type 1
• IP Rating: IP30
• Weight (pound): 55
• Size: 30.00x24.00x8.62 in
