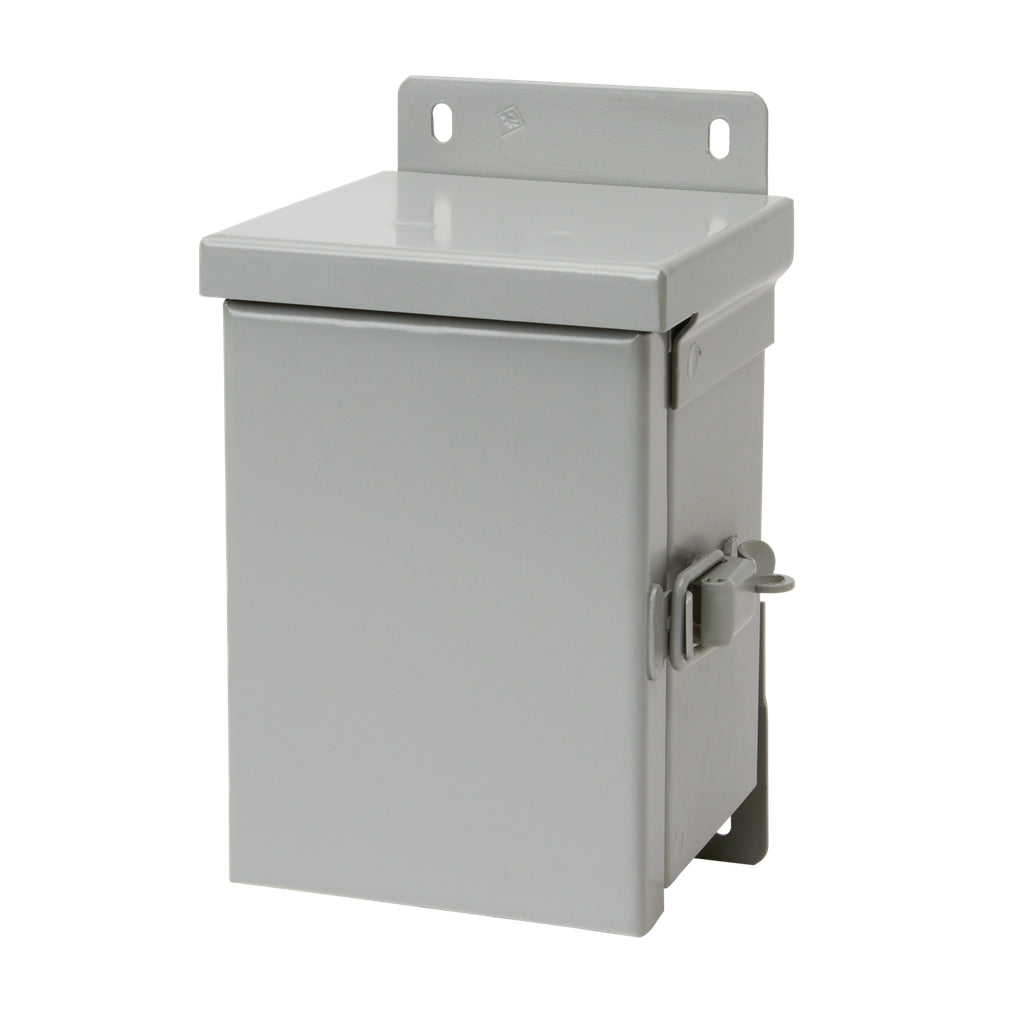

Hinge-Cover Small Drip-Shield Enclosure Type 3R, 12.00x12.00x6.00, Gray, Steel - Rain-Tight Electrical Enclosure

This Hinge-Cover Small Drip-Shield Enclosure Type 3R is designed to protect wiring and electrical components in outdoor applications, providing rain-tight and water-rated protection. Suitable for electrical distributors and switchgear suppliers, it meets the requirements for protection from rain, sleet, snow, or dripping water. The enclosure is constructed from steel with a powder coat finish, ensuring durability in harsh environments.

Specifications

• Manufacturer: nVent Hoffman
• Manufacturer Part #: A12R126HCR
• Enclosure Type: 3R
• Material: Steel
• Finish: ANSI 61 gray polyester powder coat
• Color: Gray (ANSI 61)
• Dimensions (WxHxD): 13.00 inch x 14.00 inch x 6.50 inch
• Depth: 152 millimeters
• Weight: 12.7 lbs
• Country of Origin: Mexico

Features

• Drip-shield top and seam-free sides, front, and back for enhanced water protection
• Plated steel hinge with stainless steel pin for durability
• Weldnuts provided for mounting optional panels
• Provisions for padlocking on zinc-plated draw-pull catch
• Knockouts on bottom of enclosure for conduit entry
• No gasketing required
