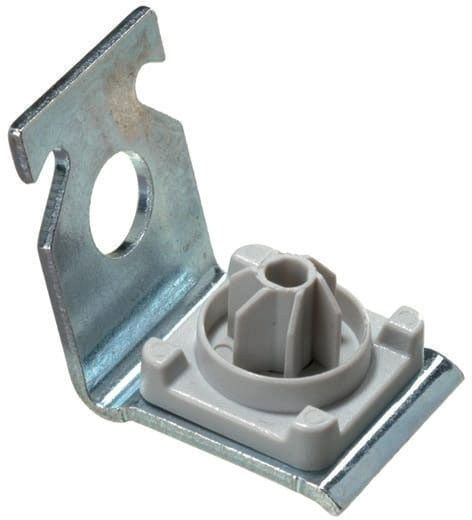

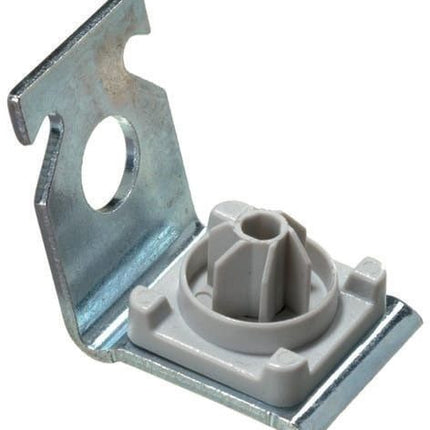

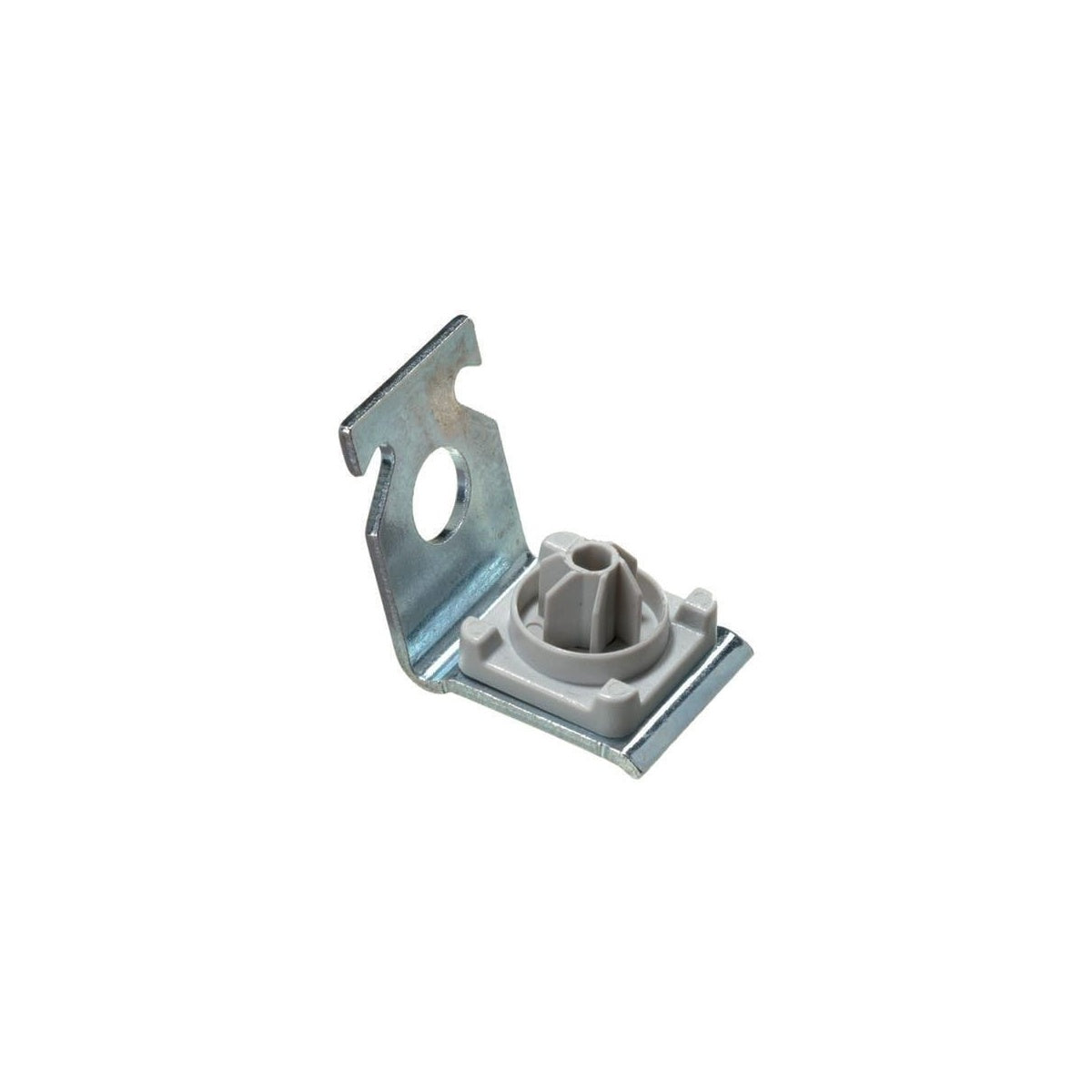

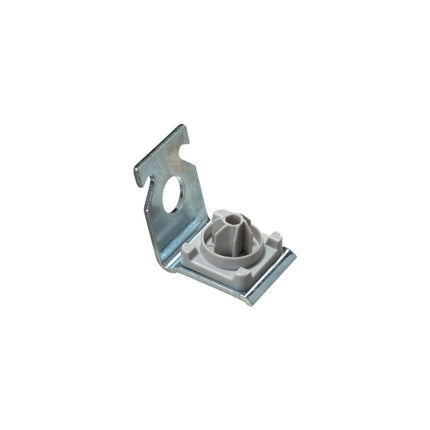

HILTI 00228342 Ceiling Clip X-ECC MX – Electrical Ceiling Clip for Cable and Conduit Support

The HILTI 00228342 Ceiling Clip X-ECC MX is a metal ceiling clip designed for light-duty electrical and mechanical fastenings on ceilings. It is suitable for use with collated fasteners and is compatible with cable trays and electrical applications. This clip is intended for electrical distributors and switchgear suppliers requiring reliable ceiling support for wire and cable installations in commercial and industrial environments.

Specifications

• Manufacturer: HILTI INC.
• Manufacturer Part #: 228342
• Product Weight: 10.63 lbs
• Fastener Material: Carbon steel with 5 ¬µm zinc plating
• Clip/Hanger Material: Carbon steel and plastic
• Clip/Hanger Plating: 5 ¬µm zinc
• Compatible Fastener: X-P 20 B3 (battery actuated)
• Fastener Shank Diameter: 0.118 in (3.0 mm)
• Fastener Thread Type: UNC 1/4-inch
• Allowable Load (Tension) in Concrete: 80 lb (0.36 kN)
• Allowable Load (Shear) in Concrete: 40 lb (0.18 kN)
• UL/cUL Listed per NEC requirements

Features

• Metal ceiling clip designed for light-duty electrical and mechanical fastenings on ceilings
• Compatible with collated battery actuated fasteners (X-P 20 B3)
• Constructed from carbon steel and plastic with zinc plating for corrosion resistance
• Suitable for use with cable trays and electrical conduit support
• UL/cUL listed, meeting safety and performance standards for electrical installations
• Provides reliable attachment to concrete ceilings with controlled allowable loads
• Lightweight design facilitating installation by electrical distributors and lighting solution providers
