High Bay Occupancy Sensor For Wet Locations, 120/277V, 60Hz, w/IR - Wet Location Lighting Control Sensor

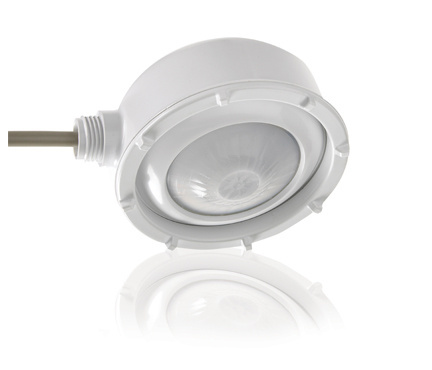

The WattStopper High Bay Occupancy Sensor HB350W is designed for automatic lighting control in wet location medium and high bay applications such as warehouses. This sensor module operates at 120/277 VAC, 60 Hz, and utilizes passive infrared (PIR) technology with interchangeable lenses to provide customizable coverage patterns. It is suitable for electrical distributors and lighting solutions providers seeking reliable occupancy detection for controlling lighting loads in industrial and commercial environments.

Specifications

• Voltage: 120/277 VAC, 60 Hz
• Load Capacity: 0-800 W ballast and tungsten @ 120 VAC, 0-1200 W ballast @ 277 VAC, or 1/6 hp motor
• Power Consumption: 0.36 W
• Operating Temperature: -40°F to 158°F (-40°C to 70°C)
• Weight: 0.52 lbs (8 oz / 226.8 g)
• Dimensions: 4.0 in (W) x 4.0 in (D) x 2.0 in (H)
• UL and cUL Listed, UL Rated Rain-tight (UL244A and UL508)
• IP65 Rated for wet locations (indoor and outdoor)
• Country of Origin: China
• Manufacturer Part Number: HB350W

Features

• Modular design consisting of a sensor module and interchangeable lens for flexible coverage patterns
• Designed for mounting directly to wet location junction boxes, conduit hubs, or fixture ends using a 1/2” threaded nipple
• Adjustable sensitivity and time delay settings via DIP switches behind the lens (factory preset to 100% sensitivity and 15-minute time delay)
• Compatible with three wet-rated lenses (HBL2W, HBL3W, HBL7W) providing coverage for mounting heights between 8 and 40 feet
• Polycarbonate construction with flame retardant, UV resistant, impact resistant, and RoHS-compliant materials
• Suitable for controlling lighting loads in warehouses and other industrial high bay applications
• Five-year warranty provided by WattStopper
