High Bay Low Voltage Sensor w/Back Box, 24VDC - Occupancy Sensor for Lighting Control

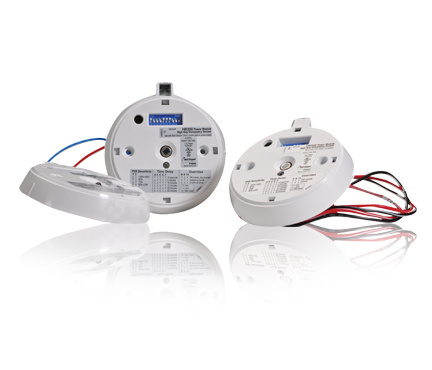

The High Bay Low Voltage Sensor w/Back Box, 24VDC (Model HB300-B) by WattStopper is a passive infrared (PIR) occupancy sensor designed for automatic lighting control in high bay indoor spaces such as warehouses, distribution centers, and gymnasiums. This sensor is intended for use by electrical distributors and lighting solutions providers who require reliable occupancy detection for energy-efficient lighting control. It operates at 24VDC low voltage and requires a compatible BZ series power pack for operation.

Specifications

• Voltage: 24 VDC (low voltage)
• Power Consumption: 11mA @ 24 VDC
• Operating Temperature: 32°F to 158°F (0°C to 70°C)
• Operating Humidity: 5% to 95%, non-condensing
• Weight: 6.4 oz (181 g)
• Materials: ABS, flame retardant, UV resistant, impact resistant
• Certifications: UL and cUL listed
• Warranty: Five year
• Country of Origin: China

Features

• Modular design with separate Power Module and interchangeable lenses
• Compatible with four lens options (HBL1, HBL2, HBL3, HBL7) for coverage at mounting heights from 8 to 40 feet
• Snap-in mounting hardware with easy installation using knockout at end of fluorescent high bay luminaires
• Adjustable time delay (factory preset at 15 minutes) and sensitivity (factory preset medium) via DIP switches
• LED indicator for occupancy detection verification
• Hardware choices for adjustability or static mount
• Multi-cell, multi-tier Fresnel lenses providing asymmetric 2-way and 360° coverage patterns
• Zero crossing circuitry to reduce relay stress and extend sensor life
• Detection signature analysis for immunity to radio frequency interference (RFI) and electromagnetic interference (EMI)
• ASIC technology reducing components and enhancing reliability
• Pulse Count Processing to eliminate false offs without reducing sensitivity
• Recyclable materials compliant with RoHS
