High Bay Control Module, 347/480VAC, Power Module & Mounting Box – High Bay Occupancy Sensor

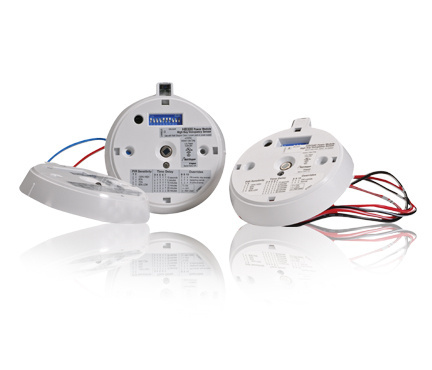

The High Bay Control Module HB340-B by WattStopper is a passive infrared (PIR) occupancy sensor designed for automatic lighting control in warehouse and indoor high bay applications. This modular sensor system consists of a Power Module and a mounting back box, intended for 347/480VAC line voltage operation. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers looking for reliable occupancy sensing solutions for high bay fixtures.

Specifications

• Voltage: 347/480VAC, 60Hz
• Load Rating: 5 Amp ballast @ 347/480 VAC
• Power Consumption: 0.34W
• Operating Temperature: 32°F to 158°F (0°C to 70°C)
• Operating Humidity: 5% to 95%, non-condensing
• Dimensions: 6.0 in (W) x 6.0 in (D) x 2.57 in (H)
• Product Weight: 0.4 lb (181 g)
• Material: ABS, flame retardant, impact resistant, recyclable, RoHS compliant
• Country of Origin: China
• UL and cUL Listed
• Five-year warranty

Features

• Modular design with separate Power Module and mounting back box (HBNB3)
• Compatible with four interchangeable lenses for tailored coverage from 8 to 40 feet mounting heights
• Snap-in mounting hardware for easy installation on high bay fixtures
• DIP switch adjustable PIR sensitivity and time delay settings (factory default: 85% sensitivity, 15-minute time delay)
• Designed for surface mounting via two screw holes or using the provided back box and chase nipple
• Suitable for indoor use in warehouse and high bay environments
• Integrated passive infrared sensor for occupancy-based on/off lighting control
