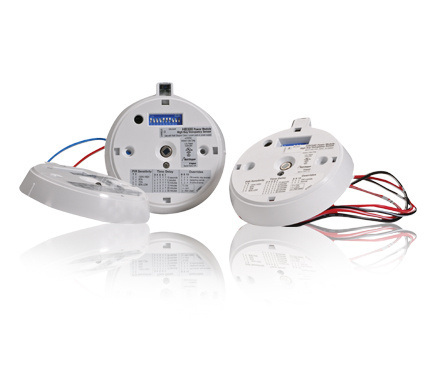

High Bay Base Module, Cold Temperature Applications, 24VDC/VAC - High Bay Occupancy Sensor

The WattStopper High Bay Base Module HB300C-B is designed for automatic lighting control in high bay applications, specifically engineered for cold temperature environments. It operates at low voltage (24VDC/VAC) and integrates with modular lenses to provide reliable occupancy detection and lighting control in industrial settings. This sensor is suitable for electrical distributors and lighting solution providers focusing on wire and cable compatibility and switchgear suppliers requiring precise occupancy-based lighting management.

Specifications

• Manufacturer: WattStopper
• Model Number: HB300C-B
• Voltage: 24 VDC/VAC (Low Voltage)
• Operating Temperature: -40°F to 131°F (-40°C to 55°C) for cold environment models
• Weight: 0.31 lb (approx. 6.4 oz / 181 g)
• Mounting: Surface mount, snap-in connector mounts through 1/2” knockout with 18” leads
• Coverage: Requires modular lenses (ordered separately) designed for mounting heights between 8 and 40 feet
• UL and cUL Listed
• Country of Origin: China

Features

• Passive Infrared (PIR) sensor for occupancy detection
• Controls lighting based on occupancy to optimize energy use
• Modular design with interchangeable lenses for tailored coverage
• Compatible with industrial T5 or T8 fluorescent fixtures
• Snap-in mounting hardware for easy installation
• Adjustable sensitivity and time delay via DIP switches
• Suitable for cold environments with extended operating temperature range
• Recyclable ABS flame retardant, impact-resistant housing
• Five year warranty from manufacturer
