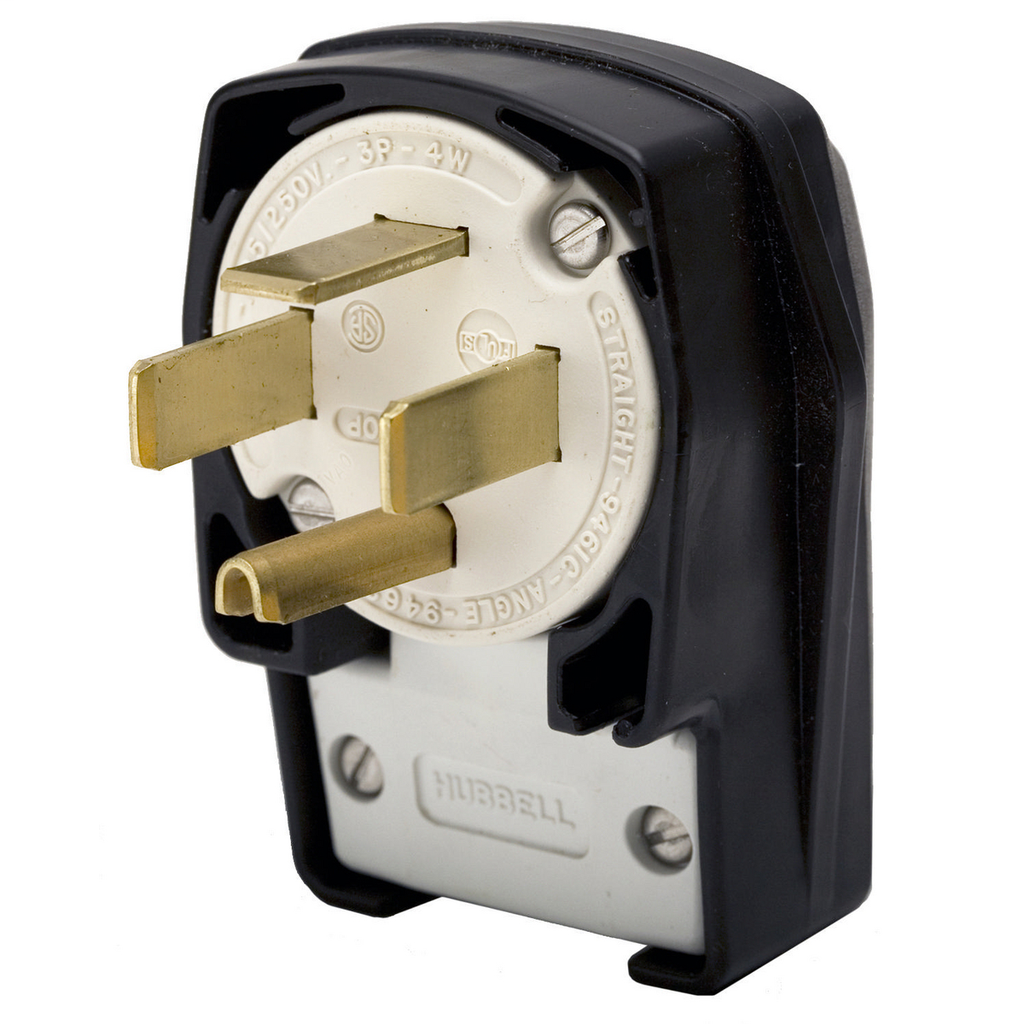

High Amp Devices HBL9462C Industrial Grade Plug

The High Amp Devices HBL9462C is a heavy-duty, angled straight blade male plug designed for industrial and commercial electrical applications. It supports 60 amperes at 125/250 volts with a 3-pole, 4-wire grounding configuration. Ideal for use by electrical distributors and lighting solutions providers requiring reliable wire and cable connections, this device is suitable for indoor dry environments unless additional protection is applied.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL9462C
• Application: Industrial/Commercial
• Current: 60 amperes
• Amperage Rating: 60 A
• Voltage Rating: 125/250V
• NEMA Rating: 14-60P
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire
• Material: Nylon
• Color: Black
• Mounting: Cord Mounted
• Cord Type: All Portable
• Connection: Terminal Screws
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry unless protected by additional means
• Product Weight: 0.85 lbs

Features

• Heavy-duty construction suitable for industrial and commercial grade applications
• Angled design for ease of connection in tight spaces
• 3-pole, 4-wire grounding configuration ensures safe and reliable power delivery
• Durable nylon housing for enhanced mechanical strength and resistance
• Terminal screw connections provide secure wiring attachment
• Compatible with cords ranging from 0.625" to 1.310" diameter
