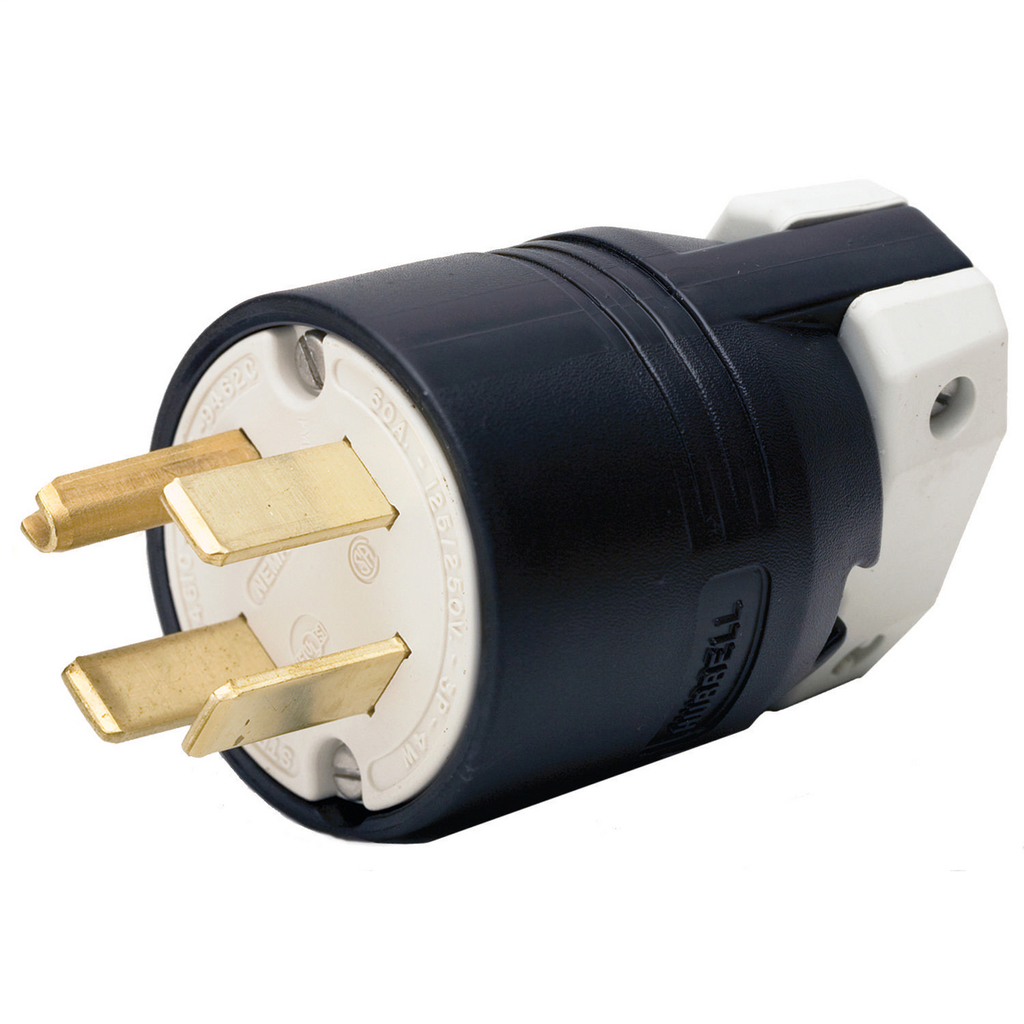

High Amp Devices HBL9461C Industrial Grade Male Plug

The High Amp Devices HBL9461C is a heavy-duty, straight blade male plug designed for industrial and commercial electrical applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections in demanding environments. This 3-pole, 4-wire grounding device supports 60 amperes at 125/250 volts, offering robust performance for portable cord applications.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL9461C
• Application: Industrial/Commercial
• Amperage Rating: 60 A
• Current: 60 amperes
• NEMA Rating: 14-60P
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire
• Mounting: Cord Mounted
• Cord Type: All Portable
• Connection: Terminal Screws
• Material: Nylon
• Color: Black
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry unless protected by additional means
• Product Weight: 0.8 lbs

Features

• Straight blade design for secure and reliable connections
• Heavy-duty construction suitable for industrial and commercial use
• Terminal screws provide durable and stable wire connections
• Compatible with a wide range of portable cords
• Designed to meet NEMA 14-60P standards for safety and performance
• Operating temperature range down to -40°C for versatile environments
