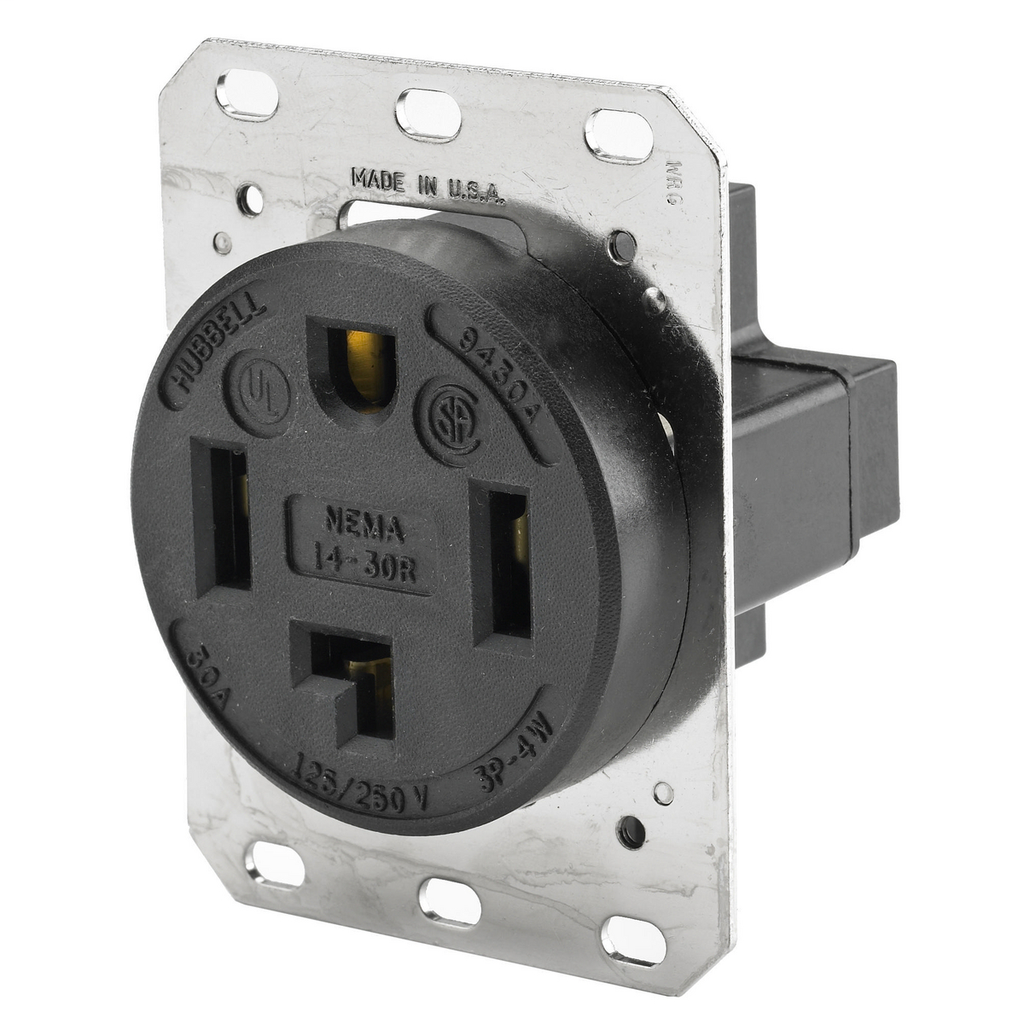

High Amp Devices HBL9430A Industrial Grade Receptacle

The High Amp Devices HBL9430A is a heavy-duty, industrial grade straight blade receptacle designed for electrical distributors and switchgear suppliers requiring reliable 30A, 125/250V power connections. This 3-pole, 4-wire grounding receptacle is suitable for indoor dry environments and is commonly used in lighting solutions, wire and cable installations, and other industrial electrical applications.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL9430A
• Application: Heavy Duty
• Amperage Rating: 30 A
• Current: 30 amperes
• Voltage: 125/250 V
• NEMA Rating: 14-30R
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire
• Number of Phases: 1
• Material: Thermoplastic/Composite
• Color: Black
• Mounting: Screw Mount
• Connection: Back and Side Wired Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 0.65 lbs

Features

• Industrial grade construction ensures durability in heavy-duty applications
• Back and side wired screw terminals allow flexible installation
• Thermoplastic/composite material provides electrical insulation and mechanical strength
• Designed for mounting in two-gang or larger outlet boxes
• Meets NEMA 14-30R standards for 3-pole, 4-wire grounding receptacles
• Withstands high dielectric voltage for enhanced safety
• Suitable for use with copper conductors rated 90ºC or higher insulation
