High Amp Devices HBL9395
SKU: #146166
Part: #HBL9395
UPC: 783585015552
High Amp Devices HBL9395
SKU: #146166
Part: #HBL9395
UPC: 783585015552
Description

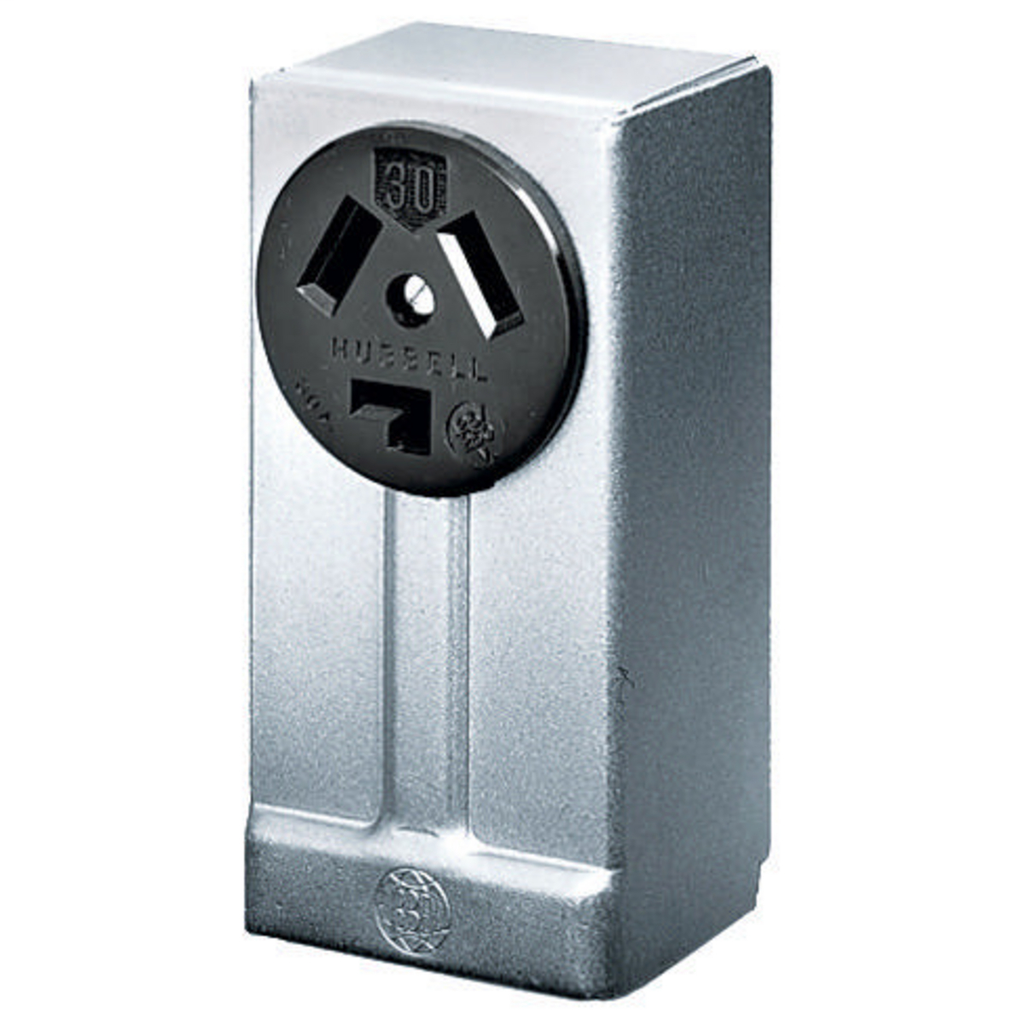

High Amp Devices HBL9395 - Industrial Grade Receptacle
The High Amp Devices HBL9395 is a heavy-duty, surface-mounted industrial grade receptacle designed for electrical distributors and switchgear suppliers requiring reliable 30A 125/250V power connections. This 3-pole, 3-wire non-grounding device is suitable for indoor dry environments unless protected by additional means, making it applicable in various lighting solutions and wire and cable installations.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL9395
- Application: Heavy Duty
- Amperage Rating: 30 A
- Current: 30 amperes
- NEMA Rating: 10-30R
- Number of Poles: 3-Pole
- Number of Wires: 3-Wire
- Number of Phases: 1
- Material: Thermoplastic/Composite
- Color: Black
- Mounting: Screw Mount
- Connection: Back and Side Wired Screw Terminals
- Dimensions (L x W x H): 5.06 in x 2.5 in x 2.06 in
- Product Weight: 0.85 lbs
- Operating Temperature: -40 degrees Celsius
- Dielectric Strength: Withstands 2,000V minimum
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
Features
- Surface mounted design for easy installation
- Industrial grade construction for durability and heavy-duty applications
- Non-grounding configuration suitable for specific wiring requirements
- Back and side wired screw terminals for flexible wiring options
- Thermoplastic/composite material provides electrical insulation and mechanical strength
- UL Listed NEMA 10-30R receptacle ensuring compliance with industry standards
