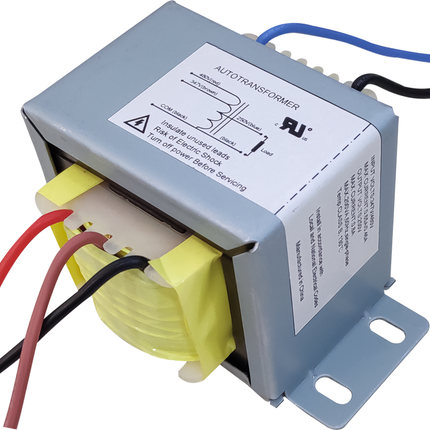

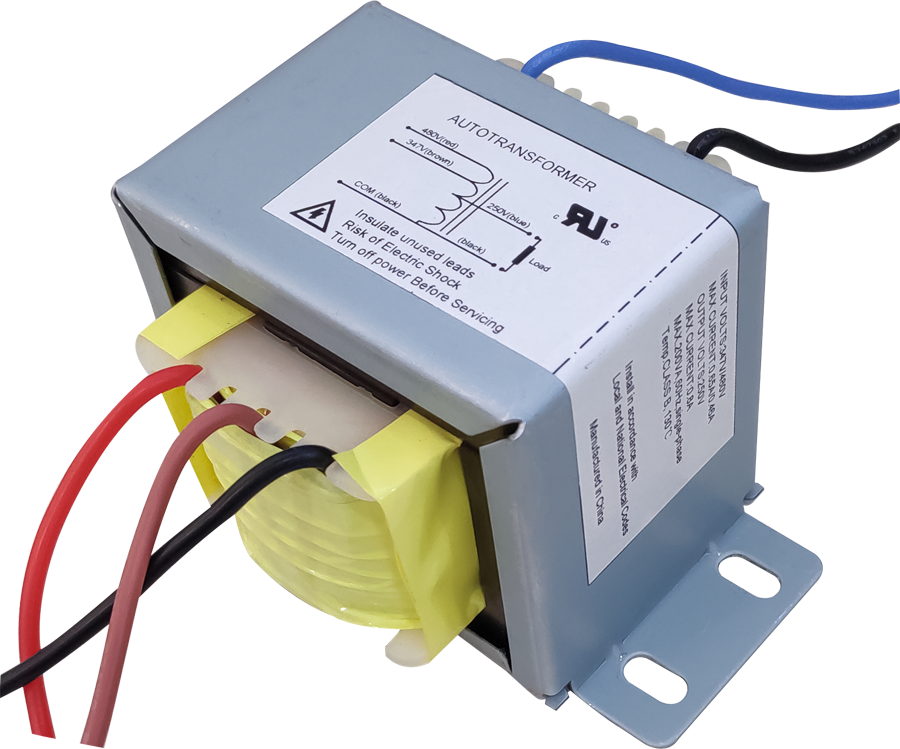

HID REPLACEMENTS XFMR200 Transformer 200W 480V

The HID REPLACEMENTS XFMR200 is a 200W autotransformer designed for step-down voltage applications, suitable for electrical distributors and lighting solutions requiring reliable voltage transformation from 480V to 250V. This transformer is intended for use in wire and cable systems and by switchgear suppliers needing efficient voltage conversion in industrial and commercial electrical installations.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: XFMR200-480-277
• Operating Frequency: 60 hertz
• Operating Temperature: -30 degrees Celsius
• Product Weight: 2.8420 lbs
• Dimensions (W x H x L): 2.99 in x 2.87 in x 4.06 in
• Input Voltage: 480V
• Output Voltage: 250V
• Maximum Load: 200VA
• Maximum Output Current: 0.8A

Features

• Step-down autotransformer for voltage conversion from 480V to 250V
• Compact size suitable for installation in tight electrical enclosures
• Designed for use with HID lighting replacements
• Meets National Electrical Code requirements when installed by qualified electricians
• Thermal insulation system rated for 105°C Class A
• Suitable for 3-phase Wye or grounded Delta power systems wiring configurations
• Durable construction with mounting provisions for secure installation
