HID-18-E26-850-BYP-PT LED HID Replacement Lamp

The HID-18-E26-850-BYP-PT is a high-efficiency LED replacement lamp designed for traditional Metal Halide or High Pressure Sodium HID fixtures. Suitable for use by electrical distributors and lighting solutions providers, this lamp features a standard E26 base and a post top bulb shape with a 360-degree beam angle, making it ideal for outdoor lighting applications in open or enclosed fixtures. It operates directly on line voltage with an integral driver, eliminating the need for an external ballast, and supports ballast bypass installation (Type B). This product is well-suited for wire and cable suppliers and switchgear suppliers seeking reliable, energy-efficient lighting components.

Specifications

• Product Name: HID-18-E26-850-BYP-PT
• Lumens: 2,600 lumens
• Efficacy: 144 lumens per watt
• Base Type: E26
• Beam Angle: 360 degrees
• Bulb Shape: Post Top
• Input Voltage: 100-277 volts
• Color Temperature: 5000 kelvins (Daylight)
• Color Accuracy (CRI): 80
• Operating Frequency: 50/60 hertz
• Operating Temperature Range: -30°C to 60°C
• Power Factor: 0.9
• Input Wattage: 18 watts
• Replacement Equivalency: 75W HID
• Product Weight: 0.7 lbs

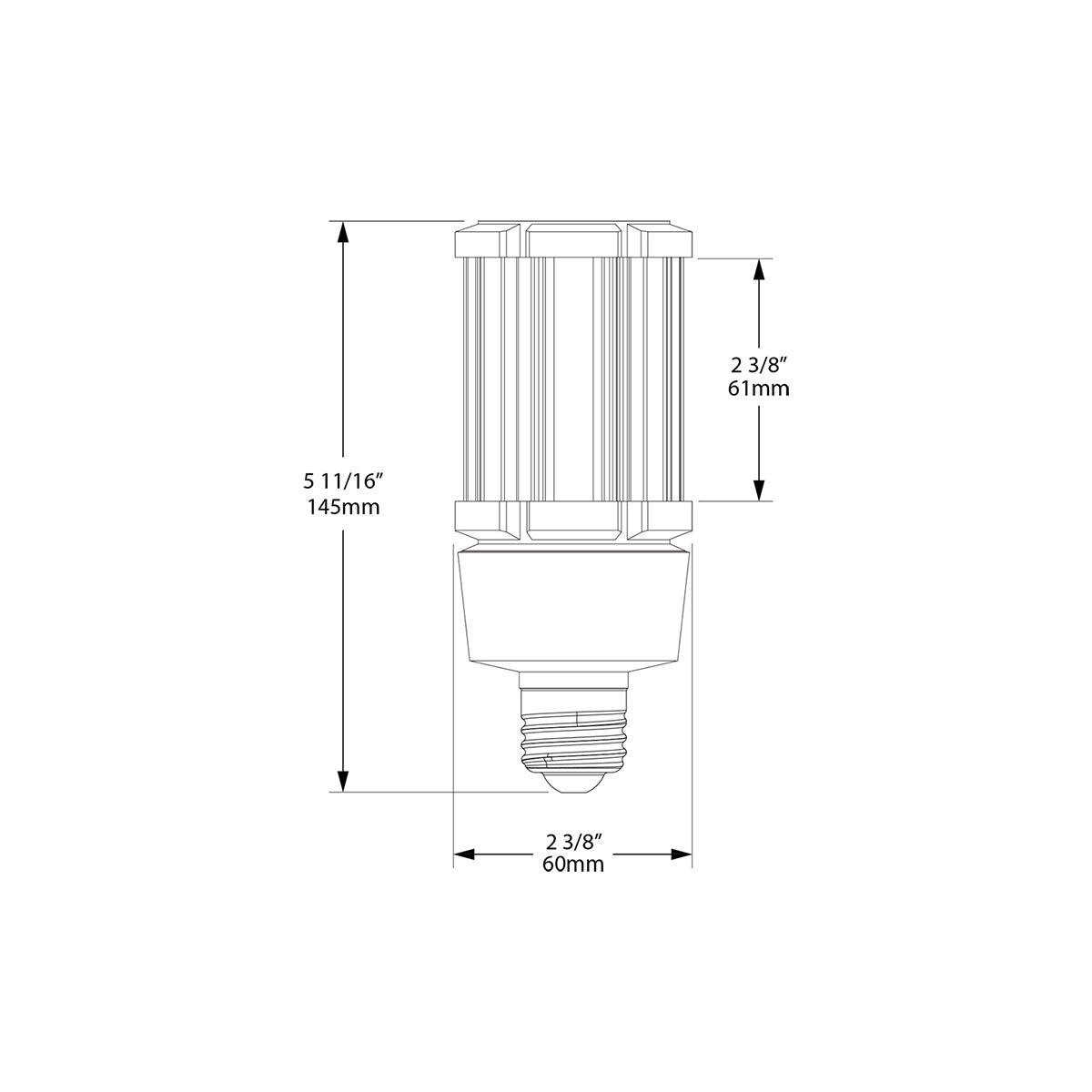

• Dimensions: 5 11/16" (145mm) height x 2 3/8" (60mm) diameter

Features

• Replacement for traditional Metal Halide or High Pressure Sodium HID lamps
• Integral driver for direct wiring to line voltage without external ballast
• Active cooling with internal sensor to reduce output to 70% during overheating
• Rated for use in enclosed and open fixtures, suitable for dry or damp locations
• 4kV surge protection built in
• 50,000-hour rated lifespan (L70)
• Environmentally friendly with no mercury content
• UL Listed and UL Classified for safety compliance
• Non-dimmable
• Type B ballast bypass installation with universal orientation
• Low total harmonic distortion (THD less than 20%) and flicker under 30%
• 5-year manufacturer warranty covering light output, color stability, driver performance, and finish
