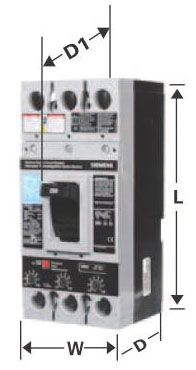

HFD63B100, Molded Case Circuit Breaker

Siemens
SKU #313455Part #HFD63B100UPC 783643211797

HFD63B100, Molded Case Circuit Breaker

Siemens
SKU #313455Part #HFD63B100UPC 783643211797

Product form

Out of stock, Call 1-866-853-4768 for availability and price. Most out of stock items can be ordered and are usually available to ship in 1-3 business days.

Product Substitutes

Description

Features

Low Voltage Molded Case Circuit Breaker
RoHS Compliant

Additional Information

Reach/WEEE Compliant
Label Color Black
Application Type Standard 40 Deg C Breaker
Applicable Standard IEC 60947-2

Specifications

Type: Molded Case, Thermal Magnetic, Low Voltage, High Breaking Capacity
Frame Type: FD
Voltage Rating: 600 Volt AC 50/60 Hertz, 500 Volt DC
Maximum AC Voltage Rating: 600 Volt
Maximum DC Voltage Rating: 500 Volt
Current Rating: 100 Amp at 40 Deg C
Number of Poles: 3
Interrupting Rating: 25 Kiloamp at 600 Volt AC, 25 Kiloamp at 500 Volt DC (UL)
Terminal Type: Load Side Lug
Size: 4.5 Inch Width x 5.25 Inch Depth x 9.5 Inch Height
Approval: UL 489
Series/Model: HFD6

Downloads

Catalog
Installation/Operator
Brochure
Other 1

More Information

Manufacturer Catalog Number

HFD63B100

Weight

.0220

Length

9.5

Width

4.5

Height

4 in

Material

N/A

Current

100 amperes

Enclosure

Varying

Frame

FD

Interrupt Rating

25KAIC

Number Of Poles

3

Operating Temperature

40C

Product Size

4.5 inches

Trip Type

Thermal-Magnetic

Type

HFD6

Voltage

50/60 hertz
