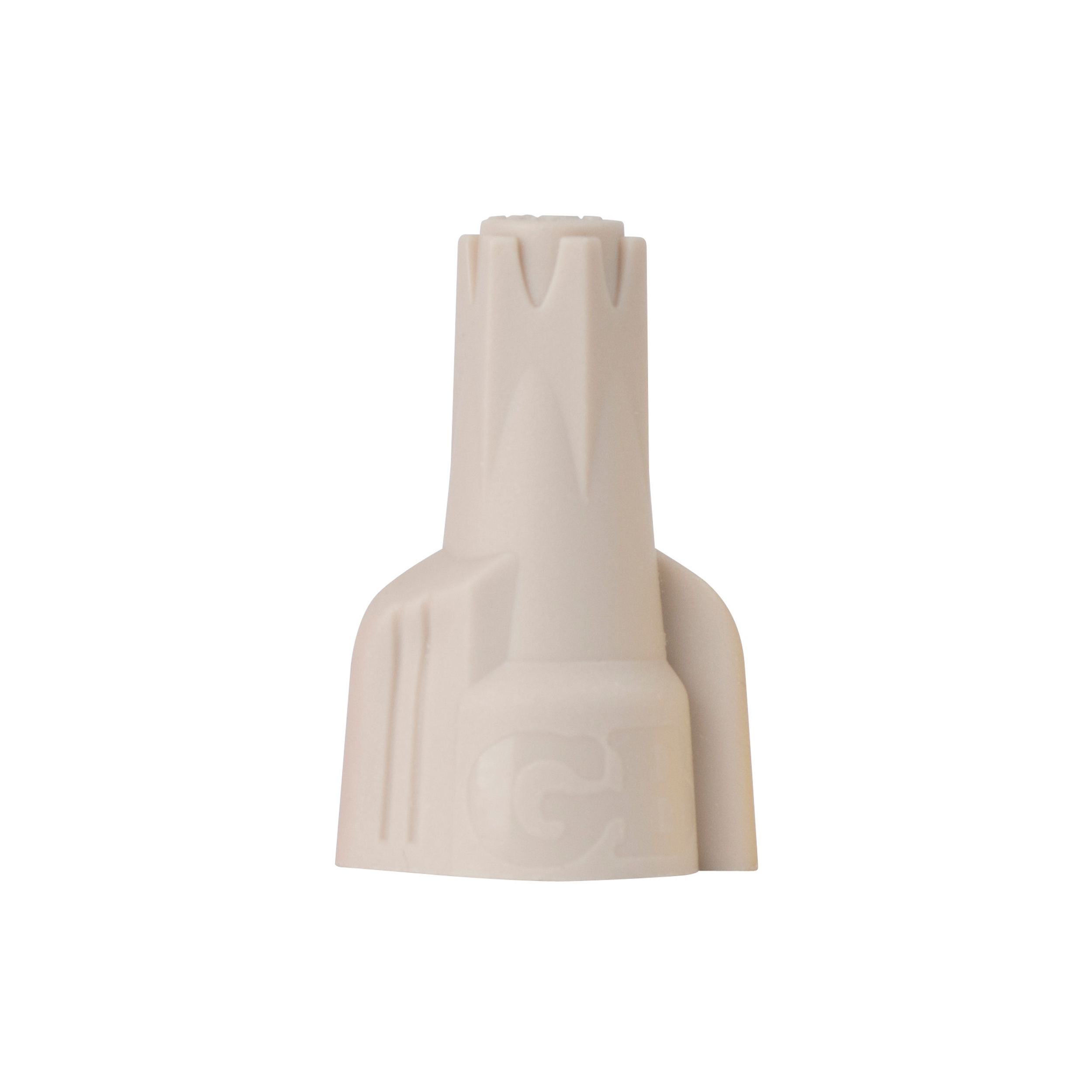

Hex-Lok ULTRA, Hex Head Multi-Range Winged Twist-On Wire Connectors with Over-Torque Protection, Tan, #22-#8 AWG (8 mm²); 100/Crtn
SKU: #23724
Part: #10-1H1
UPC: 032076024703
Hex-Lok ULTRA, Hex Head Multi-Range Winged Twist-On Wire Connectors with Over-Torque Protection, Tan, #22-#8 AWG (8 mm²); 100/Crtn
SKU: #23724
Part: #10-1H1
UPC: 032076024703
Next day delivery
Description
Hex-Lok ULTRA Hex Head Multi-Range Winged Twist-On Wire Connectors with Over-Torque Protection
The Hex-Lok ULTRA connectors by Gardner Bender are multi-range, hex-head copper-to-copper wire connectors designed to cover 95% of everyday wire connection applications. Ideal for electrical distributors and lighting solutions providers, these connectors ensure secure and reliable wire connections for various applications including large appliances, timers, indoor lighting, switches, ballasts, junction boxes, and air conditioners. Their patented hex-head design prevents over-torquing, protecting both wires and installers during use.
Specifications
- Wire Range: #22 - #8 AWG (8 mm²)
- Voltage Rating: 600 V Max. building wire, 1000 V Max. lighting fixtures/luminaries and signs
- Color: Tan
- Pack Quantity: 100 per carton
- Product Weight: 5.3 oz
- Manufacturer Part #: 10-1H1
Features
- Patented hex-head design strips out at UL torque to prevent over-torquing
- Zinc-plated square wire spring ensures secure, corrosion-resistant connection
- Thermoplastic shell provides long-lasting strength and chemical resistance
- Deep skirt supports smooth wire entry and full coverage of stripped wires
- Multi-range compatibility covers the majority of wire connection needs
