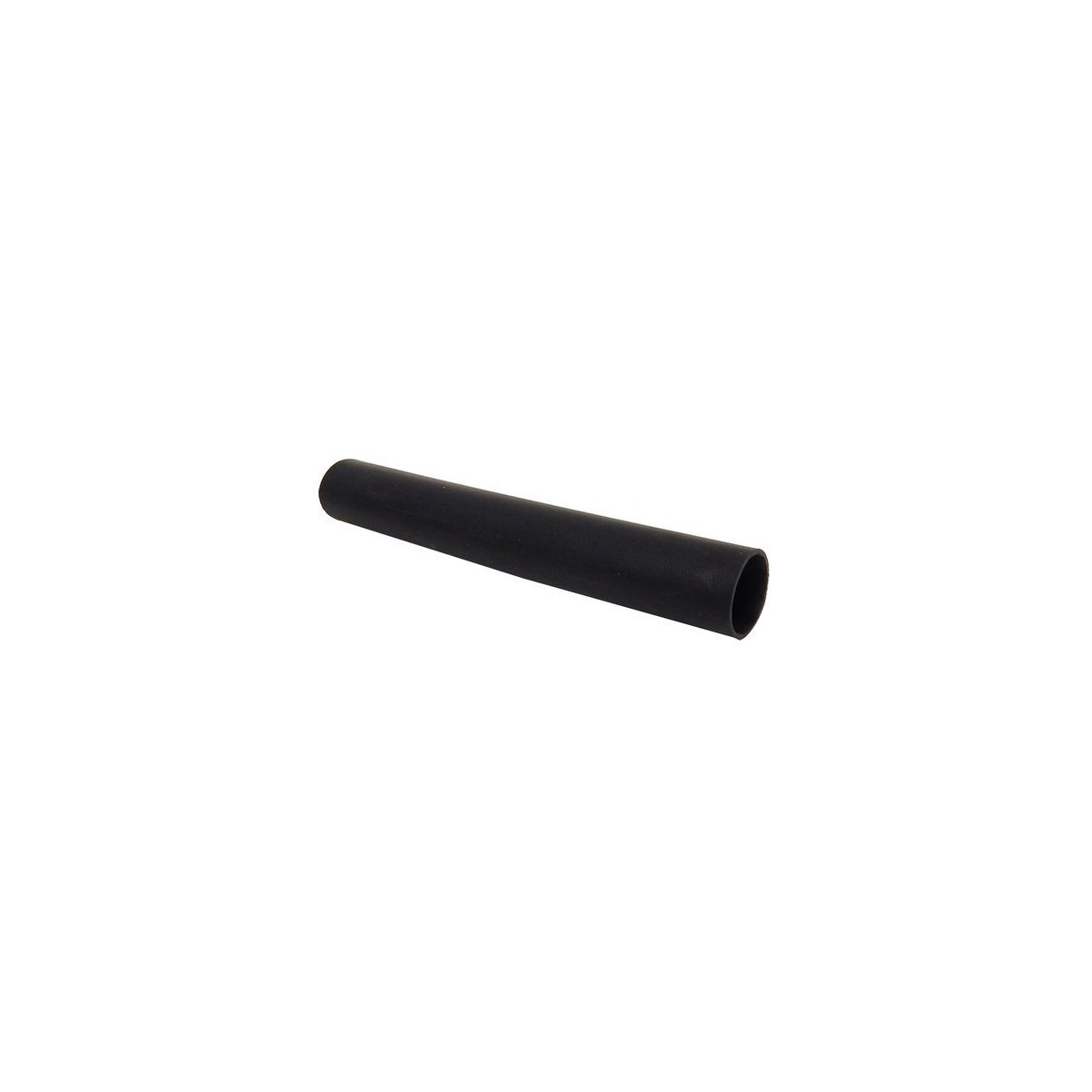

Heavy Wall Heat Shrink Tubing Flame Retardant 48” .750"-.240" 6-2 AWG

This heavy wall heat shrink tubing is designed for electrical insulation and protection in wire and cable applications. Manufactured from polyolefin, it provides flame retardant properties suitable for use by electrical distributors and switchgear suppliers requiring reliable insulation solutions. The tubing is ideal for general use in electrical systems, offering protection for conductor sizes from 6 to 2 AWG with a length of 48 inches.

Specifications

• Material: Polyolefin
• Length: 48 in
• Product Weight: 0.4500 lbs
• Manufacturer: Morris Products
• Manufacturer Part #: 68023
• UPC: 601986680233
• Application Range: 6-2 AWG conductor size
• Expanded Diameter (max): 0.75 in
• Recovered Diameter (min): 0.24 in
• Wall Thickness (nominal): 0.09 in
• Voltage Rating: 600/1000V single conductor
• Standards: UL486D, CSA C22.2 No. 198.2, ANSI C119.1, MIL-DTL-23053/15, IEEE 383 Vertical Flame Test

Features

• Flame retardant polyolefin construction
• High tensile strength of 2100 psi
• Elongation up to 600% ensuring flexibility
• Heat shock resistance with no cracking or flowing at 225°C
• Low temperature flexibility to -55°C without cracking or splitting
• Excellent fluid resistance and no copper corrosion
• Adhesive inner lining with strong peel strength for secure sealing
• Water penetration resistant after prolonged immersion
