Morris Products

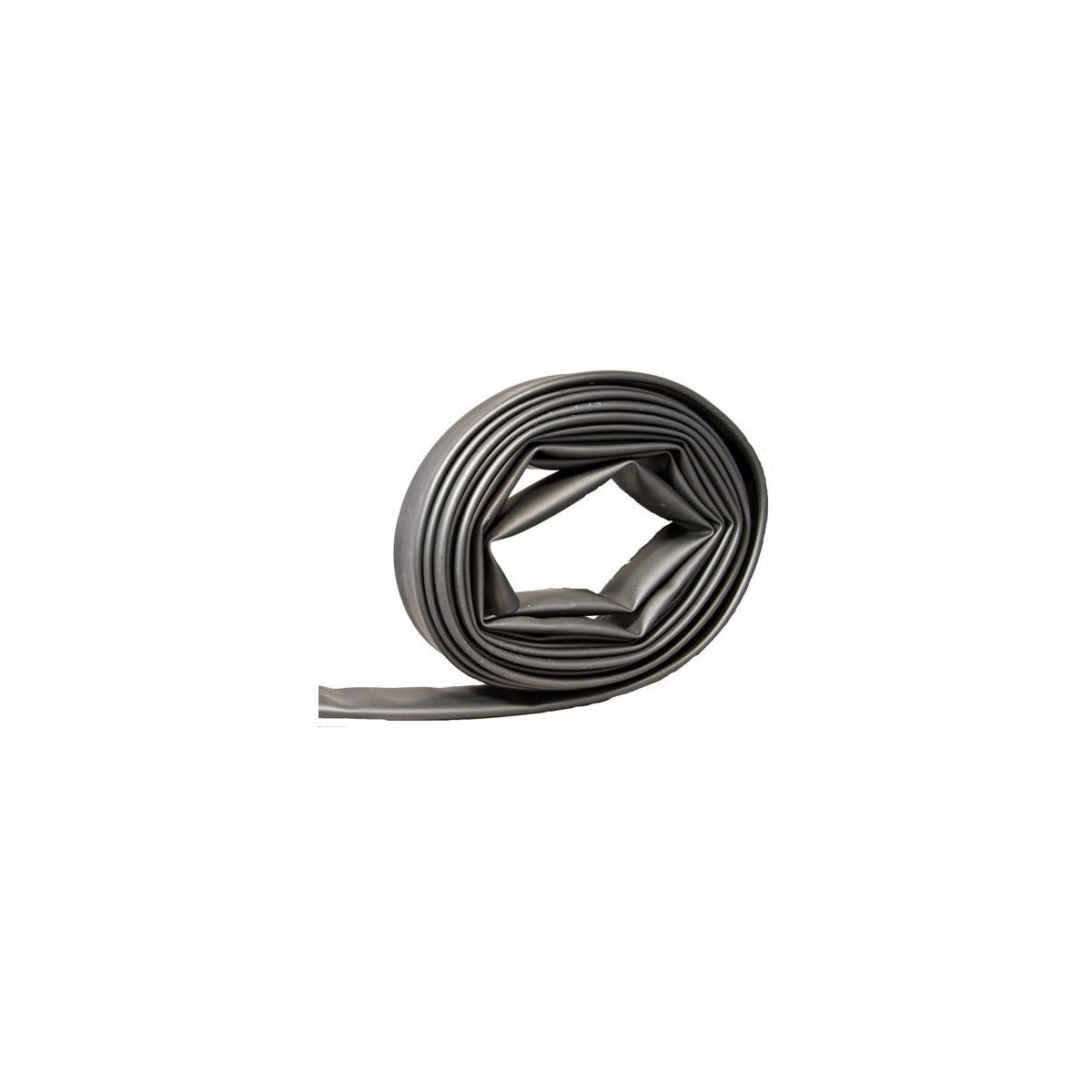

Heavy Wall Heat Shrink Tubing 25' .750"-.240" #6-#2AWG
SKU: #274511
Part: #68186
UPC: 601986681865
Morris Products
Heavy Wall Heat Shrink Tubing 25' .750"-.240" #6-#2AWG
SKU: #274511
Part: #68186
UPC: 601986681865
Description
Heavy Wall Heat Shrink Tubing 25' .750"-.240" #6-#2AWG for Electrical Insulation
This heavy wall heat shrink tubing is designed for reliable insulation and protection of cable joints and terminations in demanding electrical and mechanical applications. Manufactured from durable polyolefin, it provides high impact, abrasion, corrosion, and chemical resistance. Suitable for use in underground, submersible, and direct burial installations, it meets rigorous standards for continuous operating temperatures and voltage ratings, making it a dependable choice for electrical distributors and switchgear suppliers.
Specifications
- Length: 25 ft
- Material: Polyolefin
- Cable Range: #6 to #2 AWG
- Diameter Before Shrinking: 0.75 inches
- Diameter After Shrinking: 0.24 inches
- Wall Thickness: 0.09 inches
- Operating Voltage: Rated for 600-2500V
- Continuous Operating Temperature: -67°F to 230°F (-55°C to 110°C)
- Shrink Temperature: 248°F (120°C)
- Color: Black
- Manufacturer: Morris Products
- Manufacturer Part Number: 68186
- Product Weight: 1.8 lbs
Features
- Provides maximum reliability for insulating and protecting cable joints and terminations
- Withstands severe mechanical requirements of underground residential distribution (U.R.D.), submersible, and direct burial installations
- High resistance to impact, abrasion, corrosion, and chemicals
- Thermoplastic adhesive liner on 4’ lengths provides complete environmental protection and insulation
- Heavy wall construction offers better mechanical strength and underground protection compared to medium wall tubing
- Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guide Numbers 2.4 and 2.5, ICEA, and NEMA insulation thickness requirements
