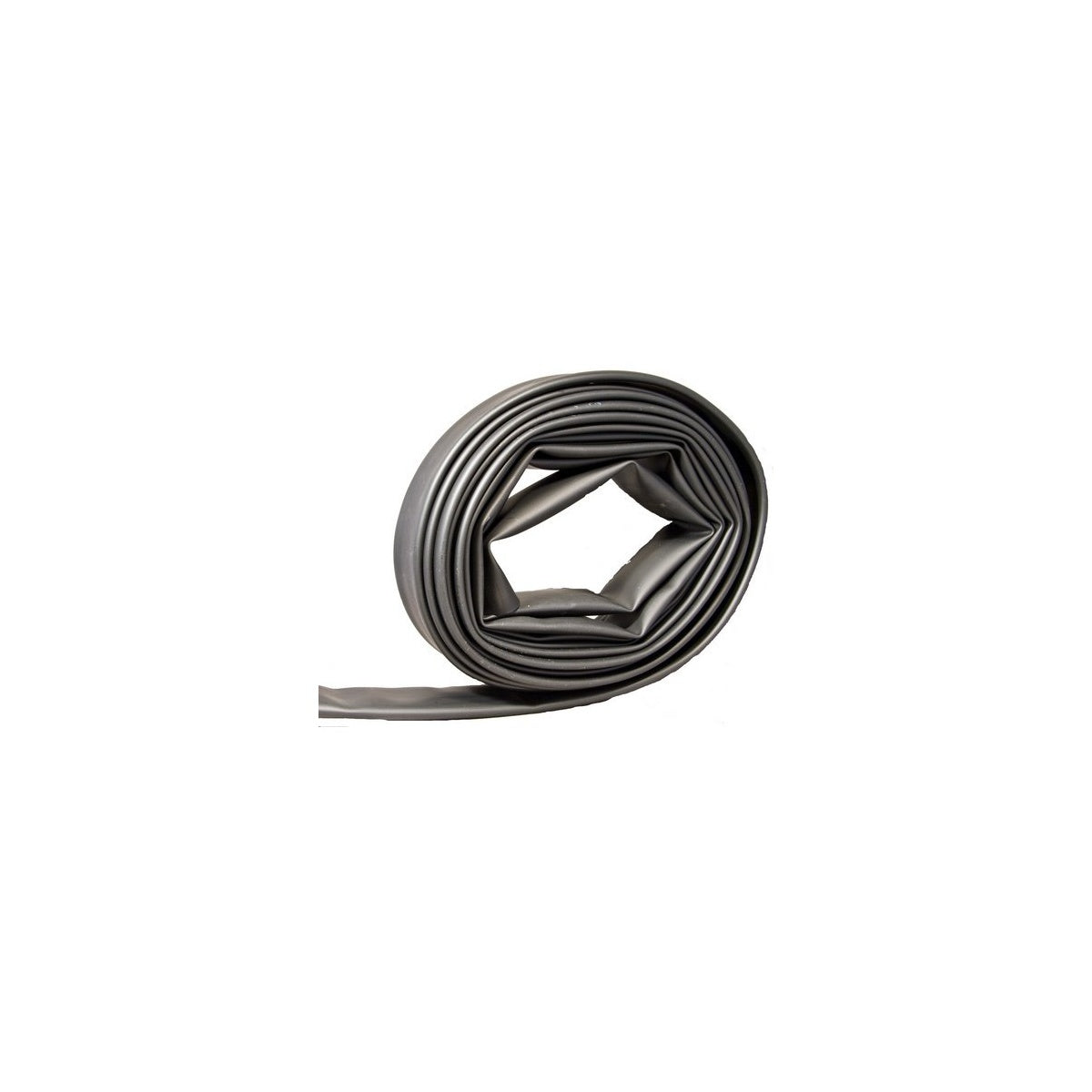

Heavy Wall Heat Shrink Tubing 25' .350"-.120" #14-#10AWG – Heat Shrink Tubing

This heavy wall heat shrink tubing is designed for reliable insulation and protection of cable joints and terminations in electrical applications. Manufactured by Morris Products, it is suitable for use by electrical distributors, lighting solution providers, and wire and cable suppliers requiring durable tubing for low voltage installations. It offers superior mechanical strength and environmental protection, making it ideal for underground, submersible, and direct burial applications.

Specifications

• Material: Polyolefin
• Length: 25 ft
• Cable Range: #14 to #10 AWG
• Diameter Before Shrinking: 0.35"
• Diameter After Shrinking: 0.12"
• Wall Thickness: 0.07"
• Product Weight: 1.5 lbs
• Manufacturer Part #: 68182
• Operating Temperature: -67°F to 230°F (-55°C to 110°C)
• Shrink Temperature: 248°F (120°C)
• Voltage Rating: 600-2500V
• Color: Black
• Certifications: UL 486D, CSA C22.2 No. 198.2, ANSI C119.1

Features

• Provides maximum reliability for insulating and protecting cable joints and terminations
• Withstands severe mechanical requirements of underground residential distribution (U.R.D.), submersible, and direct burial installations
• High impact, abrasion, corrosion, and chemical resistance
• Thermoplastic adhesive liner for complete environmental protection and insulation
• Heavy wall construction offers better mechanical strength and underground protection compared to medium wall tubing
• Continuous use rated up to 90°C

Downloads & Links

• Spec Sheet
