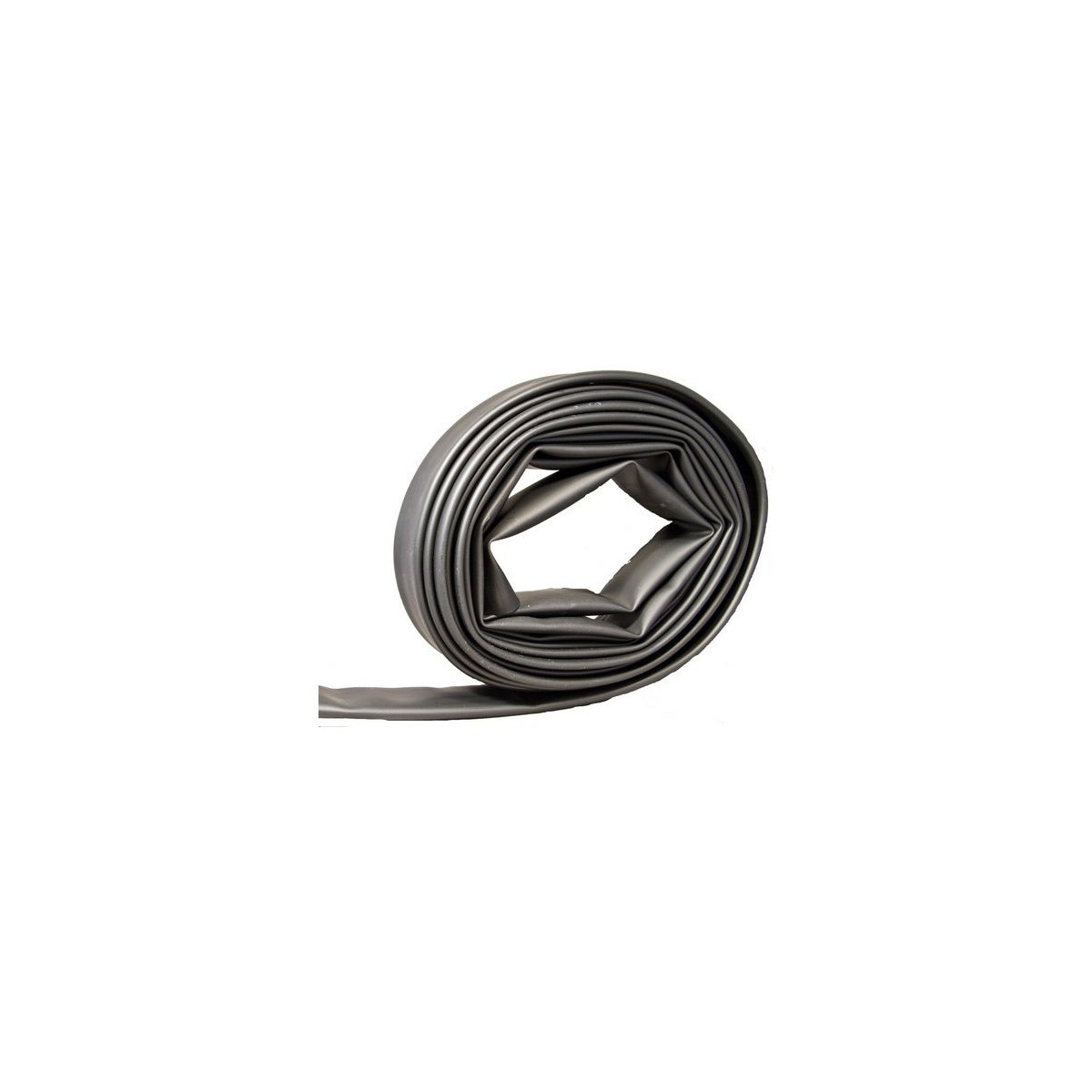

Heavy Wall Heat Shrink Tubing 25' 3.54"-1.18" 800-1250MCM

This heavy wall heat shrink tubing is designed for reliable insulation and protection of cable joints and terminations in demanding electrical applications. Manufactured from durable polyolefin, it offers high impact, abrasion, corrosion, and chemical resistance, making it suitable for use in underground, submersible, and direct burial installations. This product is ideal for electrical distributors and wire and cable suppliers requiring robust protection solutions for medium to large conductor sizes.

Specifications

• Length: 25 ft
• Material: Polyolefin
• Cable Range: 800-1250 MCM
• Diameter Before Shrinking: 3.54 inches
• Diameter After Shrinking: 1.18 inches
• Wall Thickness: 0.16 inches
• Operating Voltage Rating: 600-2500 V
• Continuous Operating Temperature: -67°F to 230°F (-55°C to 110°C)
• Shrink Temperature: 248°F (120°C)
• Color: Black
• Manufacturer Part #: 68196

Features

• Provides maximum reliability for insulating and protecting cable joints and terminations
• Withstands severe mechanical requirements of underground residential distribution (U.R.D.), submersible, and direct burial installations
• High resistance to impact, abrasion, corrosion, and chemicals
• Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guide Numbers 2.4 and 2.5, ICEA, and NEMA insulation thickness requirements
• Heavy wall construction offers superior mechanical strength and underground protection compared to medium wall tubing
