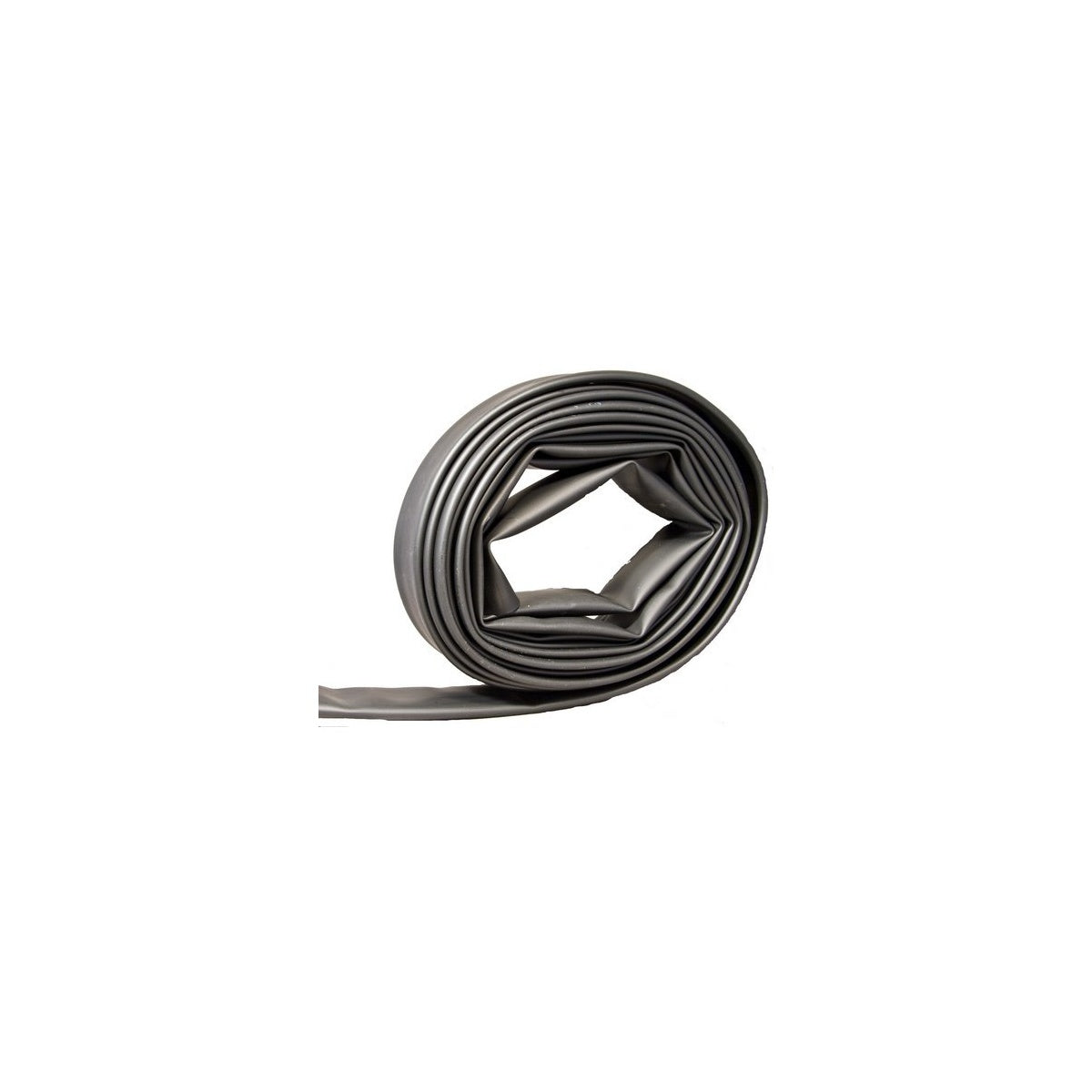

Heavy Wall Heat Shrink Tubing 25' 2.70"-.870" 600-1000MCM

This heavy wall heat shrink tubing is designed for insulating and protecting cable joints and terminations in demanding electrical applications. Suitable for use by electrical distributors and switchgear suppliers, it offers high impact, abrasion, corrosion, and chemical resistance, making it ideal for underground, submersible, and direct burial installations. The tubing is made from polyolefin and rated for 600-2500V continuous use at temperatures up to 90°C (194°F), supporting reliable performance in wire and cable management and lighting solutions.

Specifications

• Length: 25 ft
• Material: Polyolefin
• Cable Range: 600-1000 MCM
• Diameter Before Shrinking: 2.70"
• Diameter After Shrinking: 0.87"
• Wall Thickness: 0.16"
• Operating Temperature: -67°F to 230°F (-55°C to 110°C)
• Shrink Temperature: 248°F (120°C)
• Voltage Rating: 600-2500V
• Color: Black
• Product Weight: 8.85 lbs
• Manufacturer: Morris Products
• Manufacturer Part #: 68194

Features

• Maximum reliability for insulating and protecting cable joints and terminations
• Withstands severe mechanical requirements of underground residential distribution (U.R.D.), submersible, and direct burial installations
• High resistance to impact, abrasion, corrosion, and chemicals
• Thermoplastic adhesive liner provides complete environmental protection and insulation
• Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guide Numbers 2.4 and 2.5, ICEA, and NEMA insulation thickness requirements
• Heavy wall construction offers superior mechanical strength and underground protection compared to medium wall tubing
