Features

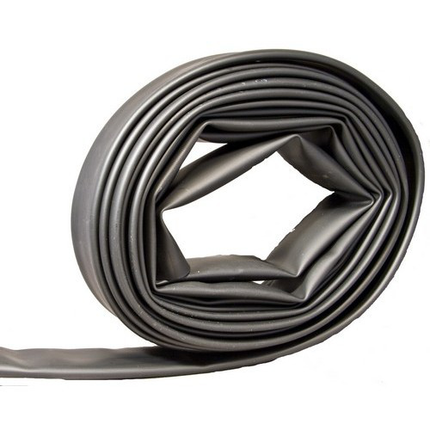

• High voltage heat shrink tubing provides maximum reliability for insulating and protection of cable joints and terminations
• Withstands severe mechanical requirements of U.R.D., submersible and direct burial installations
• High impact, abrasion, corrosion and chemical resistance
• Rated for 600-2500V
• 4’ Lengths and Rolls have Thermoplastic Adhesive Liner provides complete environmental protection and insulation
• Heat shrink tubing meets: UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guide Numbers 2.4, 2.5, ICEA and NEMA insulation thickness requirements
• Provides Complete Environmental Protection
• Heavy Wall holds better mechanically & has better underground protection than medium wall
• Black color

Specifications

• Continuous operating temperatureerature: -67°F to 230°F (-55°C to 110°C)
• Shrink temperatureerature: 248°F (120°C)
• Cable Range: 250-500MCM
• Length: 25 ft
• Diameter Before Shrinking: 2.00”
• Diameter After Shrinking: 0.63”
• Wall Thickness: .16”
