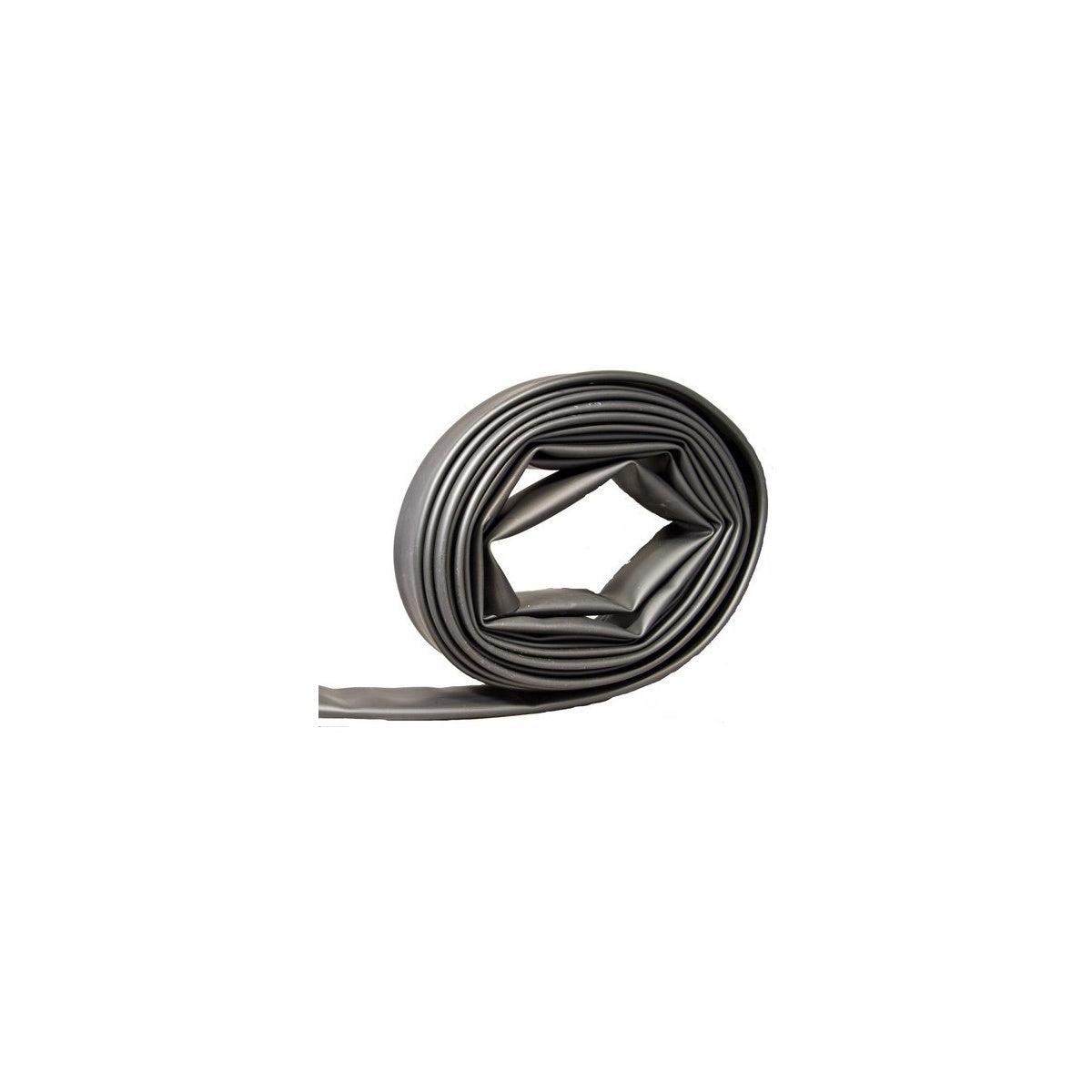

Heavy Wall Heat Shrink Tubing 25' 2.00"-.630" 250-500MCM – Heat Shrink Tubing for Electrical Insulation

This Heavy Wall Heat Shrink Tubing by Morris Products is designed for reliable insulation and protection of cable joints and terminations in demanding electrical applications. Suitable for use by electrical distributors and wire and cable suppliers, it meets the mechanical and environmental requirements of underground residential distribution (U.R.D.), submersible, and direct burial installations. The tubing provides high resistance to impact, abrasion, corrosion, and chemicals, making it an essential component in lighting solutions and switchgear supply chains where durable cable protection is critical.

Specifications

• Material: Polyolefin
• Length: 25 ft
• Cable Range: 250-500 MCM
• Diameter Before Shrinking: 2.00"
• Diameter After Shrinking: 0.63"
• Wall Thickness: 0.16"
• Continuous Operating Temperature: -67°F to 230°F (-55°C to 110°C)
• Shrink Temperature: 248°F (120°C)
• Voltage Rating: 600-2500V
• Color: Black
• Product Weight: 6.9 lbs
• Manufacturer: Morris Products
• Manufacturer Part Number: 68192
• Certifications: UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guide Numbers 2.4, 2.5, ICEA, NEMA insulation thickness requirements

Features

• Provides maximum reliability for insulating and protecting cable joints and terminations
• Withstands severe mechanical requirements of U.R.D., submersible, and direct burial installations
• High impact, abrasion, corrosion, and chemical resistance
• Thermoplastic adhesive liner provides complete environmental protection and insulation
• Heavy wall construction offers better mechanical strength and underground protection than medium wall tubing

Downloads & Links

• Spec Sheet
