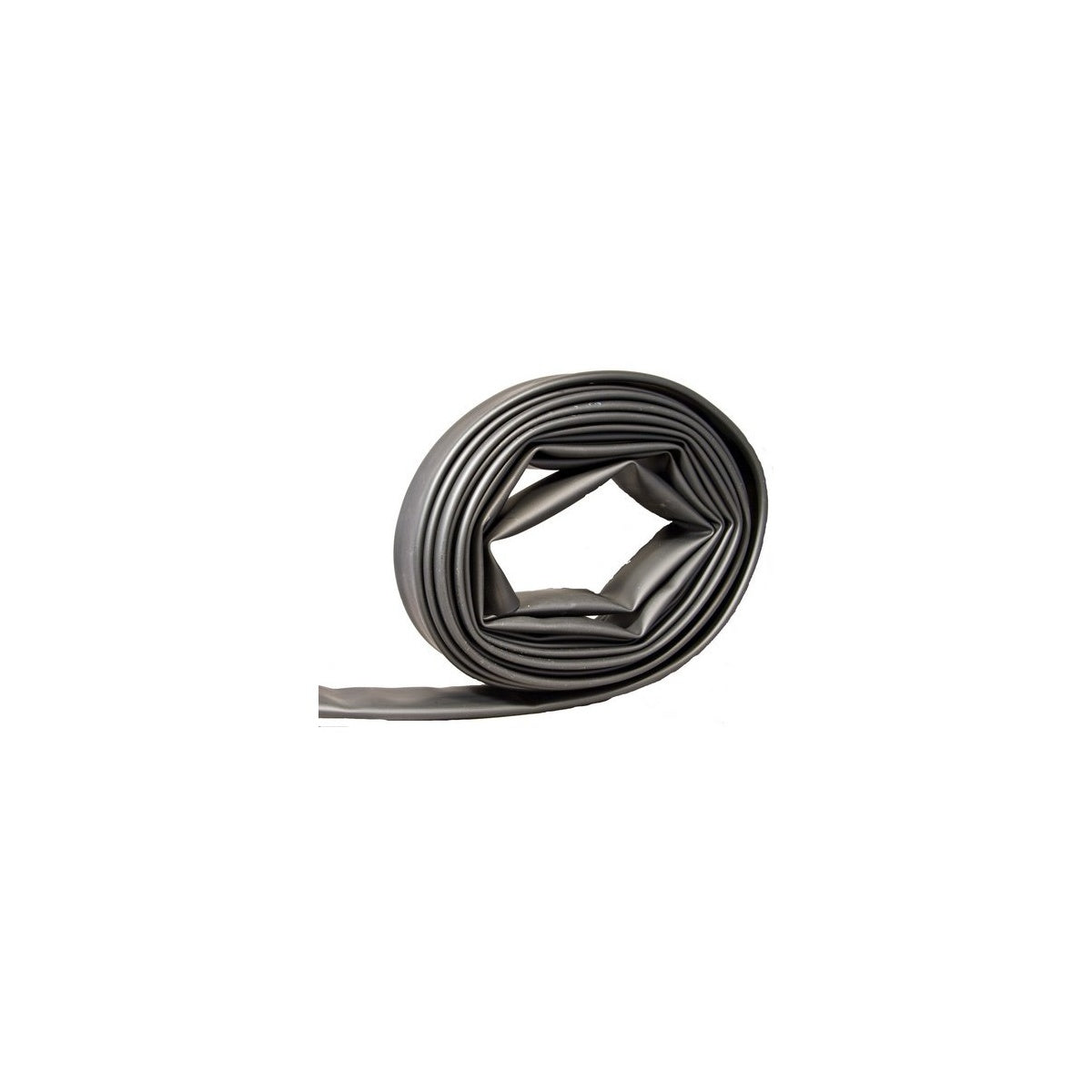

Heavy Wall Heat Shrink Tubing 25' 1.50"-.470" 2/0-350MCM

This heavy wall heat shrink tubing by Morris Products provides reliable insulation and protection for cable joints and terminations in demanding electrical applications. Designed for use by electrical distributors and lighting solutions providers, this tubing is suitable for wire and cable management in underground, submersible, and direct burial installations. It offers high resistance to impact, abrasion, corrosion, and chemicals, making it ideal for harsh environments.

Specifications

• Manufacturer: Morris Products
• Manufacturer Part #: 68190
• Material: Polyolefin
• Length: 25 ft
• Diameter Before Shrinking: 1.50"
• Diameter After Shrinking: 0.47"
• Cable Range: 2/0-350 MCM
• Wall Thickness: 0.16"
• Operating Voltage: Rated for 600-2500V
• Continuous Operating Temperature: -67°F to 230°F (-55°C to 110°C)
• Shrink Temperature: 248°F (120°C)
• Color: Black
• Product Weight: 6.0 lbs

Features

• Maximum reliability for insulating and protecting cable joints and terminations
• Withstands severe mechanical requirements of underground residential distribution (U.R.D.), submersible, and direct burial installations
• High resistance to impact, abrasion, corrosion, and chemical exposure
• Thermoplastic adhesive liner provides complete environmental protection and insulation
• Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guide Numbers 2.4 and 2.5, ICEA, and NEMA insulation thickness requirements
• Heavy wall construction offers superior mechanical strength and underground protection compared to medium wall tubing

Downloads & Links

• Spec Sheet
