Features

• Insulgrip® Style Housing for Superior Gripping
• Non-Conductive Retaining Screw locks contacts in place
• Large Raised Alignment Arrow aids in the mating of devices

Specifications

• Country of Origin: China
• Current / Amperage Rating: 400 A
• Width: 7.500 in
• Each - Width: 7.500 in
• Industry Standard(s): National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
• Performance: Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - 2/0 to 4/0 AWG
• Amperage Rating: 400 A
• Color: Red
• Standard: National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
• Type: Plugs
• Voltage Rating Description: 600V AC/DC
• Style: Male
• Class Code: A12

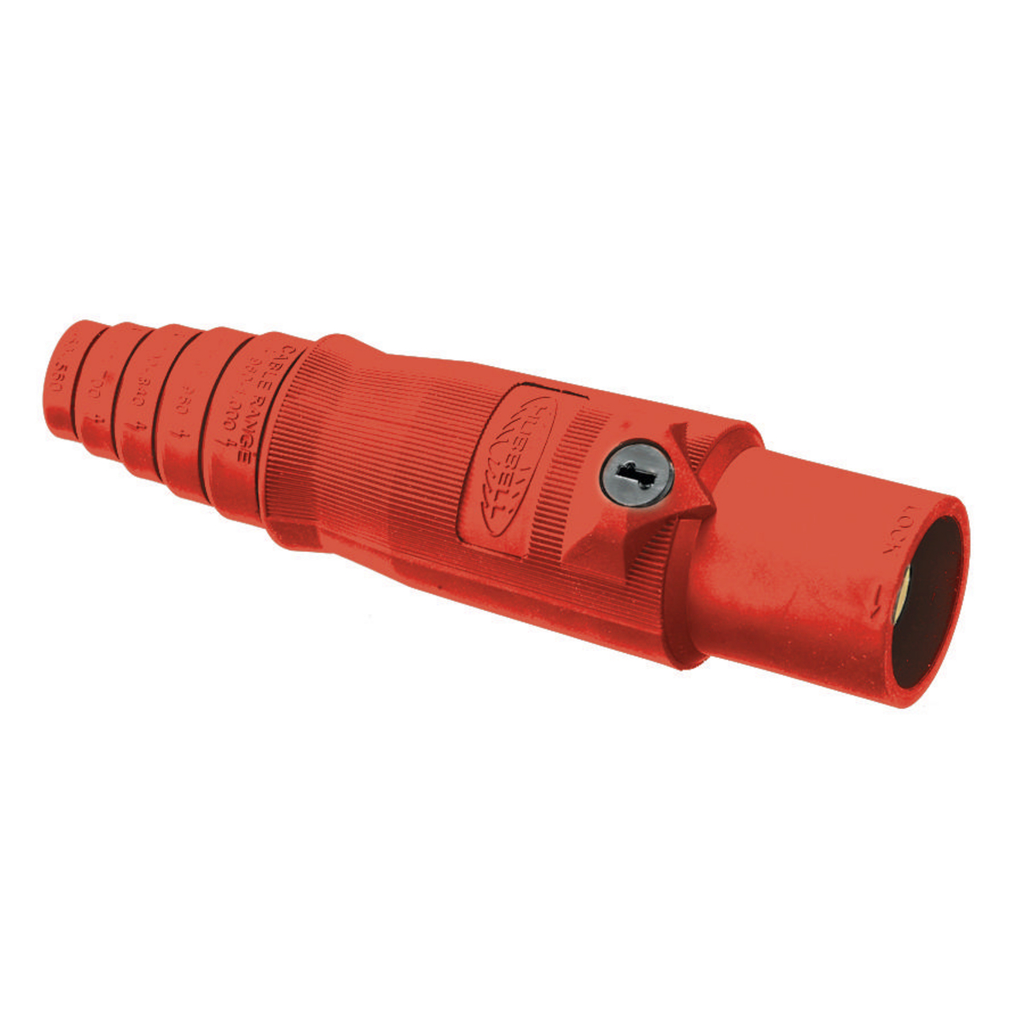

• Description - Invoice: SINGLEPOLE, 400A MALE PLUG, RED
• Freight Class Code: 06168002
• Harmonization Code: 8536698000
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: HBL400PTR
• Sub Class Code: A12A220
• Series: Series 16
• Base Unit of Measure: EA
• BOX SIZE: 9.200x14.800x12.400 (in)
• Carton - Gross Weight per Pack: 8.500 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585112312
• Carton - Total Units: 10 EA
• Case - Total Units: 100 EA
• Case Weight: 10.171 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 46.000 in
• Pallet Length: 48.000 in
• Pallet Weight: 1920.000 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
